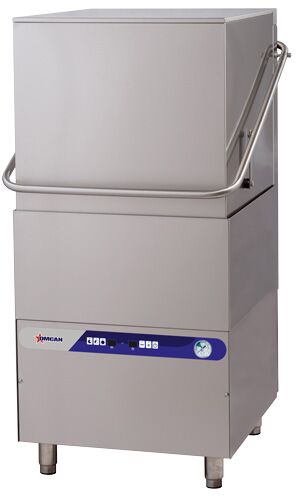

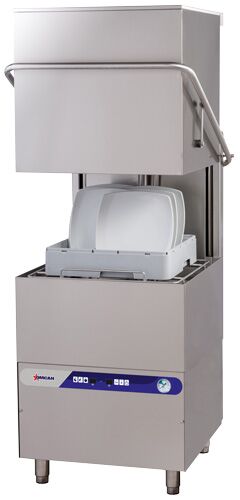

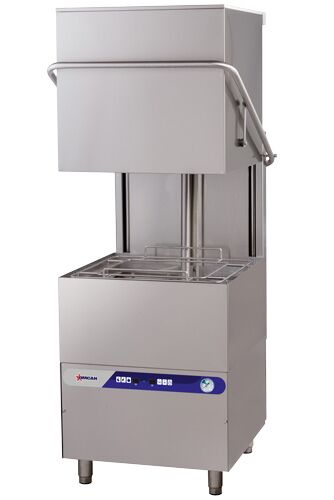

Maintaining clean dishes is important for any foodservice operation. Omcan digital control dishwashers, you can assure that you can keep up with the demands for your operation. Our dishwashers come with dish racks for convenience. Our units also provide ease of use for operators.

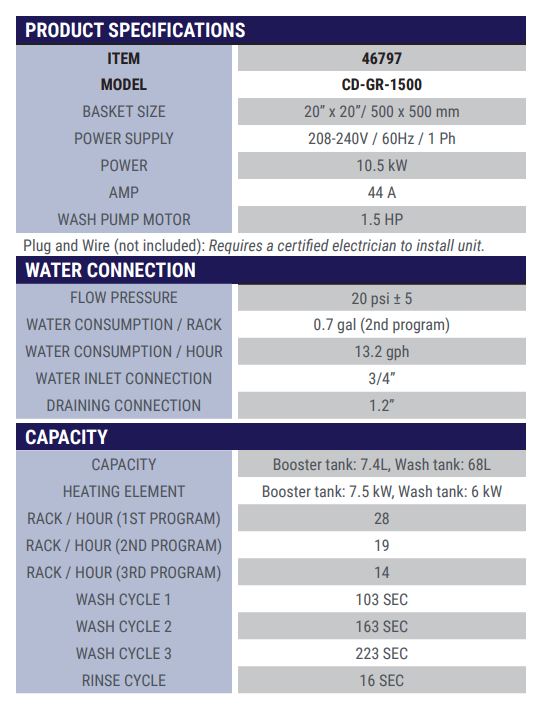

SPECIFICATIONS
ITEM: 46797
BASKET SIZE: 20″ x 20″/ 500 x 500 mm
ELECTRICAL: 208-240V / 60Hz / 1Ph
AMP: 44A
WASH PUMP: 1.5 HP
PLUG AND WIRE (not included): Requires a certified electrician to install unit
FLOW PRESSURE: 20 psi ± 5
WATER CONSUMPTION / RACK: 0.7 gal (2nd program)
WATER PRESSURE REQUIREMENTS: 30-72 PSI
WATER CONSUMPTION / HOUR: 13.2 gph
WATER INLET CONNECTION: 3/4″
DRAINING CONNECTION: 1.2″
CAPACITY: Booster tank: 7.4L, Wash tank: 68L
HEATING ELEMENT: Booster tank: 7.5 kW, Wash tank: 6 kW
RACK / HOUR (1ST PROGRAM): 28
RACK / HOUR (2ND PROGRAM): 19
RACK / HOUR (3RD PROGRAM): 14
WASH CYCLE 1: 103 SEC
WASH CYCLE 2: 163 SEC
WASH CYCLE 3: 223 SEC
RINSE CYCLE: 16 SEC

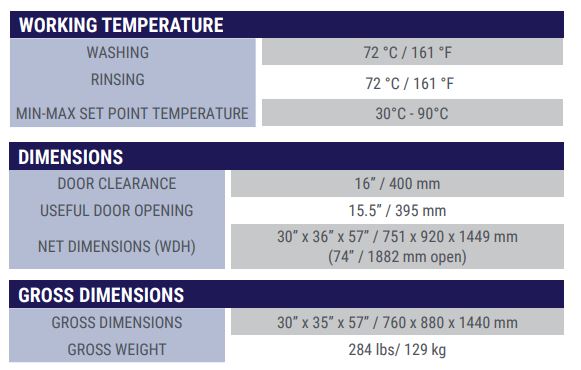

WASHING TEMPERATURE: 72 °C / 161 °F
RINSING TEMPERATURE: 72 °C / 161 °F
MIN-MAX SET POINT TEMPERATURE: 30 °C / 90 °F

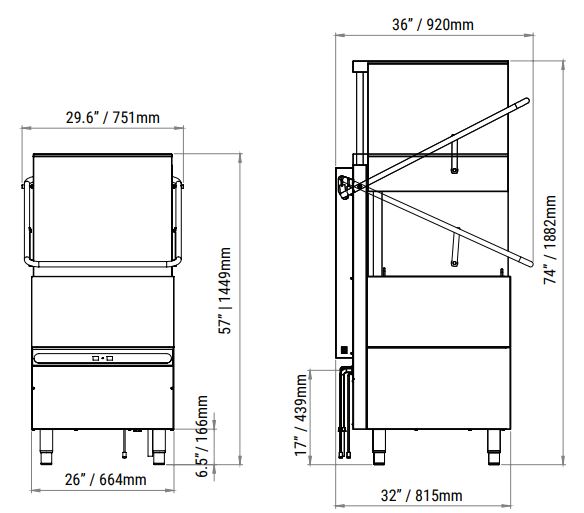

DOOR CLEARANCE: 16″ / 400 mm
USEFUL DOOR OPENING: 15.5″ / 395 mm
NET DIMENSIONS: 30″ x 36″ x 57″ / 751 x 920 x 1449 mm (74″ / 1882 mm open)
GROSS DIMENSIONS: 30″ x 36″ x 57″ / 751 x 920 x 1449 mm (74″ / 1882 mm open)
GROSS WEIGHT: 284 lbs/ 129 kg
INSTRUCTION MANUAL
