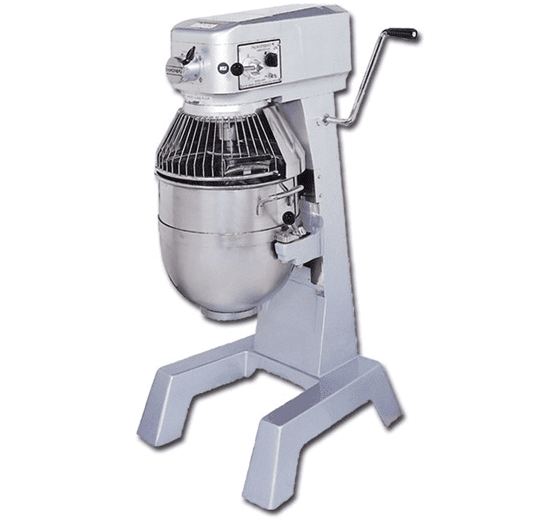

ARM-40 is a planetary mixer that is a heavy-duty, precision crafted, versatile machine. These all-purpose mixers use a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results. The wide-faced, hardened alloy steel helical gears deliver energy at pre-selected fixed speeds. Each mixer comes standard with a stainless steel bowl, spiral dough hook, batter beater and wire whip. The heavy-duty, stainless steel, wire front bowl guard opens easily for adding ingredients. The bowl guard interlock prevents the mixer from running if guard is opened or the bowl is lowered. The units feature moisture resistant switches and No-Volt Release
Thank you for viewing our quality commercial restaurant equipment online at The Foodservice Equipment Depot. We are your trusted food equipment supply store in Canada based out of Calgary, AB. The FED has answers for your how-to’s, product guides, specifications, drawings, discount pricing and shipping questions. If you are wanting to buy used or new food equipment in stock at our warehouse, please contact us today for a quote.
Motor:
3-speed
2 HP Continuous
30 Amps
Electrical:
115/60/1
Speed Range:
Beater: 46-150
Hub: 105-338
Weight:
Net: 415 LBS (189kg)
Ship: 490 LBS (223kg)
Dimensions:
W 25″ (635mm) x D 25″ (635mm) x H 46″ (1168mm)
Shipping:
W 28″ (711mm) x D 28″ (711mm) x H 52″ (1320mm)
Finish/construction: Cast base finished in metallic silver, epoxy powder
coat enamel for easy cleaning.
Transmission: Wide-faced, hardened alloy steel, helical gears fully sealed in
transmission lubricant with heavy-duty ball bearings and clutch combine for highly
dependable, quiet operation.
Speeds:3 Pre-selected, fixed speeds.
Bowl Guard: Bowl Guard with interlock prevents the mixer from running if guard is opened.
Power Hub: #12Taper hub for use with any optional #12 size attachment.
Controls: Highly reliable, moisture resistant switches, provide for continuous operation, a 15-minute timer automatically shuts off the
machine in any speed after the pre-determined time has elapsed.
No-volt Release: Prevents activation of the mixer in the event of a power interruption; operator must restart the mixer.
Standard Equipment: The mixing unit with one stainless steel bowl, bowl guard, flat batter beater, wire whip and spiral dough hook.
Bowl lift: Manual bowl lift is lever operated and self-locking in top position.
Cord and Plug: Attached 6-foot flexible 3-wire cord and plug for grounded receptacle.
Warranty: All parts, for one and half year, exclusive of wear items.
