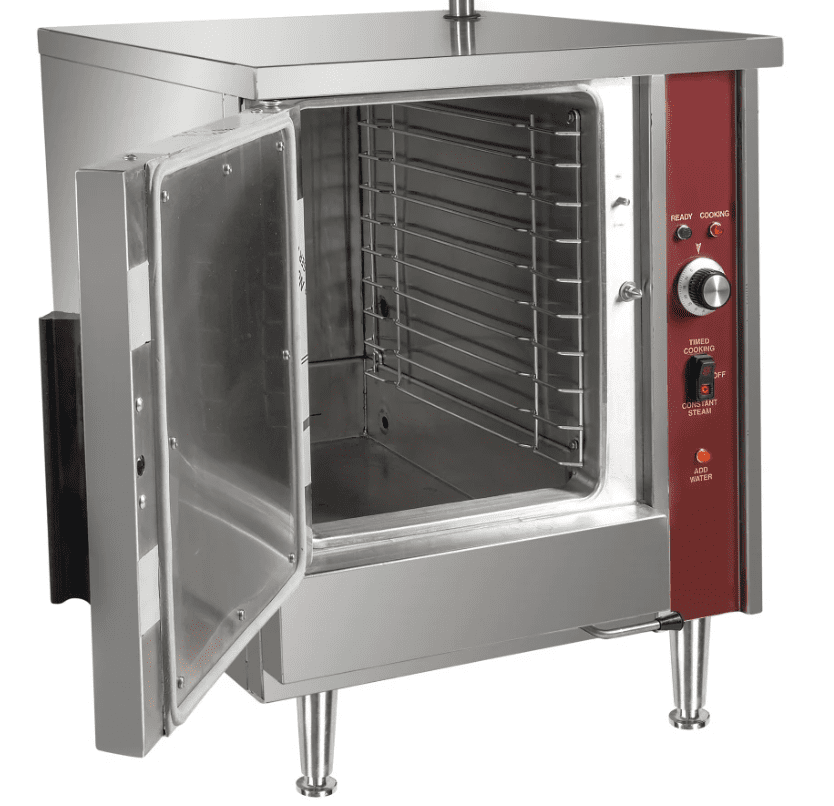

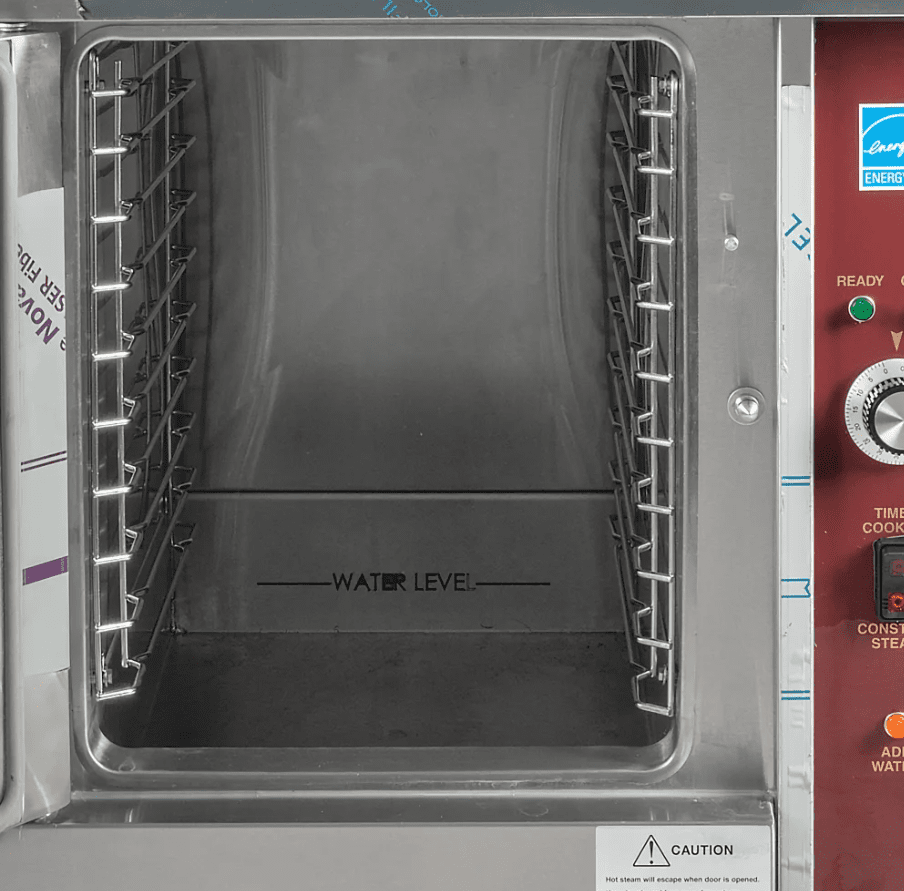

The SX-5G3 is a gas-fired convection steamer with a stainless steel steam generator and a 5-pan capacity. It is constructed with satin finish 304 stainless steel, and the cooking chamber is made from one-piece welded 316 stainless steel with coved corners. The heavy-duty door features a stainless steel inner liner with a full perimeter gasket seal, an outer welded stainless steel liner, and a positive lock and seal mechanism with spring release. The compartment includes removable stainless steel pan supports and a drip trough connected to the drain to collect condensate when the door is opened.

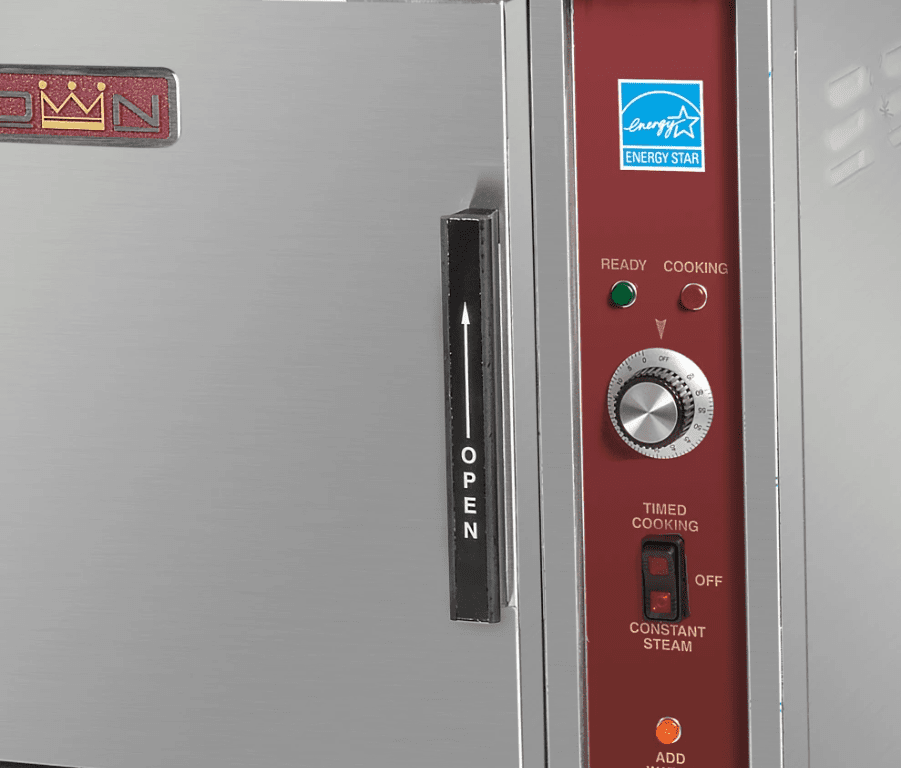

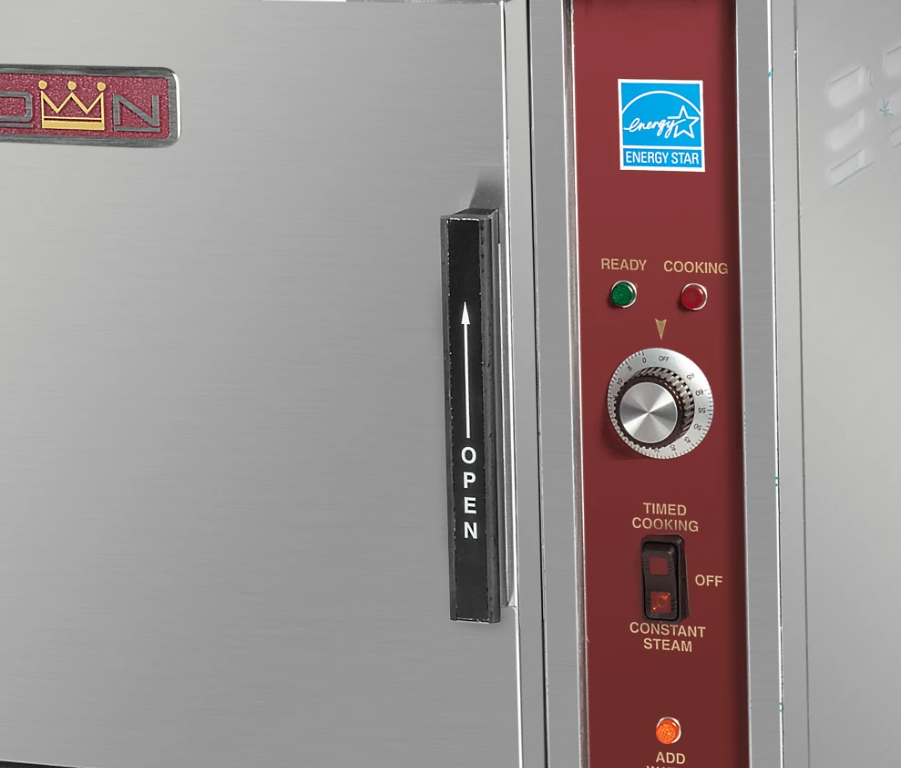

The control housing is made of stainless steel with a removable panel. Controls include an illuminated three-way power switch (On/Off/De-lime), pilot ready light, pilot cooking light, 60-minute timer with an audible alarm, solid-state generator controls, and electronic ignition. Steam flow is interrupted when the door is opened and reactivated when the door is closed.
Standard features include automatic generator blowdown, de-lime mode power setting, and a de-liming port on the right side panel for easy cleaning. The unit comes with split water connections for simple hookup to a water treatment system. The steamer is mounted on 4” high stainless steel adjustable legs.
Thank you for viewing our quality commercial restaurant equipment online at The Foodservice Equipment Depot. We are your trusted food equipment supply store in Canada based out of Calgary, AB. The FED has answers for your how-to’s, product guides, specifications, drawings, discount pricing and shipping questions. If you are wanting to buy used or new food equipment in stock at our warehouse, please contact us today for a quote.
Crown-SX-7G3 Specs
Width 24.00 Inches
Depth 33.00 Inches
Height 76.25 Inches
Weight 610 Lbs
Capacity 7 Pans
Number of Compartments 2
Steam Source Steam Generator
Voltage 120 Volts
Amperage 4 Amps
Gas Inlet Size 3/4 Inches
Total BTU 94,000 BTU/Hr
Power Type Natural Gas
