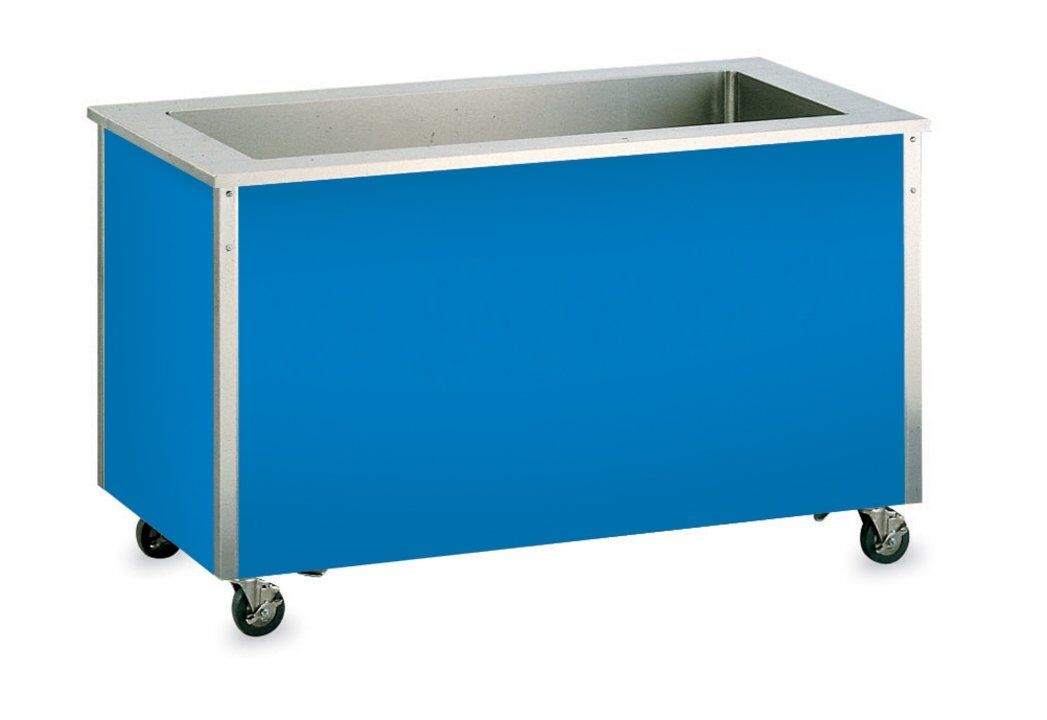

This 4-Series Bain Marie Serving System is the ideal choice when functionality and modular ease of use is your top priority. 4-Series Serving Equipment is an industry standard, with updated features to better serve the operator.
- Corner trim in stainless steel
- Entire base constructed of corrosion resistant 18 gauge stainless steel with standard black laminate.
- Optional brushed stainless steel exterior finish or choose from hundreds of laminate finishes
- Single dial control with thermostat control
- Optional 14 gauge work surface available
- 300 series stainless steel work surface
- NSF4 listed
- 625W heating elements
- Heavy-duty 4″ (10 cm) swivel casters with brakes
- High-density fiberglass insulation
- Drain hose on operator side of base
- Single drain
- Note: 4-Series equipment orders cannot be cancelled or returned.
- 8 foot power cord standard
- NEW! Choose from four standard graphics options or build your own – see Graphics PDF on Resources Tab for more details

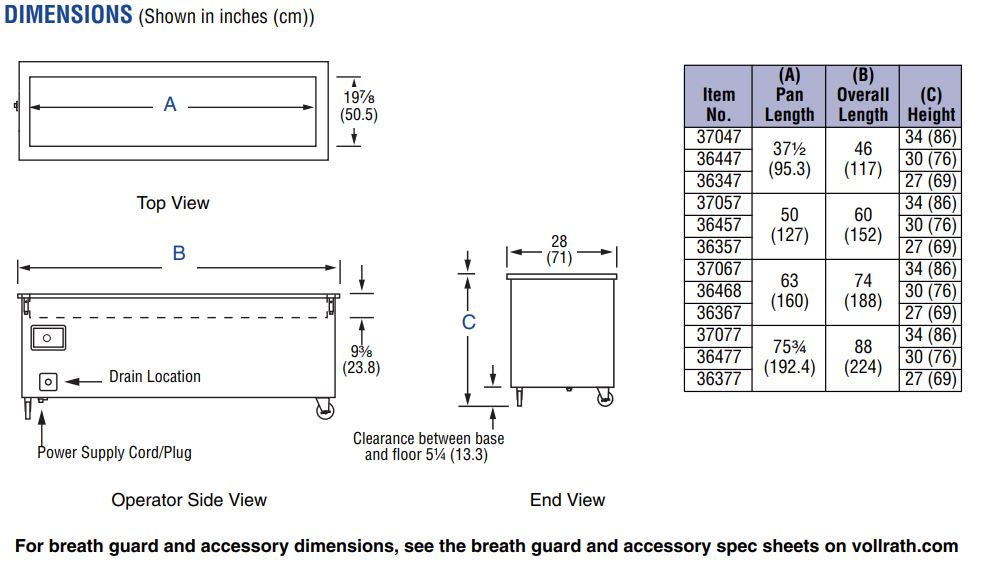

PRODUCT SPECIFICATIONS
SPECIFICATIONS
DIMENSION (inches): 46 x 28 x 34
(W) Width (IN): 46
(W2) Secondary Width (IN): 37.5
(D) Depth (IN): 28
(H) Height (IN): 34
(H2) Secondary Height (IN): 5.25
(H3) Additional Height (IN): 9.375
Caster Size (IN): 4
(W) Width (CM): 117
(W2) Secondary Width (CM): 95.3
(D) Depth (CM): 71
(H) Height (CM): 86
(H2) Secondary Height (CM): 13.3
(H3) Additional Height (CM): 23.8
Caster Size (CM): 10

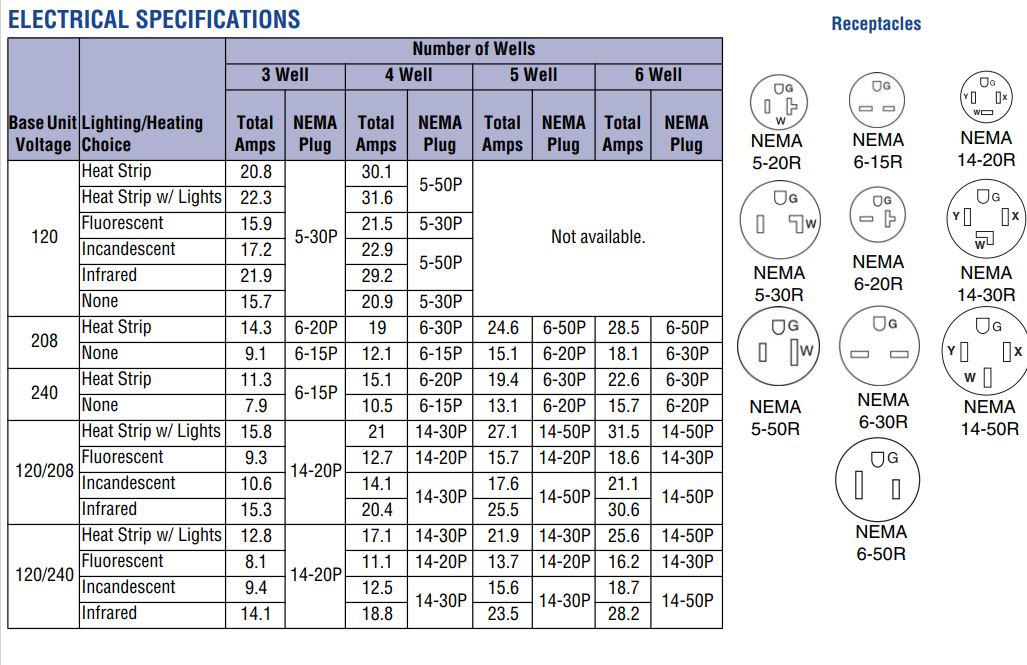

ELECTRICAL
Cord Length (IN): 8
Cord Length (CM): 2.4
Voltage: 120 – 240
CONSTRUCTION
Component Type: Rectangular Base
