SPECIFICATIONS
Freezer, reach-in, one-section, 23 cu. ft. capacity, bottom-mount self-contained refrigeration, (1) full-size solid self-closing door, metal door handle, (4) adjustable wire shelves, digital controls, LED interior lighting, stainless steel interior & exterior, 4″ swivel casters (2 braked), R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 5.6 amps, cord with NEMA 5-15P, cETLus, ETL-Sanitation, ENERGY STAR®

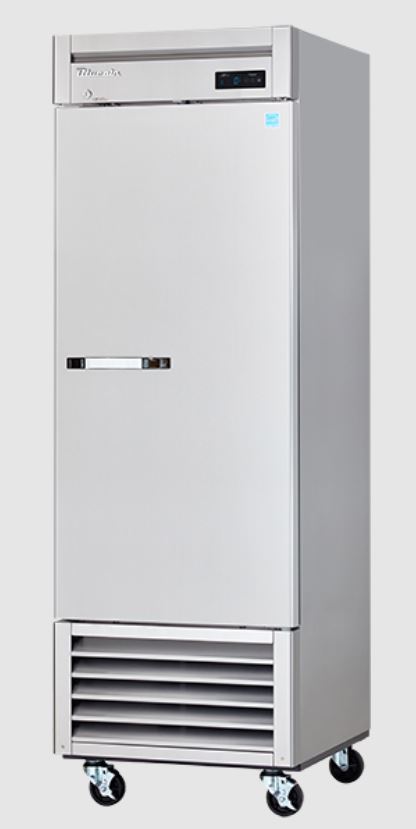

The BSF23-HC Freezer by Blue Air is a cold storage solution where you can keep frozen foods fresh and accessible in a busy kitchen. With the convenience and efficiency this 26 3/4″ long reach-in unit brings to the table, you can get more for less!
This single-door unit is constructed with stainless steel interior and exterior so it always looks good and performs as it should. The door is made of heavy-duty metal and is covered with a lifetime guarantee! The evaporator is also electrodeposition-coated to avoid corrosion and improve heat transfer.
The Blue Air BSF23-HC Freezer has a bottom-mounted compressor for immediate access to cooler air, resulting in a more energy-efficient refrigeration process. This also elevates the bottom shelf to a much more comfortable height where you can place and retrieve items from it without stooping down.
This model adds 23 cubic ft. of cold storage space with four (4) epoxy-coated adjustable wire shelves that are very sturdy to support heavier items. They can even be adjusted so you can find the right height for everything you’ll store inside. This unit can easily fit a full-sized bun sheet pans!
The Blue Air BSF23-HC Freezer is lit with LED for added energy efficiency and product visibility. You won’t ever have to deal with excess energy consumption when the door is accidentally left open after use, thanks to the self-closing door. It also stays open at 110° when you need to fill it up with bulks of items. It has pressure relievers that easily open and a lock to prevent theft during off-hours. This unit comes standard with a right-hinged door but left-hinge models are available.
Efficient and environment-friendly, the unit has rigid cyclopentane insulation and uses R-290 refrigerant with low ozone depletion potential to cool your items. This hydrocarbon refrigerant is 25% more efficient than HFCs so you can get more out of your refrigerator for much less! Door gaskets make for secure, airtight closure and are durable and easy to remove.
An air guard on the rear wall and hot gas frame heating system for proper ventilation and airflow. A condensation pan for preventing water overflow is found on the rear.
The Blue Air BSF23-HC Freezer is very easy to operate, thanks to a self-diagnostic digital temperature control and monitor system where you can check and set temperature, trigger automatic evaporator fan motor delay, and activate a visual and audible alarm when the doors have been left open for too long.
With a self-contained refrigeration system, this unit can be used immediately with very minimal setup! 4″ diameter swivel casters with front brakes are included for mobility during cleaning.
The Blue Air BSF23-HC Freezer is an Energy Star model with cETLus and ETL-Sanitation certifications for guaranteed performance and safe use. It is rated at 5.6 amps and uses a 115v/60/1-ph electrical connection with NEMA 5-15P plugging.
Thank you for viewing our quality commercial restaurant equipment online at The Foodservice Equipment Depot. We are your trusted food equipment supply store in Canada based out of Calgary, AB. The FED has answers for your how-to’s, product guides, specifications, drawings, discount pricing and shipping questions. If you are wanting to buy used or new food equipment in stock at our warehouse, please contact us today for a quote.

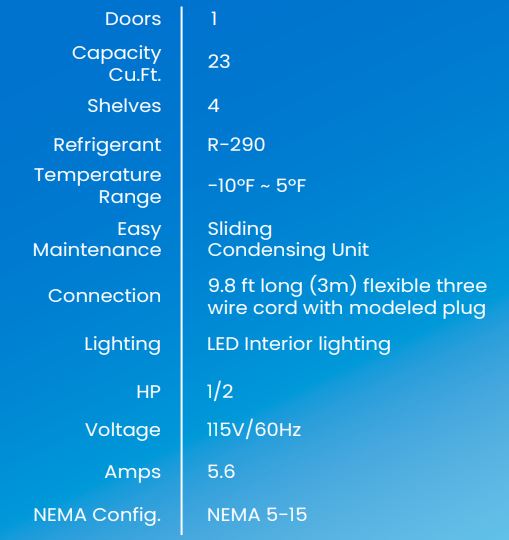

Capacity: 23

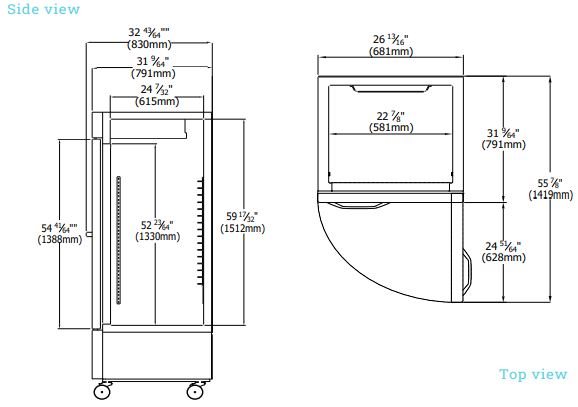

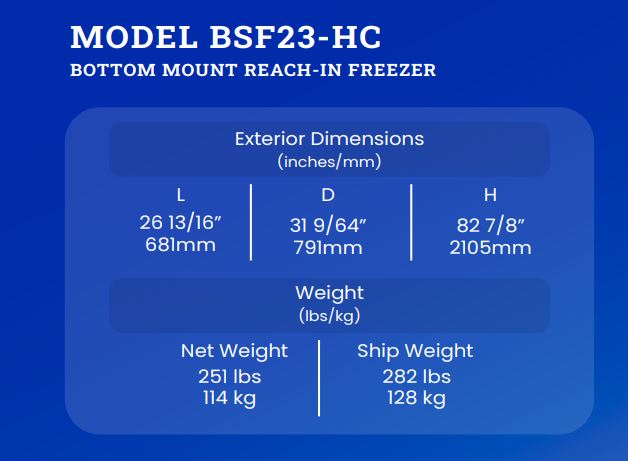

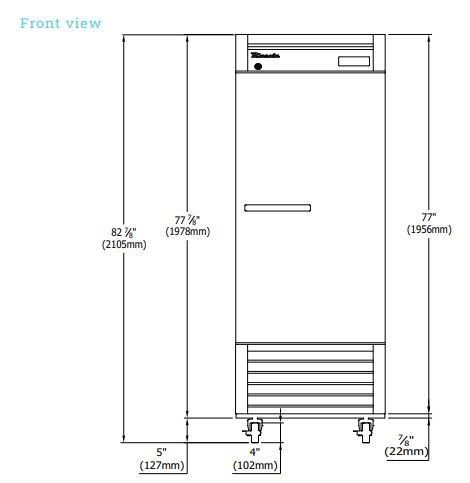

Exterior Dimensions ( L x D x H ): 26 3/4 x 32 3/8 x 82 3/8
Net Weight: 251 lbs
Door: 1
Shelves: 4
Compressor: 1/2
Refrigerant: R-290
Temperature Range: Below -10℉ ~ 5℉
Input (Voltage / Hz / Phase): AC 115V / 60Hz / 1
Amps: 5.6
Energy Consumption: 4.44 (kWh/day)
Certification Energy Efficiency: Energy Star
