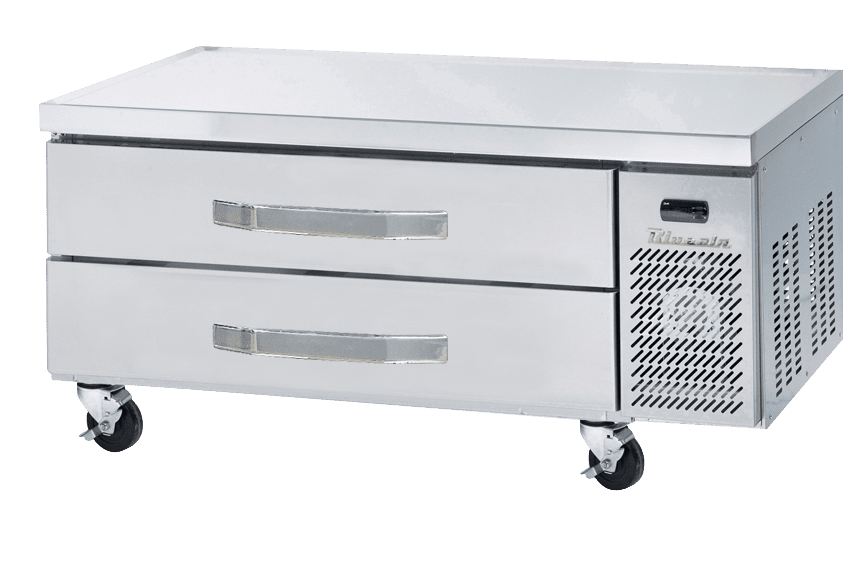

Blue Air 48″ Chef Base BACB48-HC

CAD $6,285.00 $318/Mo

green and white straight oval with free shipping and *most major Canadian Cities * in white letters

Blue Air Chef Base BACB48-HC Features:

Cabinet construction

  • High density foamed in place polyurethane insulation – Environmentally safe.
  • Designed to accommodate countertop cooking equipment
  • Unit accommodates 4” deep pans. (pans not included)
  • Heavy duty top panel
  • Four (4) 4” diameter swivel casters with front brakes standard.

Refrigeration

  • Self-contained system, rear mounted compressor.
  • Electrodeposition coated evaporator increases performance by maintaining the heat transfer rates over the life of the evaporator and reducing potential corrosion.
  • Innovative hot gas frame heating system reduces condensation and increases energy.

Drawers

  • Supported on stainless steel telescoping drawer slides with stainless steel roller bearing wheels
  • Drawer slides withstand maximum of 200 lbs. per drawer without deflection
  • Upper and lower drawers accommodate 4” deep 12” x 20” pans
  • Heavy-duty pan adapter bars supplied for fullsize pans (Pans not ncluded)
  • Durable gasket with easy replacement
  • Lifetime guaranteed heavy duty all metal door handles. (Ni-Cr Plated)
  • 6” Legs available

Compare
chef base 1
Blue Air 48″ Chef Base BACB48-HC
CAD $6,285.00 $318/Mo

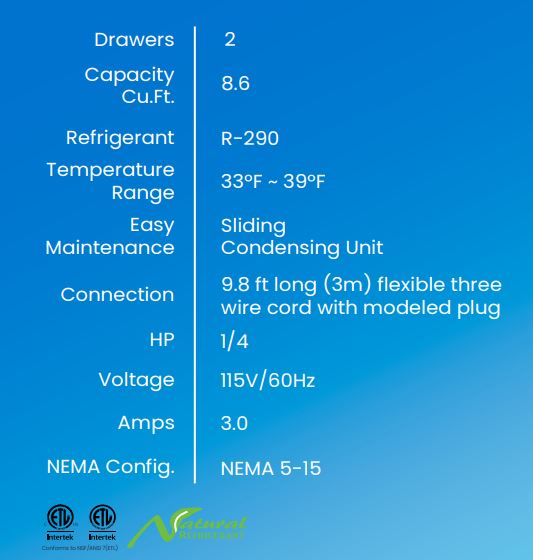

SPECIFICATIONS

Refrigerated Chef Base Equipment Stand, 48″W, side-mounted self-contained refrigeration, stainless steel flat top, (2) drawers, automatic defrost, stainless steel interior, stainless steel front & sides, (4) 4″H swivel casters (2 braked), R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 3 amps, cord with NEMA 5-15P, cUL, UL, ETL-Sanitation

Thank you for viewing our quality commercial restaurant equipment online at The Foodservice Equipment Depot. We are your trusted food equipment supply store in Canada based out of Calgary, AB. The FED has answers for your how-to’s, product guides, specifications, drawings, discount pricing and shipping questions. If you are wanting to buy used or new food equipment in stock at our warehouse, please contact us today for a quote.

Download Spec Document

Capacity 8.6 cu. ft.

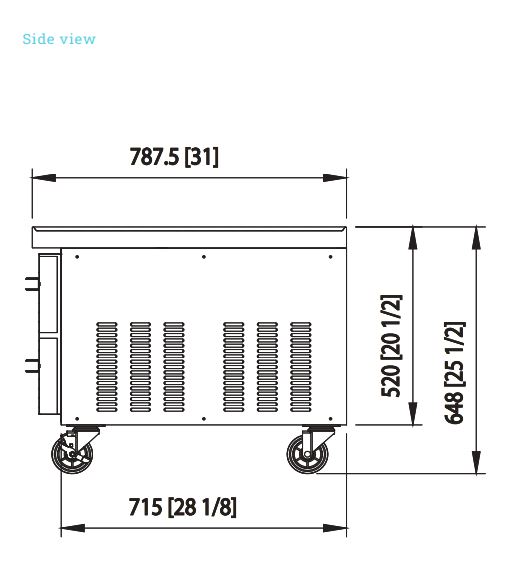

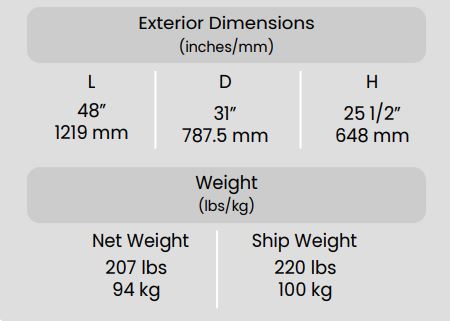

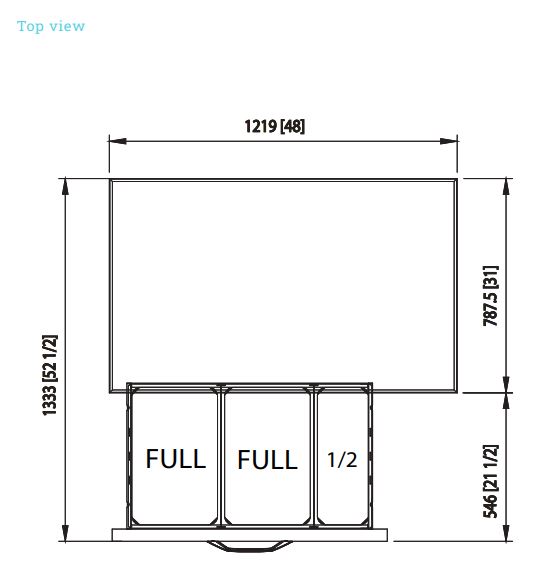

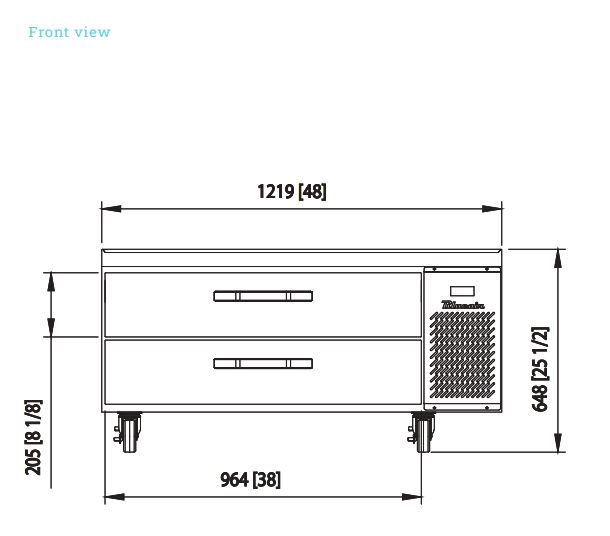

Exterior Dimensions ( L x D x H ) 48 x 30 1/2 x 25 1/8 inch
Net Weight 207 lb
Compressor 1/4 HP
Refrigerant R-290
Temperature Range 33℉ ~ 39℉
Input (Voltage / Hz / Phase) 115V / 60Hz / 1Ph
Amps 3.0
Drawers 2
Edge Straight
Pans 4+4(1/4”)
Certification Safety UL
Certification Sanitation ETL

INSTRUCTION MANUAL

DOWNLOAD INSTRUCTION MANUAL
