Broaster Ventless Deep Fryer Hood System BVH

CAD $19,998.00 OR $1015/mo

green and white straight oval with free shipping and *most major Canadian Cities * in white letters

Broaster Ventless Hood System BVH Features:

  • Compact and versatile- one-of-a-kind stainless steel hood provides the necessary vapor removal requirements for all current electric models of Broaster® pressure fryers.
  • Simple to install- eliminates the need for expansive roof modifications and the hassles of dealing with multiple vendors supplying separate hood and electrical systems.
  • Safe- includes built-in Ansul R-102 fire suppression system with piping, nozzles (appliance and plenum), and conduit routing the fusible link cable through the hood.

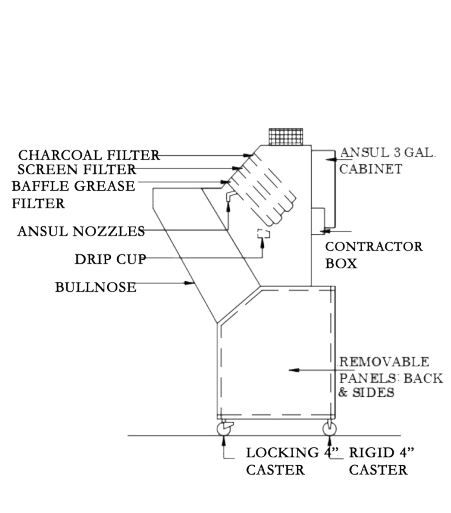

  • Effective- innovative triple-filter system with updraft technology designed to trap grease particles, eliminate condensation, remove smoke and reduce cooking odors.
  • Safety feature—interlocking start feature does not allow hood and equipment to work separately.
  • Visual—color coded, lighted alert system included to ensure system is running safely and efficiently.

Shipping requires 7 to 10 days for arrival

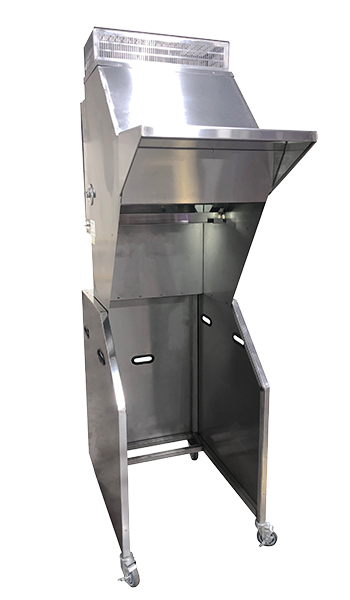

VentlessHoodSystemOnly 350x600 1
Broaster Ventless Deep Fryer Hood System BVH
CAD $19,998.00 OR $1015/mo

    Thank you for viewing our quality commercial restaurant equipment online at The Foodservice Equipment Depot. We are your trusted food equipment supply store in Canada based out of Calgary, AB. The FED has answers for your how-to’s, product guides, specifications, drawings, discount pricing and shipping questions. If you are wanting to buy used or new food equipment in stock at our warehouse, please contact us today for a quote.

    Download Spec Document

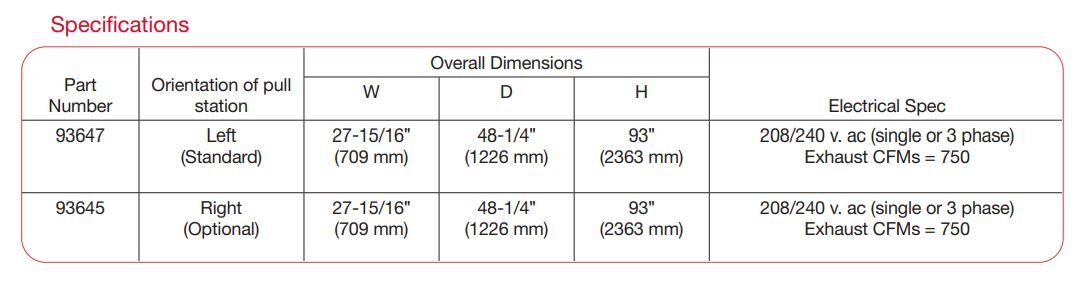

    Number: 93647

    Orientation of pull station: Left (Standard)

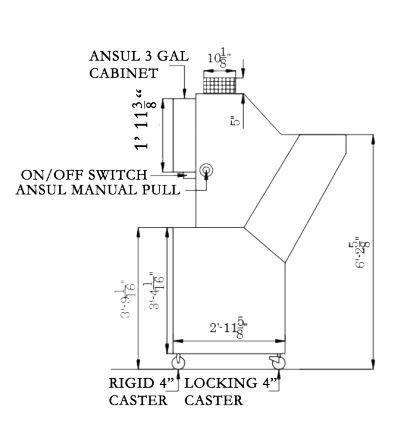

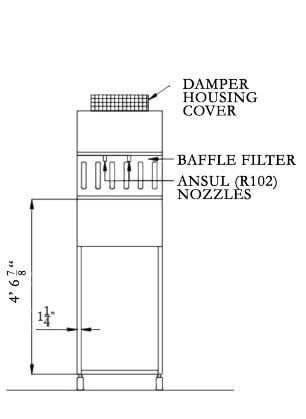

    Overall Dimensions
    W – 27-15/16″ (709 mm) D – 48-1/4″ (1226 mm) H – 93″ (2363 mm)

    Electrical Spec
    208/240 v. ac (single or 3 phase)
    Exhaust CFMs = 750

    Number 93645

    Orientation of pull station Right (Optional)

    Overall Dimensions
    W – 27-15/16″ (709 mm) D – 48-1/4″ (1226 mm) H – 93″ (2363 mm)

    Electrical Spec
    208/240 v. ac (single or 3 phase)
    Exhaust CFMs = 750

    DOWNLOAD INSTRUCTION MANUAL
