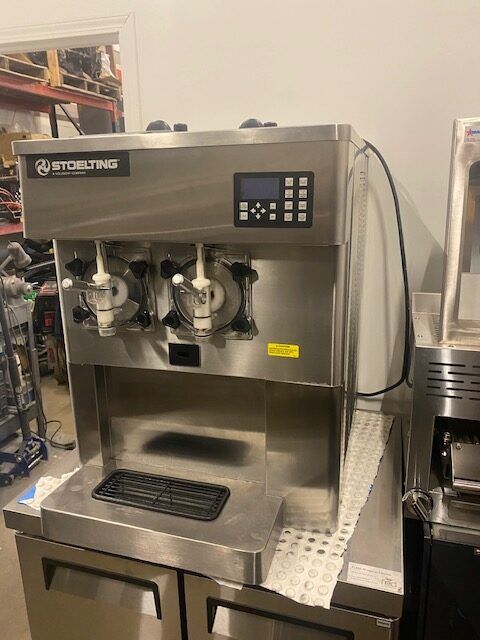

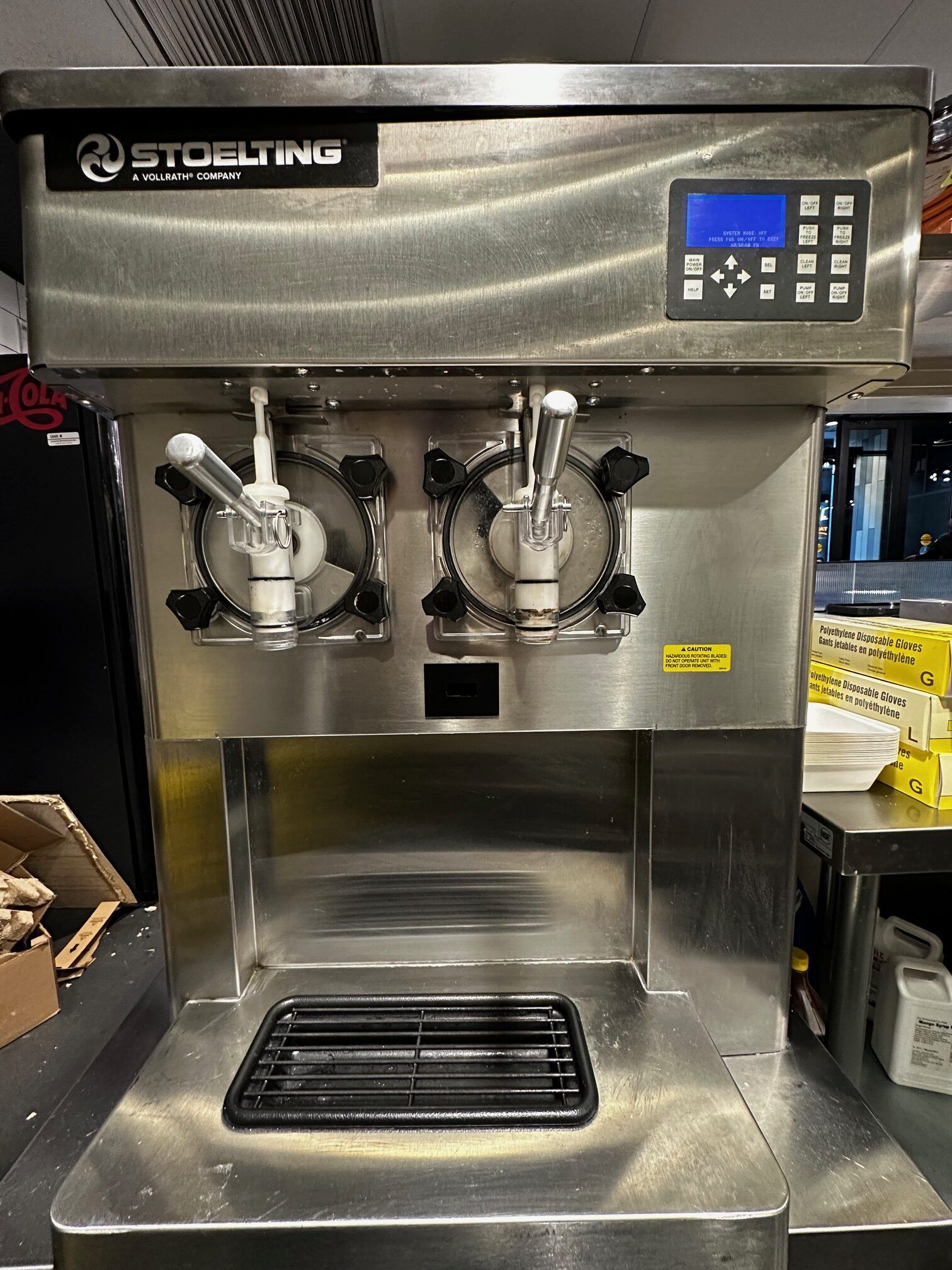

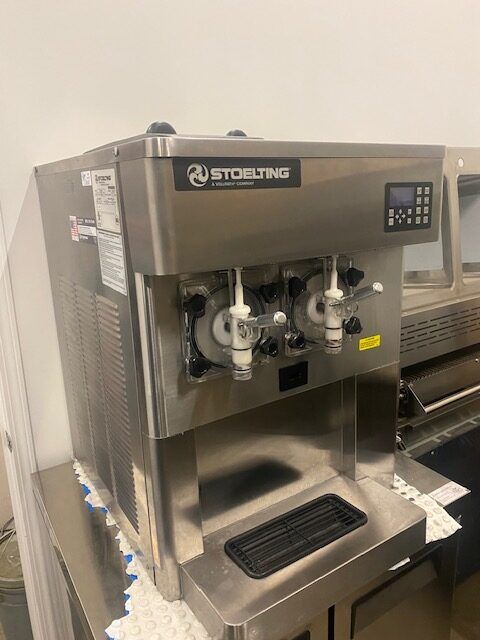

F122 Counter Top Shake Freezer or Frozen Beverage Dispenser with IntelliTec2™. This compact, space-saver unit, offers the convenience to serve frozen beverages, shakes, smoothies or frozen cocktails.
- Compact, space-saver unit, offers the convenience to serve frozen beverages, shakes, smoothies or frozen cocktails.

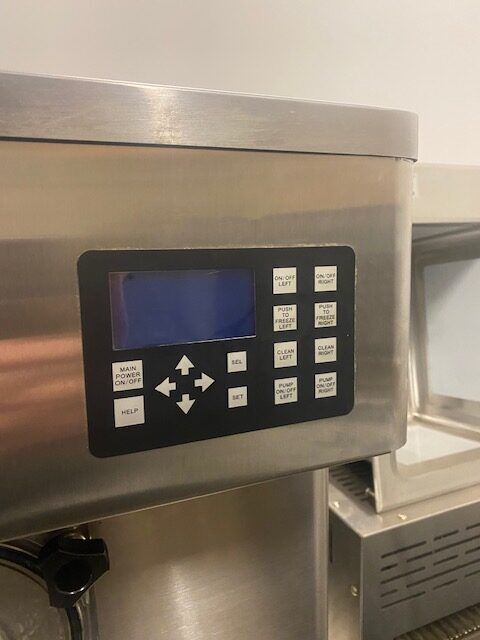

- IntelliTec2™ control communicates with the operator through a multiline graphics LCD display using full text instructions.
- Two large freezing cylinders for high volume dispensing and quick recovery.
- High capacity refrigeration system with a 12,000 Btu/hr compressor produces volumes of shakes or frozen beverages.
- Stainless steel auger, heavy-duty speed reducer and 1/2 hp drive motor set the standard for long life dependability.
UPC 029419969234
 Overall Dimensions (IN) 25-7/8 x 33-3/8 x 38-1/4
 (W) Width (IN) 25.87
 (D) Depth (IN) 33.37
 (H) Height (IN) 38.25
 (WL) Width between legs 17.5
 (DL) Depth between legs 21.25
 Overall Dimensions (CM) 65.7 x 84.8 x 97.2
 (W) Width (CM) 65.7
 (D) Depth (CM) 84.8
 (H) Height (CM) 97.2
 (WL) Width between legs (CM) 44.5
 (DL) Depth between legs (CM) 54
 Electrical
 Name Value
 Frequency (Hz) 60
 Hardwired Connection No
 Hz 60
 Phase 1
 Plug NEMA 6-20P
 Plug Connection Yes
 Running Amps 10.1
 Voltage 208-240
 Weight
 Name Value
 Weight (LB) 390
 Weight (KG) 176.9
 Construction
 Name Value
 Refrigerant R448A
 Frozen Treat: General Specifications
 Name Value
 Cooling Air
 Compressor (Btu/hr) 12000
 Number of Drive Motors 2
 Drive Motor (hp) 1/2
 Number of Hoppers 2
 Number of Freezing Cylinders 2
 Air Flow Units require 6″ (15.24 cm) air space on both sides
 Frozen Treat: Capacity Specifications
 Name Value
 Hopper Capacity (GAL) 3
 Hopper Capacity (L) 11.36
 Total Hopper Capacity (GAL) 6
 Total Hopper Capacity (L) 22.71
 Freezing Cylinder Capacity (GAL) 2.12
 Freezing Cylinder Capacity (L) 8.03
