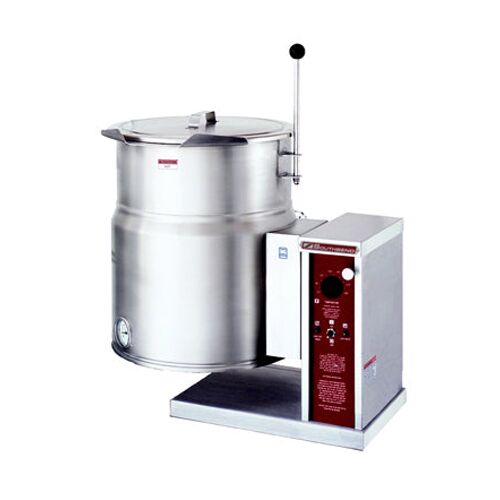

The EC-20T is a self-generating, electric, tilting kettle. A double wall kettle interior shall form a steam jacket around the lower 2/3 of the kettle. The jacket enclosure contains distilled water which is factory sealed. The bottom of the kettle has a hemispherical design for superior heat circulation.

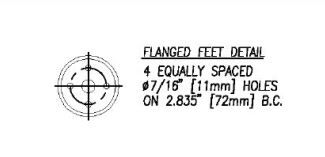

The mounting base includes four stainless steel tubular legs fitted with a four hole adjustable foot for securing the unit to the floor and a stainless steel mechanism housing.
A removable operating handle with heat proof knob shall be mounted on the right.
Construction shall be of all welded satin finish stainless steel, type 304. The interior cooking surface shall be of type 316 stainless steel for added resistance to corrosion. The kettle is ASME constructed, National Board Registered, c-CSA-us and NSF certified.
The controls are water resistant, integrally mounted and include a power switch, solid state thermostat, pilot light, vacuum/pressure gauge, safety valve, low water light, and low water shut off. Faucet bracket standard.
The kettle operates in a temperature range of 165°F to 285°F (74°C to 140°C) at a maximum pressure of 50 psi (345 kPa). The kettle comes standard with removable elements
Thank you for viewing our quality commercial restaurant equipment online at The Foodservice Equipment Depot. We are your trusted food equipment supply store in Canada based out of Calgary, AB. The FED has answers for your how-to’s, product guides, specifications, drawings, discount pricing and shipping questions. If you are wanting to buy used or new food equipment in stock at our warehouse, please contact us today for a quote.

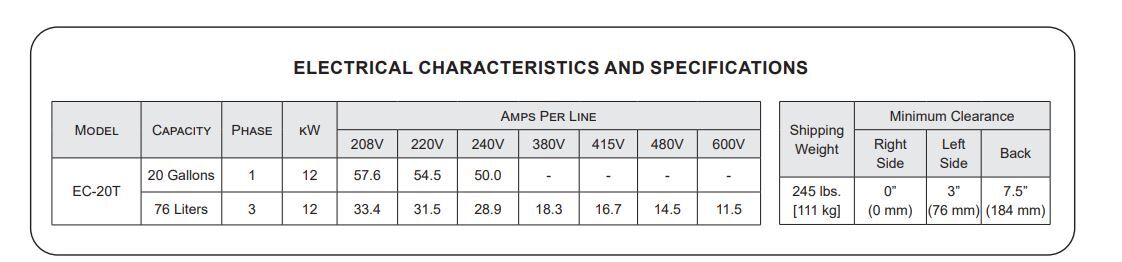

Crown-EC-20T-1PH-240V Specs
Width 36.00 Inches
Depth 33.25 Inches
Height 36.00 Inches
Weight 235 Lbs
Capacity 20 Gallons
Installation Type Countertop
Voltage 208 Volts
Amperage 57.6 Amps
Wattage 12000 Watts
Hertz 60 Hertz
Phase 1 Phase
Connection Hard wire
