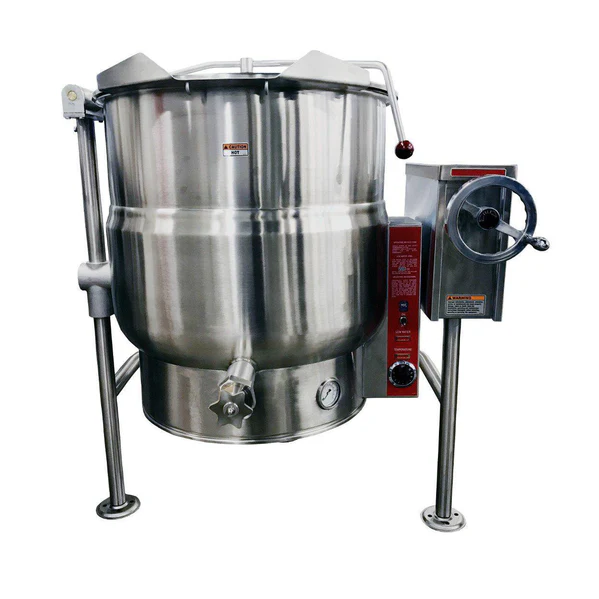

This line of Crown kettles features a double wall kettle interior which forms a steam jacket around the lower 2/3 of the kettle. The jacket enclosure contains distilled water which is factory sealed. The bottom of the kettle is of hemispherical design for superior heat circulation.
The console is constructed of drip-proof, stainless steel clad and is supported on all welded, 1-5/8” (41 mm) diameter stainless steel pipe frame and legs fitted with 4 hole adjustable flanged feet for securing to floor.
The kettle pivots on a trunnion connected to the tilt mechanism and the out-bore bearing connected to the frame and shall permit the kettle to tilt forward a full 90° for complete emptying. The tilt mechanism is self locking for positive stop action.
Unit is constructed of all welded #4 finish stainless steel, type 304. The interior liner is constructed of standard stainless steel type 316 for high acid content cooking. The controls are integrally mounted and include a power switch, thermostat, pilot light, low water light, vacuum/pressure gauge, safety relief valve, and low water shut off. Faucet bracket standard.
The kettle is standard with removable elements. The kettle operates in a temperature range of 165°F to 285°F (74°C to 140°C) at a maximum pressure of 50 psi (345kPa).
Thank you for viewing our quality commercial restaurant equipment online at The Foodservice Equipment Depot. We are your trusted food equipment supply store in Canada based out of Calgary, AB. The FED has answers for your how-to’s, product guides, specifications, drawings, discount pricing and shipping questions. If you are wanting to buy used or new food equipment in stock at our warehouse, please contact us today for a quote.
Model ELT-60
Length 41 Inches
Width 37.75 Inches
Height to Kettle Lip 38 Inches
Capacity 60 gal. (227 L)
Voltage 220 V
Hertz 50/60 Hz
Phase 3 pH
Wattage 18 kW
Amperage 47.2 Amps
Operating Pressure 50 psi (345 kPa)
Temperature Range 165°F – 285°F
Steam Jacket 2/3
Installation Type Floor
Style Tilting
Material 304/316 Stainless Steel
Product Type Electric Steam Kettle
