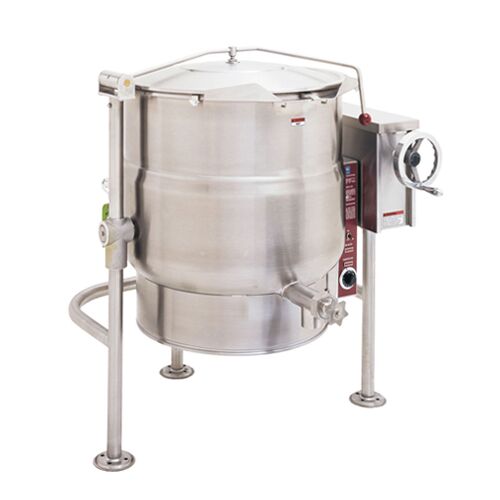

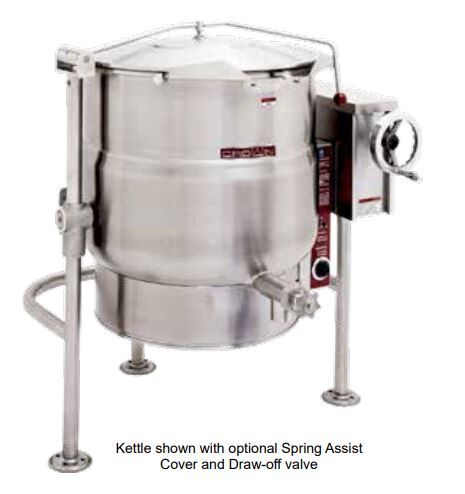

This line of Crown kettles features a double wall kettle interior which forms a steam jacket around the lower 2/3 of the kettle. The jacket enclosure contains distilled water which is factory sealed. The bottom of the kettle is of hemispherical design for superior heat circulation.
The console is constructed of drip-proof, stainless steel clad and is supported on all welded, 1-5/8” (41 mm) diameter stainless steel pipe frame and legs fitted with 4 hole adjustable flanged feet for securing to floor.
The kettle pivots on a trunnion connected to the tilt mechanism and the out-bore bearing connected to the frame and shall permit the kettle to tilt forward a full 90° for complete emptying. The tilt mechanism is self locking for positive stop action.
Unit is constructed of all welded #4 finish stainless steel, type 304. The interior liner is constructed of standard stainless steel type 316 for high acid content cooking. The controls are integrally mounted and include a power switch, thermostat, pilot light, low water light, vacuum/pressure gauge, safety relief valve, and low water shut off. Faucet bracket standard.
The kettle is standard with removable elements. The kettle operates in a temperature range of 165°F to 285°F (74°C to 140°C) at a maximum pressure of 50 psi (345kPa).
Thank you for viewing our quality commercial restaurant equipment online at The Foodservice Equipment Depot. We are your trusted food equipment supply store in Canada based out of Calgary, AB. The FED has answers for your how-to’s, product guides, specifications, drawings, discount pricing and shipping questions. If you are wanting to buy used or new food equipment in stock at our warehouse, please contact us today for a quote.

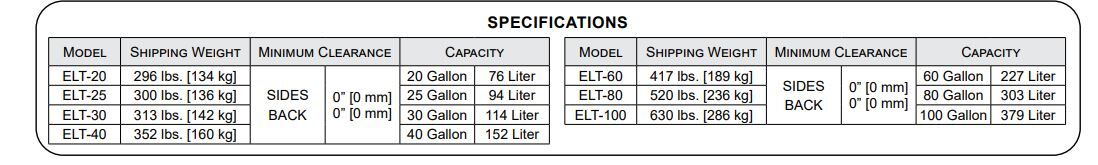

Crown-ELT-80-3PH-240V Specs
Width 48.00 Inches
Depth 45.00 Inches
Height 23.75 Inches
Weight 480 Lbs
Capacity 80 Gallons
Installation Type Floor Model

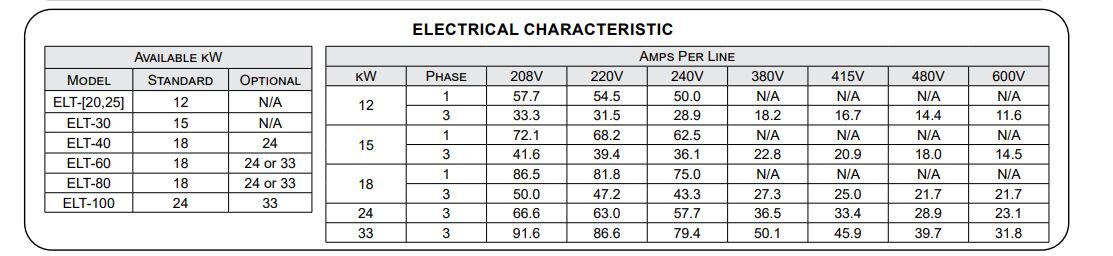

Voltage 240 Volts
Amperage 43.3 Amps
Wattage 18 KW
Hertz 60 Hertz
Phase 3 Phase
Connection Hard Wire
