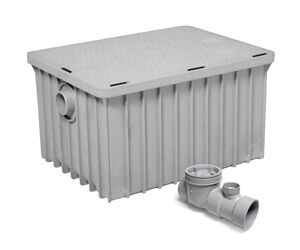

grey grease trap 4 Endura Grease Trap 70lbs 3935A03-iF CAD $1,348.00 OR $68/mo

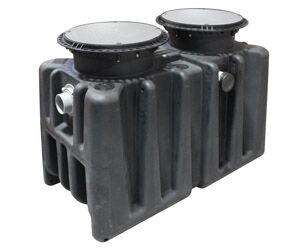

black grease trap ENDURA 75GPM GREASE INTERCEPTOR - PEDESTRIAN RATED COVER, THREADED XL75-iF CAD $3,998.00 OR $203/mo

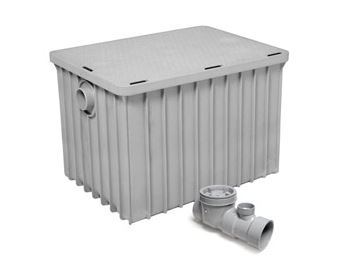

Endura Grease Trap 100lbs 3950A03-iF

CAD $1,898.00 OR $96/mo

green and white straight oval with free shipping and *most major Canadian Cities * in white letters

Endura Grease Trap 100lbs 3950A03-iF Features:

• Tank, lid and baffles injection molded in engineered thermoplastic that will not corrode, chip, or peel, even under the most severe applications

• Supplied with accessible flow control device (HxHxH) for solvent weld installation to ABS and PVC DWV systems

• EZ-Open cover latching system provides simple fastener free solution for regular maintenance access

• Suitable for in-floor or on-floor installations.

• Tank installed using mechanical joint couplings (by others), allowing for connection with various piping materials

• 3″ No-Hub connection compatible with DWV piping. 4″ (04) models also available

• Lightweight but highly durable construction offers ease of handling, installation and product longevity compared to traditional interceptors

• Maximum service temperature rated at 220 Deg F/104 Deg C continuous discharge.

• Cover exceeds CSA B481.0 Class L – Proof load min. 600lb (270kg). Expected service load Max 300lb (135kg)

• Recessed silicone seal prevents foul odors from escaping in service

SHIPPING: Requires 7 to 10 Business Days



QUOTE THIS PRODUCT
Compare
grey grease trap 5

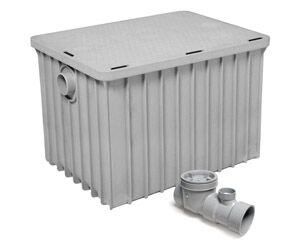

Endura Grease Trap 100lbs 3950A03-iF
CAD $1,898.00 OR $96/mo

Typically located in-floor when installed, the Endura50 offers the largest physical capacity in the line. Like the Endura35 they use an additional diffuser baffle in conjunction with the inlet baffle – the removable inlet and outlet baffles being extended in length. Supplied with our accessible flow control in either 3″(03) or 4″(04) format, Endura50 is compatible with our modular riser extensions (3935AX6) for a perfectly flush-with-floor finish. Flow control riser extension kit also available. NSF Certified to CSA B 481.1, ASME A112.14.3 & PDI G101.

Thank you for viewing our quality commercial restaurant equipment online at The Foodservice Equipment Depot. We are your trusted food equipment supply store in Canada based out of Calgary, AB. The FED has answers for your how-to’s, product guides, specifications, drawings, discount pricing and shipping questions. If you are wanting to buy used or new food equipment in stock at our warehouse, please contact us today for a quote.

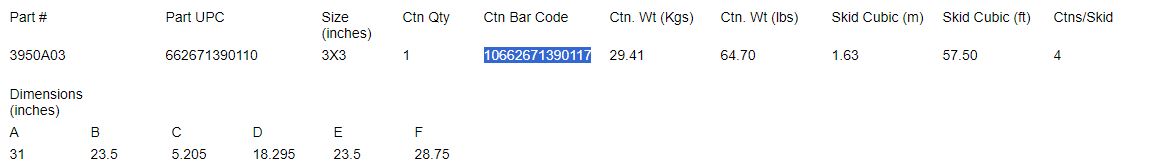

SPECIFICATIONS

Download Spec Document

Part #: 3950A03

Part UPC: 662671390110

Colour: Grey

Size (inches): 3×3

Ctn Qty: 1

Ctn Bar Code: 10662671390117

Ctn. Wt (Kgs): 29.41

Ctn. Wt (lbs): 60.70

Skid Cubic (m): 1.63

Skid Cubic (ft): 57.50

Ctns/Skid: 4

INSTRUCTION MANUAL

DOWNLOAD INSTRUCTION MANUAL
