grease trap 2
grey grease trap 2 Endura Grease Trap 40lbs 3920A02-iF CAD $848.00 OR $43/mo
grey lo profile grease trap Endura Lo-Profile Grease Trap 50lbs 3925A02LO-iF CAD $998.00 OR $51/mo

Endura Grease Trap 50lbs 3925XTA02-iF

CAD $898.00 OR $46/mo

green and white straight oval with free shipping and *most major Canadian Cities * in white letters

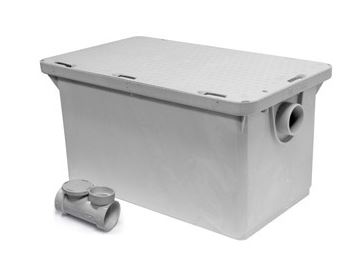

Endura Grease Trap 50lbs 3925XTA02-iF Features:

• Tank, lid and baffles injection molded in engineered thermoplastic that will not corrode, chip, or peel, even under the most severe applications

• Supplied with accessible flow control device (HxHxH) for solvent weld installation to ABS and PVC DWV systems

• Smooth tank profile inside and out for ease of maintenance and cleaning

• EZ-Open cover latching system provides simple fastener free solution for regular maintenance access

• Tool-Free access with finger pockets adjacent to EZ-open cover latches.

• Tank installed using mechanical joint couplings (by others), allowing for connection with various piping materials

• Maximum service temperature rated at 220 Deg F/104 Deg C continuous discharge.

• 2″ No-Hub connection compatible with DWV piping – 3″ (03) models also available.

• Cover exceeds CSA B481.0 Class L – Proof load min. 600lb (270kg). Expected service load Max 300lb (135kg)

• Recessed silicone seal prevents foul odors from escaping in service

SHIPPING: Requires 7 to 10 Business Days



QUOTE THIS PRODUCT
grey grease trap 3

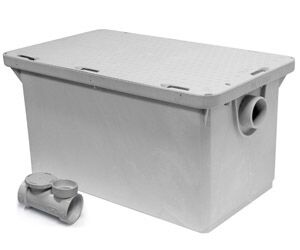

Endura Grease Trap 50lbs 3925XTA02-iF
CAD $898.00 OR $46/mo

    Found both in-floor and on-floor when installed, the Endura25XT is the mainstay of the Endura line being the most commonly sized and selected products in the line. The 25XT models include our latest development features, such as finger pockets adjacent to latches for tool-free access and a smooth internal and external tank profile for simplified operational cleaning. All models are supplied with their applicable compact flow control device. NSF Certified to CSA B481.1, ASME A112.14.3 & PDI G101. One piece, stackable riser extensions (3925AX6) are available for in-floor installations.

    Thank you for viewing our quality commercial restaurant equipment online at The Foodservice Equipment Depot. We are your trusted food equipment supply store in Canada based out of Calgary, AB. The FED has answers for your how-to’s, product guides, specifications, drawings, discount pricing and shipping questions. If you are wanting to buy used or new food equipment in stock at our warehouse, please contact us today for a quote.

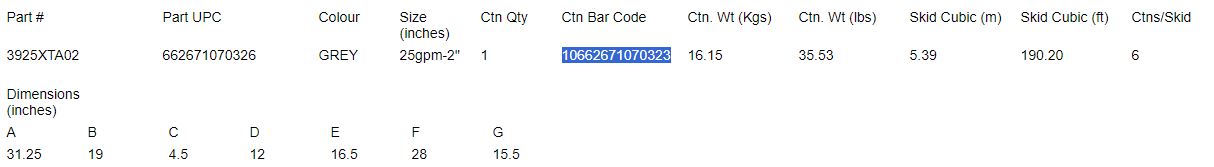

    SPECIFICATIONS

    Download Spec Document

    Part #: 3925XTA02

    Part UPC: 662671070326

    Colour: Grey

    Size (inches): 25gpm-2″

    Ctn Qty: 1

    Ctn Bar Code: 10662671070323

    Ctn. Wt (Kgs): 16.15

    Ctn. Wt (lbs): 35.53

    Skid Cubic (m): 5.39

    Skid Cubic (ft): 190.20

    Ctns/Skid: 6

    INSTRUCTION MANUAL

    DOWNLOAD INSTRUCTION MANUAL
    SKU: 3925XTA02-iF Categories: ,
