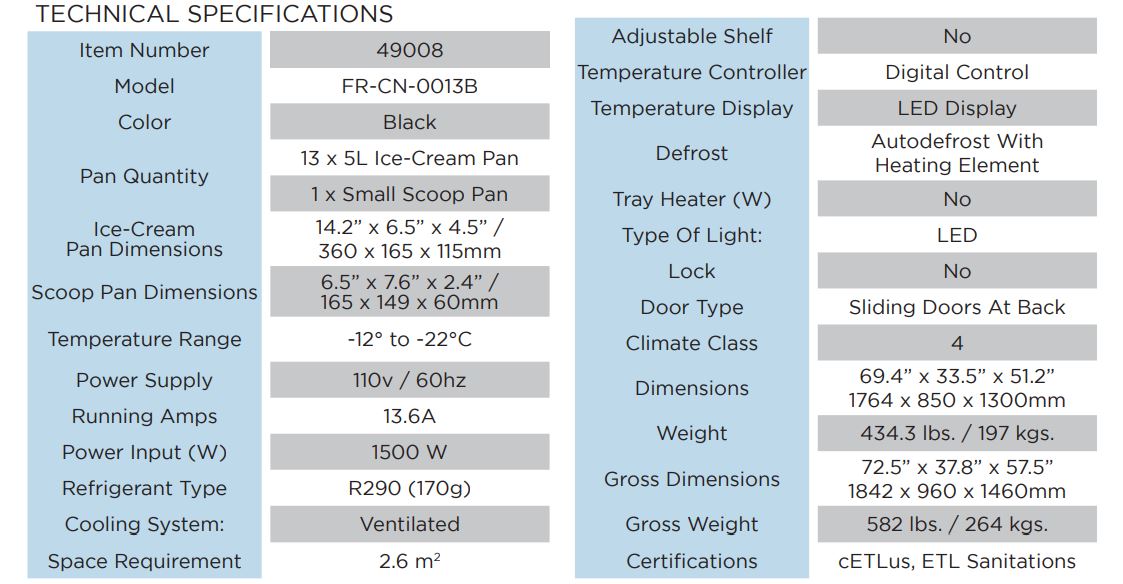

SPECIFICATIONS
ITEM: 49008
MODEL: FR-CN-0013B
ELECTRICAL: 110V / 60Hz
CURRENT: 13.6A
POWER: 1500W
TEMPERATURE RANGE: -12 to -22°C / 10.4 to -7.6°F
MAX AMBIENT TEMP RATING: 23.9°C / 75°F
REFRIGERANT: R290 (160g)
COOLING SYSTEM: Ventilated
CLIMATE CLASS: 4
TEMPERATURE CONTROLLER: Digital Control
TEMPERATURE DISPLAY: LED Display
TYPE OF LIGHT: LED
DEFROST: Auto-defrost with heating element
TRAY HEATER: No
DOOR TYPE: Sliding doors at back
SELF-CLOSING DOOR: No
PAN QUANTITY: 13 x 5L (Ice Cream Pan) 1 Scoop Pan
ICE CREAM PAN DIMENSIONS: 14.2” x 6.5” x 4.5” / 360 x 165 x 115 mm
SCOOP PAN DIMENSIONS: 6.5” x 7.6” x 2.4” / 165 x 149 x 60 mm
ADJUSTABLE SHELF HEIGHT: No
UNIT DIMENSIONS: 69.5″ x 33″ x 51″ / 1764 x 850 x 1300 mm
PACKAGING DIMENSIONS: 72.5″ x 37.8″ x 57″ / 1842 x 960 x 1460 mm
UNIT WEIGHT: 434 lbs. / 197 kg.
PACKAGING WEIGHT: 582 lbs. / 264 kg.
MODEL: FR-CN-0013B
ELECTRICAL: 110V / 60Hz
CURRENT: 13.6A
POWER: 1500W
TEMPERATURE RANGE: -12 to -22°C / 10.4 to -7.6°F
MAX AMBIENT TEMP RATING: 23.9°C / 75°F
REFRIGERANT: R290 (160g)
COOLING SYSTEM: Ventilated
CLIMATE CLASS: 4
TEMPERATURE CONTROLLER: Digital Control
TEMPERATURE DISPLAY: LED Display
TYPE OF LIGHT: LED
DEFROST: Auto-defrost with heating element
TRAY HEATER: No
DOOR TYPE: Sliding doors at back
SELF-CLOSING DOOR: No
PAN QUANTITY: 13 x 5L (Ice Cream Pan) 1 Scoop Pan
ICE CREAM PAN DIMENSIONS: 14.2” x 6.5” x 4.5” / 360 x 165 x 115 mm
SCOOP PAN DIMENSIONS: 6.5” x 7.6” x 2.4” / 165 x 149 x 60 mm
ADJUSTABLE SHELF HEIGHT: No
UNIT DIMENSIONS: 69.5″ x 33″ x 51″ / 1764 x 850 x 1300 mm
PACKAGING DIMENSIONS: 72.5″ x 37.8″ x 57″ / 1842 x 960 x 1460 mm
UNIT WEIGHT: 434 lbs. / 197 kg.
PACKAGING WEIGHT: 582 lbs. / 264 kg.
