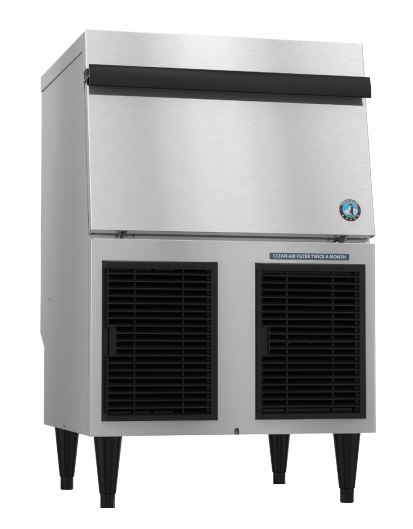

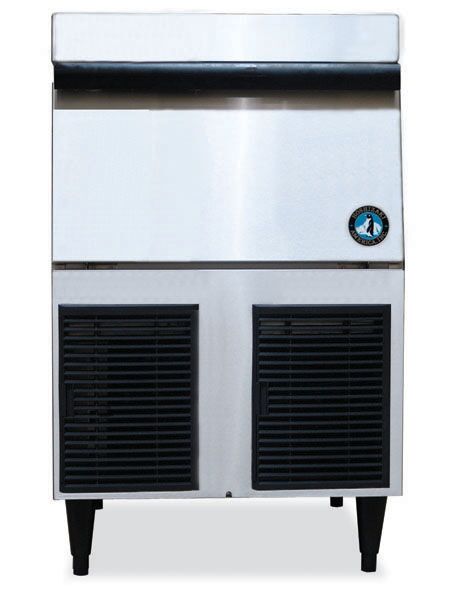

The F-330BAJ-C is capable of producing approximately 288 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Air-cooled, Self Contained, Built in Storage Bin icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-330BAJ-C requires a Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug electrical connection that is hard-wired at the installation site. Front in, front out airflow. Please consult the Specification Sheet for additional details

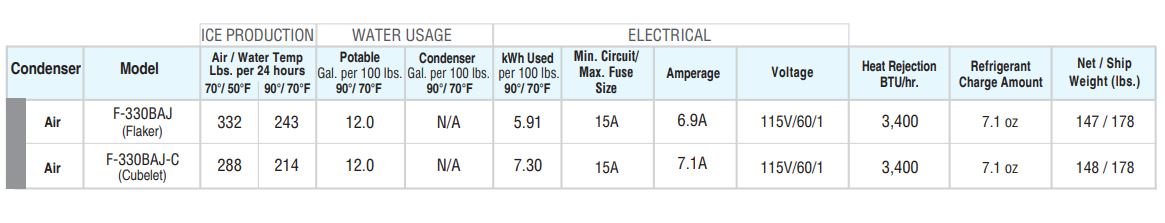

SPECIFICATIONS
Up to 288 lbs of ice produced per 24 hours
Up to 80 lbs of built-in storage capacity (2.7ft3)
Produces small cubelet nugget-style ice
Durable stainless steel exterior

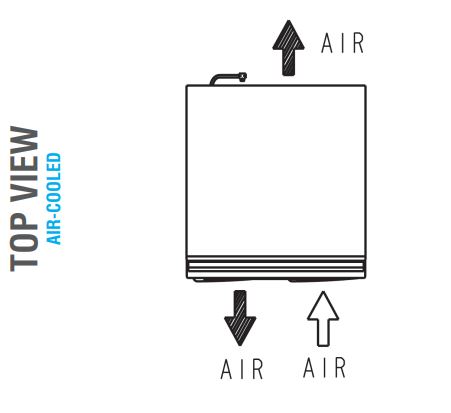

Front in, front out airflow
2 second rinse every hour to remove sediment

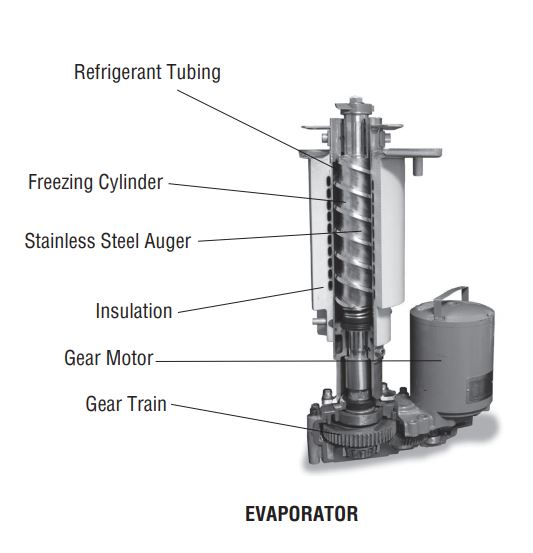

Advanced CleanCycle24™ design
Protected by H-GUARD Plus Antimicrobial Agent
R-404A refrigerant (7.1 oz. / 200 g)
Heat Rejection:3400 BTU/hr

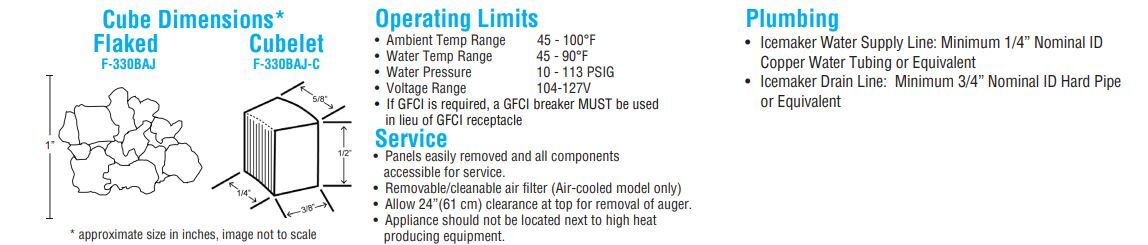

Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 104 – 127V
7.1 amps (15 Amp Max fuse)
7.3 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts warranty on Compressor, air-cooled condenser coil.
