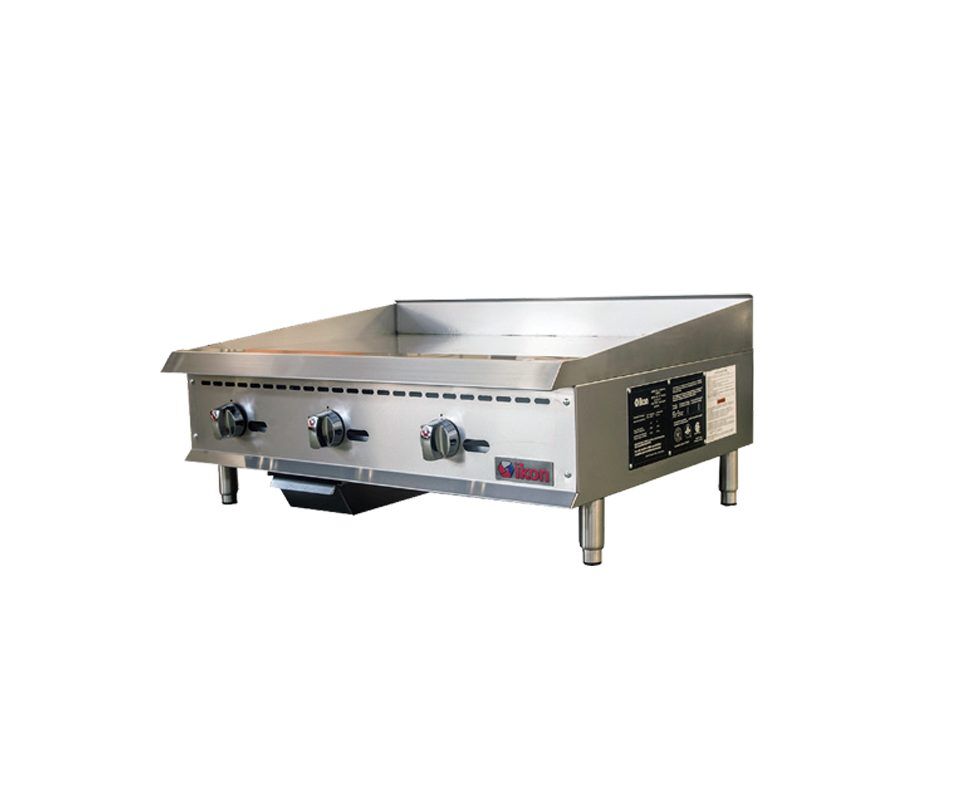

The Ikon ITG-36 is a 36″ gas griddle with thermostatic control. It runs on natural gas or liquid propane, and a conversion kit is supplied with each unit. Every 12″ of the griddle top has a gas control knob. The cabinet is completely constructed of stainless steel, and the side are double wall insulated. And, the entire machine sits on adjustable stainless steel legs with non-skid feet.
The griddle plate itself is 1″ thick and its “U” shaped burners provide even heat distribution every 12″. This machine has three burners, each with 30,000 BTUs. This griddle is fully serviceable from the front and the front edge is cool-to-the-touch. The back and side splash guards are fully welded to the griddle plate, and the flue is located on the back of the unit for ample ventilation.
Furthermore, this griddle includes a 3-1/4″ grease drawer with a “weep hole” and baffle. And finally, the grease trough of the unit is 4″ wide which fits a standard spatula.
Thank you for viewing our quality commercial restaurant equipment online at The Foodservice Equipment Depot. We are your trusted food equipment supply store in Canada based out of Calgary, AB. The FED has answers for your how-to’s, product guides, specifications, drawings, discount pricing and shipping questions. If you are wanting to buy used or new food equipment in stock at our warehouse, please contact us today for a quote.
https://mvpgroupcorp.com/techdocs/ITG-Thermostat-Control-GRIDDLES.pdf

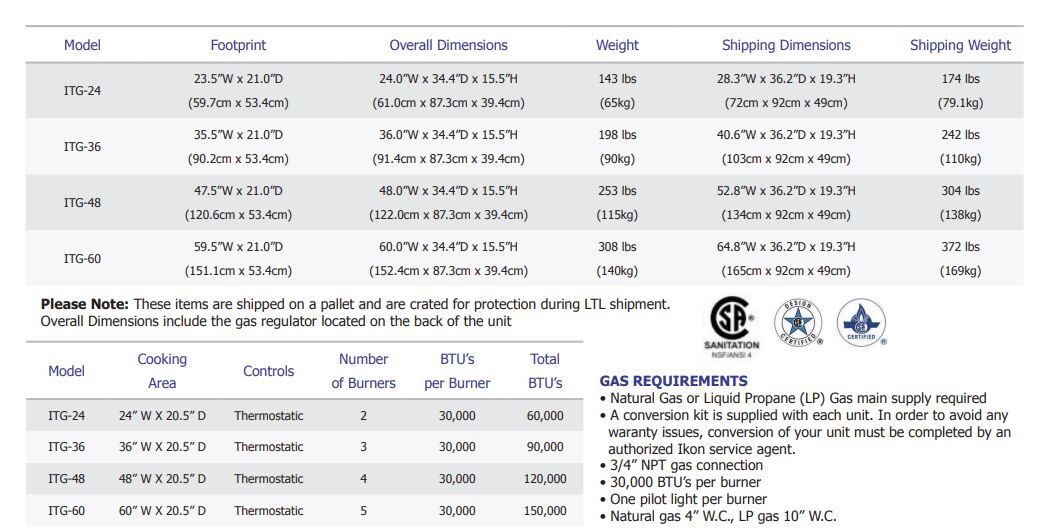

Model ITG-36
Type Flat top grill

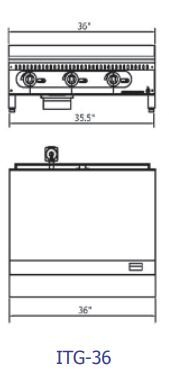

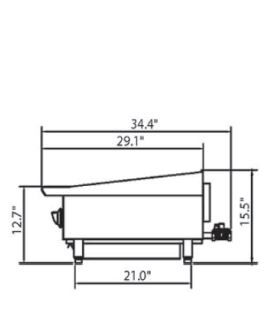

Overall Dimensions (WDH) 36″ x 34″ x 16″
Cooking Area Dimensions (WD) 36″ x 21″
Burners 3
BTU 90,000
Weight 198 lb
INSTRUCTION MANUAL
https://mvpgroupcorp.com/wp-content/uploads/2020/02/ITG24-36-48-60-USER-MANUAL-05202020-1.pdf
