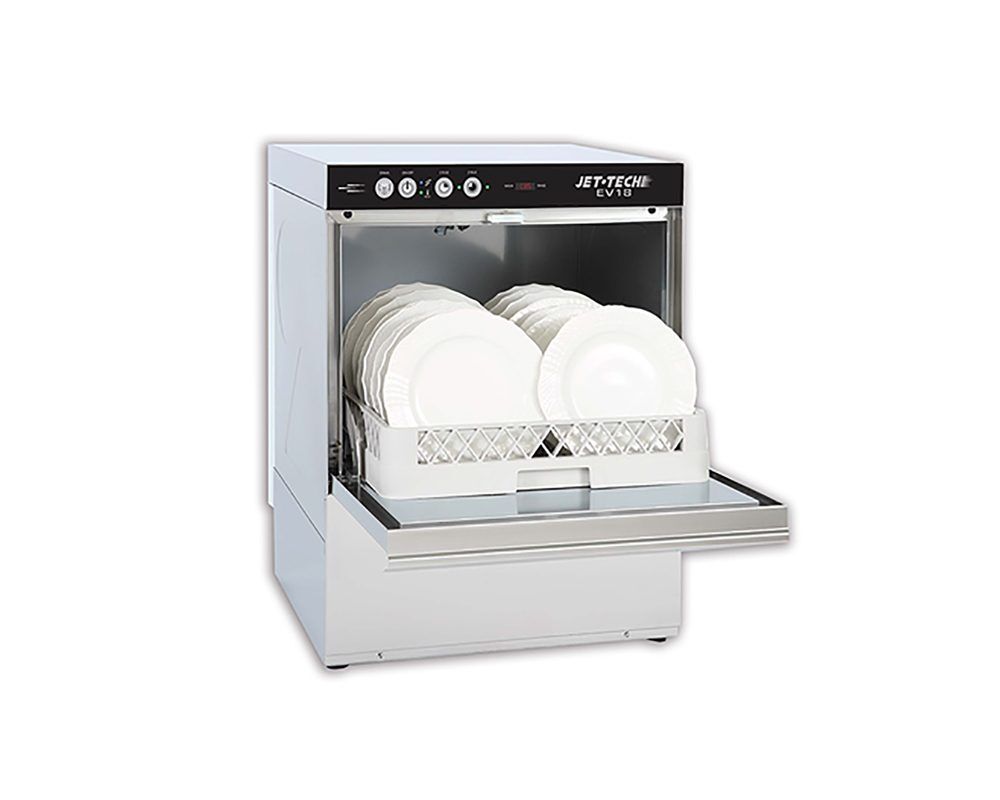

The Jet-Tech EV18 is a high-temp undercounter dishwasher which has two programmable cycles (1-3 minutes), uses 0.79 US gallons per cycle (8 litres) and can hold a 19.75″ x 19.75″ rack.
This is an Energy Star certified machine with reinforced door hinges, a dFilter system, and a simple control panel with a digital display. For more information about the features of this dishwasher, check out their brochure.
Body, external housing, wash tank, and all chassis components in brushed stainless steel 304 18/10
Upper and lower wash and rinse revolving arms constructed of reinforced fiberglass; easy to remove and clean without the need for tools
Integrated AISI 18/10 stainless steel booster with insulated lining
Safety micro-switch on the door to interrupt wash pump action
Independently-operated heating elements alternating between booster and wash tank
Alternating heating elements reducing maximum absorption thereby reducing energy costs
Automatic fill and water level regulation of the wash tank
Wash pump protected with filter plus additional shield for tank element
New dFilter system
Door-opening with overall clearance of 13.4″
Slide out integrated front control panel provides easy access for service
Electronic Temperature gauges displaying wash and rinse temperatures
Thermostatic control of wash and rinse temperatures ensure optimum results
Unit equipped with: automatic drain pump, automatic peristaltic pumps for both liquid detergent and rinse additive
Standard equipment includes: One open combination rack and one peg dish rack 19.75″ x 19.75″
Thank you for viewing our quality commercial restaurant equipment online at The Foodservice Equipment Depot. We are your trusted food equipment supply store in Canada based out of Calgary, AB. The FED has answers for your how-to’s, product guides, specifications, drawings, discount pricing and shipping questions. If you are wanting to buy used or new food equipment in stock at our warehouse, please contact us today for a quote.
https://mvpgroupcorp.com/techdocs/EV-18_Specs-.pdf

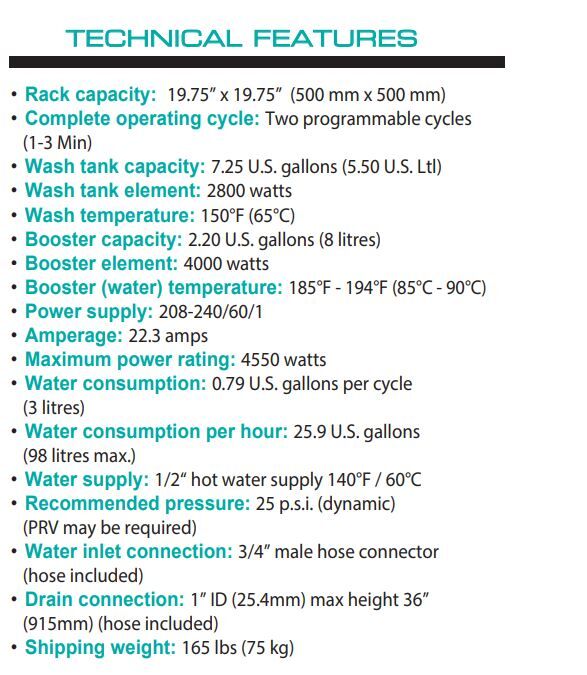

Rack capacity 19.75″ x 19.75″
Complete operating cycle Two programmable cycles (1-3 Min)
Wash tank capacity 7.25 U.S. gallons
Wash tank element 2800 watts
Wash temperature 150°F (65°C)
Booster capacity 2.20 U.S. gallons (8 litres)
Booster element 4000 watts
Booster (water) temperature 185°F – 194°F
Power supply 208-240/60/1
Amperage 22.3 amps
Maximum power rating 4550 watts
Water consumption 0.79 U.S. gallons per cycle
Water consumption per hour 25.9 U.S. gallons
Water supply 1/2″ hot water supply, 140°F
Recommended pressure 25 p.s.i. (dynamic) (PRV may be required)
Water inlet connection 3/4″ male hose connector (hose included)
Drain connection 1″ ID max height 36″ (hose included)
Shipping weight 165 lb
INSTRUCTION MANUAL
https://mvpgroupcorp.com/techdocs/EV18_EV22_MANUAL_EN-FR.pdf
