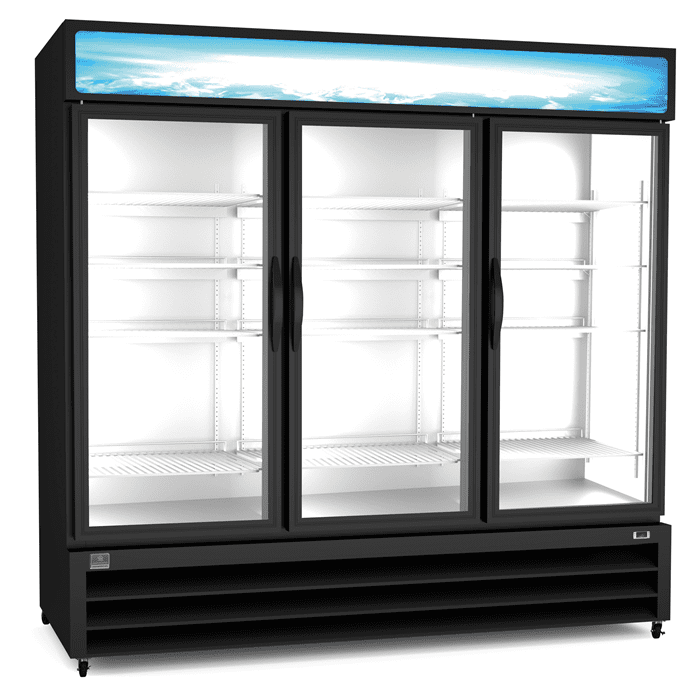

The Kelvinator Commercial KCHGM72R three-section refrigerated merchandiser uses R290 refrigerant to reduce the unit’s environmental impact. Its self-contained refrigeration system requires only an electrical outlet, which streamlines installation. Because the doors have both left and right hinges, they won’t clash together when they’re opened; they feature 90-degree locks to simplify restocking. The black painted exterior blends in with other decor and merchandisers while the white interior is lit with bright LED lights to improve the visibility of displayed products.
SPECIFICATIONS
Supply voltage: 115 V/1 ph/60 Hz
Electrical power, max: 0.8 kW
Plug type: USA NEMA 5-15P
Capacity (u.Ft.) 72
Door hinges: 1 Left+2 Right

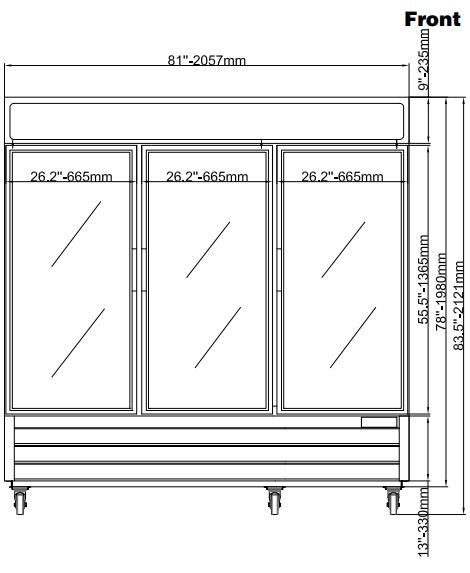

External dimensions, Width: 81 ” (2057.4 mm)

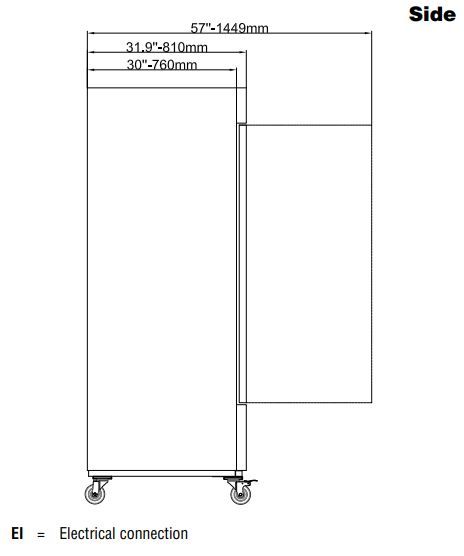

External dimensions, Depth: 31 7/8″ (810.26 mm)
External dimensions, Height: 79 1/2″ (2019 mm)
Number and type of doors: 3 Glass
Internal Dimensions (depth): 27 9/16″
Internal Dimensions (height): 59 1/16″
Internal Dimensions (width): 76 7/16″
Number and type of grids (included): 12 – Vinyl-Coated Steel
Shipping height: 85 13/16″ (2180 mm)
Shipping weight: 780 lbs (354 kg)
Shipping volume: 142.86 ft³ (4.05 m³)
Type of external material: Black Prepainted Steel
Type of internal material: White Prepainted Aluminium
Warranty: 3 / 5 years
