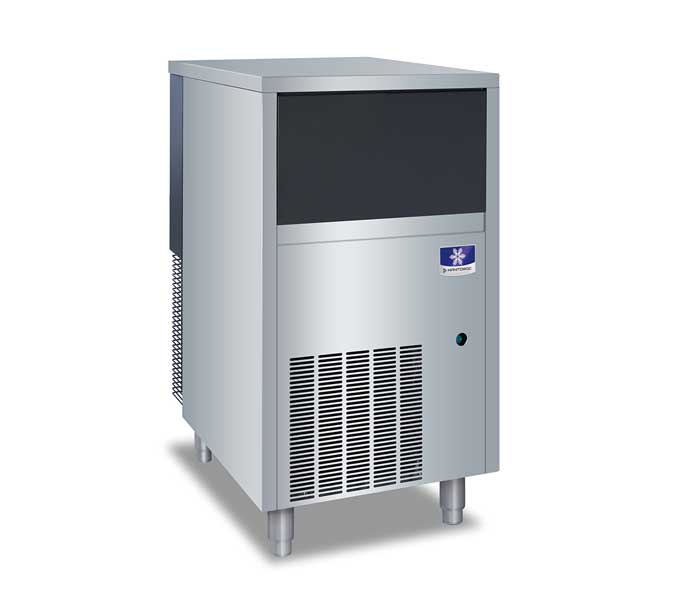

stainless steel ice machine 13

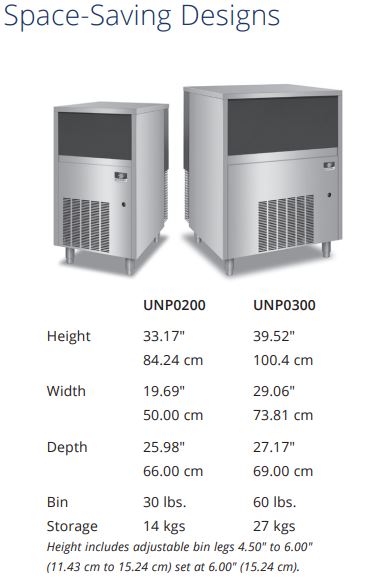

space saving design 6

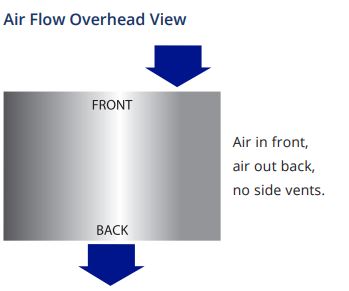

air flow pic

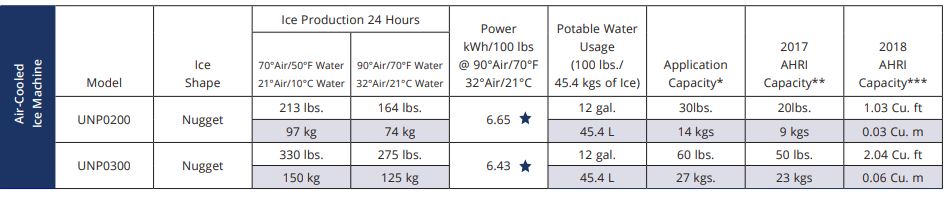

specs 155

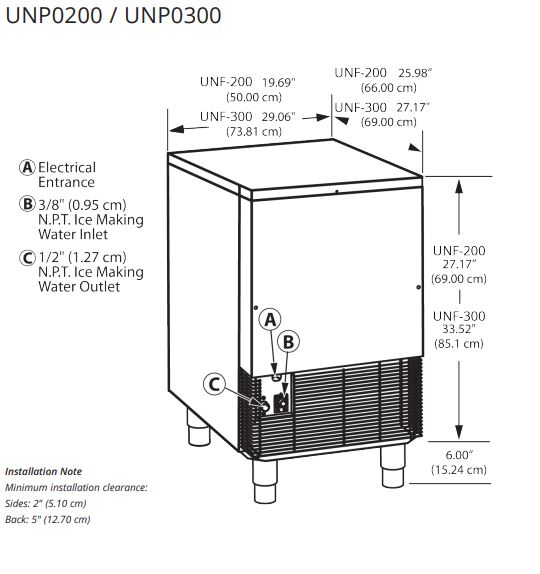

drawing 35
global refrigeration t50hsql hardening cabinet Global Refrigeration Ice Cream Hardening Cabinets T50HSQHP-DI CAD $20,998.00 OR $1066/mo
display case red meat Howard-McCray 40E Series 75" Remote Endless Design Curved Glass - Red Meat - Black R-CMS40E-6C-BE-LED CAD $14,249.00 OR $723/mo

Manitowoc Small Nugget Undercounter Ice Machine 19.69″ Wide UNP0200A-DI

CAD $8,498.00 OR $406/mo

green and white straight oval with free shipping and *most major Canadian Cities * in white letters

Manitowoc Nugget Ice Machine UNP0200A Features:

• Bite-Size Nugget that boasts one of the industry’s best ice to water ratios for nugget ice, maximizing cooling capability while minimizing drink dilution.
• Undercounter installation – UNF-0200 for kitchen counters and UNF-0300 for bar height counters.
• Up to 330 lbs. (150 kgs) daily nugget ice production.
• Perfect for carbonated beverages, blended smoothies and healthcare/physical therapy.
• Up to 50 lbs. (23 kgs) ice storage capacity.
• High load capacity bearings for enhanced reliability.
• R290 Refrigerant is environmentally friendly with less ozone depletion compared to R404.
• Easy access door, slides up & out of the way

SHIPPING: Requires 7 to 10 Business Days

QUOTE THIS PRODUCT
Compare
stainless steel ice machine 13
Manitowoc Small Nugget Undercounter Ice Machine 19.69″ Wide UNP0200A-DI
CAD $8,498.00 OR $406/mo

Nugget ice provides a high quality, soft, chewable texture while still providing maximum cooling effect. Small nuggets of ice make these ice machines perfect for drink dispensing, ice packs, blended beverages and ice/water needs.



Thank you for viewing our quality commercial restaurant equipment online at The Foodservice Equipment Depot. We are your trusted food equipment supply store in Canada based out of Calgary, AB. The FED has answers for your how-to’s, product guides, specifications, drawings, discount pricing and shipping questions. If you are wanting to buy used or new food equipment in stock at our warehouse, please contact us today for a quote.



SPECIFICATIONS

Download Spec Document

Condenser Heat of Rejection (BTU per hour):
3,038 (average) on UNF0200 and 5,121
(average) on UNF0300

Compressor:
Nominal rating: 1/4 HP on UNF0200 and 3/4
HP on UNF0300

Refrigerant:
R290A

Operating Limits:
Ambient Temperature

Range:
50˚-110˚F (10˚-43˚C)

Water Temperature Range:
37˚-90˚F (3˚-32˚C)

Water Pressure Ice Maker Water In:
Min. 14 psi (96.5 kPA)
Max. 80 psi (551.6 kPA)

INSTRUCTION MANUAL

DOWNLOAD INSTRUCTION MANUAL
