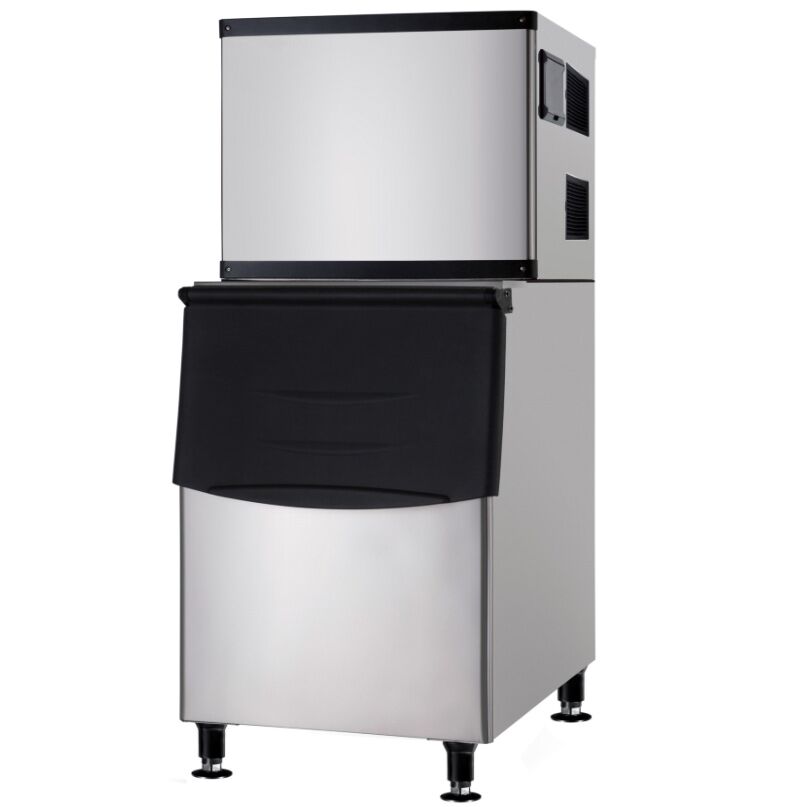

The Omcan IC-CN-0529 Ice Maker is perfect for any commercial kitchen or bar. It is constructed with a durable stainless steel finish and has a capacity of 375 lbs. of ice. This ice bin features a 30″ wide opening for convenient ice dispensing.
The IC-CN-0529 Ice Maker is designed to make ice easily accessible for use. It is equipped for simple cleaning and maintenance. It is easy to install and requires minimal maintenance. This maker is perfect for any commercial kitchen or bar and is sure to meet all of your ice dispensing needs.

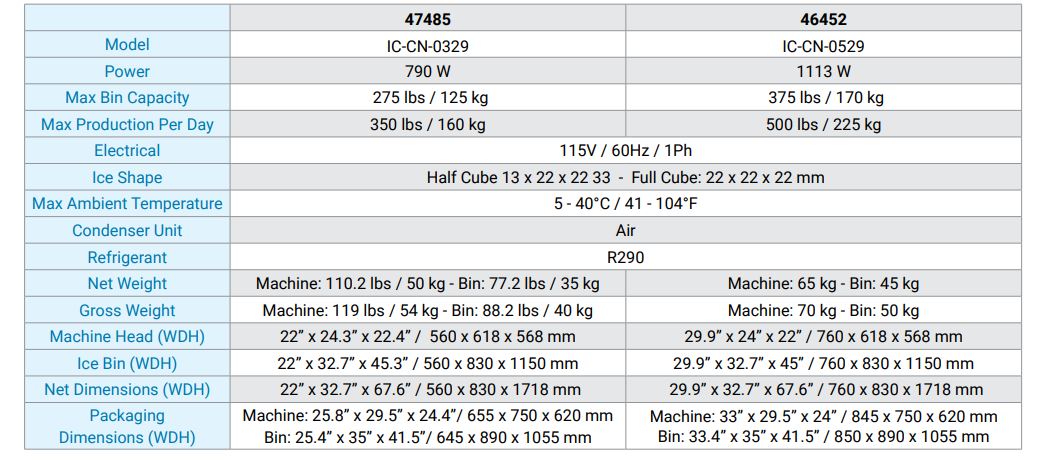

SPECIFICATIONS
PRODUCTION: 500 lbs. / 225 kg. per day
CAPACITY: 375 lbs. / 170 kg.
ICE SHAPE: Ice Cube
REFRIGERANT: R290
POWER: 1113 Watts
CONDENSER UNIT: Air
ELECTRICAL: 115V / 60Hz / 1Ph

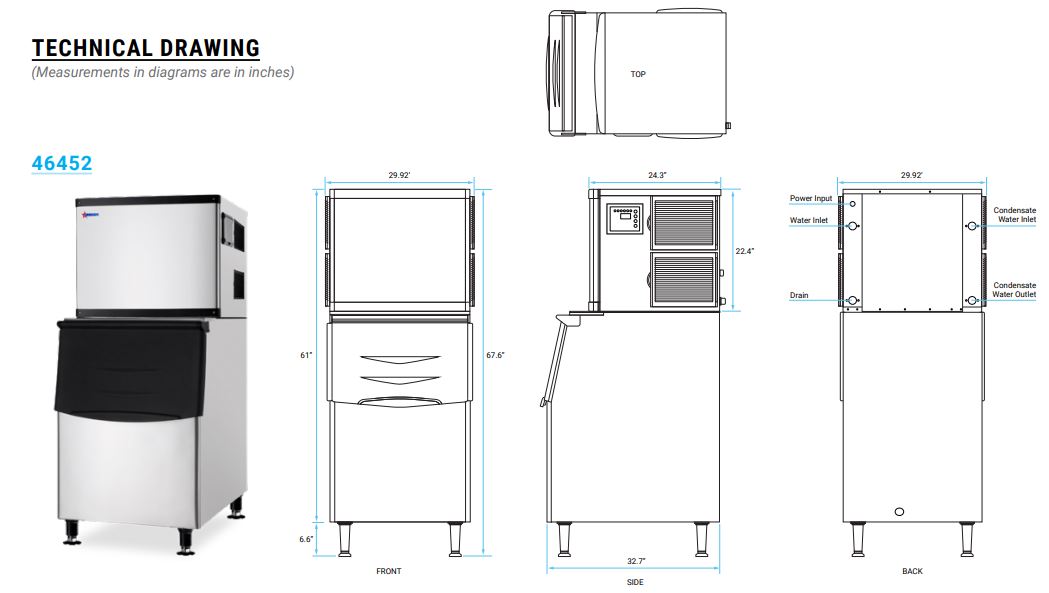

OVER-ALL DIMENSIONS (WDH): 29.9″ x 32.7″ x 67.6″ / 760 x 830 x 1718 mm ( including ice bin & feet)
ICE MAKER HEAD DIMENSIONS (WDH): 29.9″ x 24″ x 22″ / 760 x 618 x 568 mm
ICE BIN DIMENSIONS (WDH): 29.9″ x 32.7″ x 45″ / 760 x 830 x 1150 mm
ICE MAKER NET WEIGHT: 242.5 lbs. / 110 kg.
ICE MAKER GROSS WEIGHT: 264.6 lbs. / 120 kg.
ICE MAKER GROSS DIMENSIONS: 33″ x 29.5″ x 24″ / 845 x 750 x 620 mm
ICE BIN GROSS DIMENSIONS: 33.4″ x 35″ x 41.5″ / 850 x 890 x 1055 mm>>This equipment is intended for use in an indoor environment where ambient temperature and humidity do not exceed 24°C / 75°F and 55% relative humidity.
CAPACITY: 375 lbs. / 170 kg.
ICE SHAPE: Ice Cube
REFRIGERANT: R290
POWER: 1113 Watts
CONDENSER UNIT: Air
ELECTRICAL: 115V / 60Hz / 1Ph
OVER-ALL DIMENSIONS (WDH): 29.9″ x 32.7″ x 67.6″ / 760 x 830 x 1718 mm ( including ice bin & feet)
ICE MAKER HEAD DIMENSIONS (WDH): 29.9″ x 24″ x 22″ / 760 x 618 x 568 mm
ICE BIN DIMENSIONS (WDH): 29.9″ x 32.7″ x 45″ / 760 x 830 x 1150 mm
ICE MAKER NET WEIGHT: 242.5 lbs. / 110 kg.
ICE MAKER GROSS WEIGHT: 264.6 lbs. / 120 kg.
ICE MAKER GROSS DIMENSIONS: 33″ x 29.5″ x 24″ / 845 x 750 x 620 mm
ICE BIN GROSS DIMENSIONS: 33.4″ x 35″ x 41.5″ / 850 x 890 x 1055 mm>>This equipment is intended for use in an indoor environment where ambient temperature and humidity do not exceed 24°C / 75°F and 55% relative humidity.
