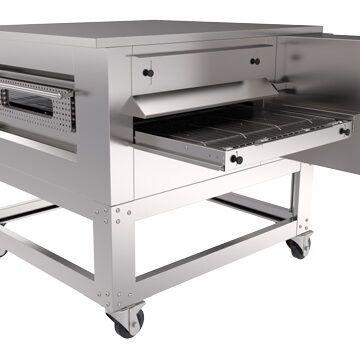

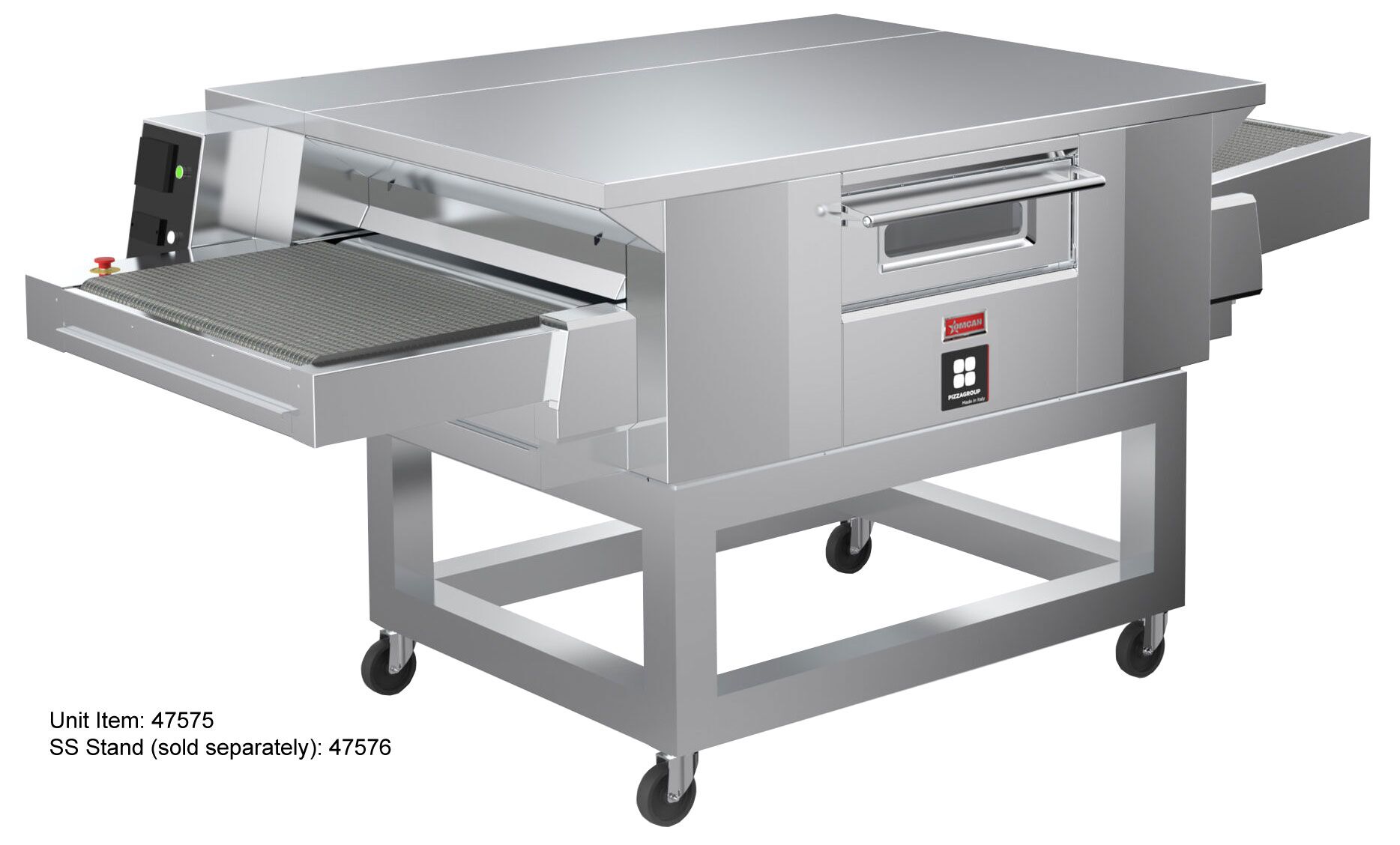

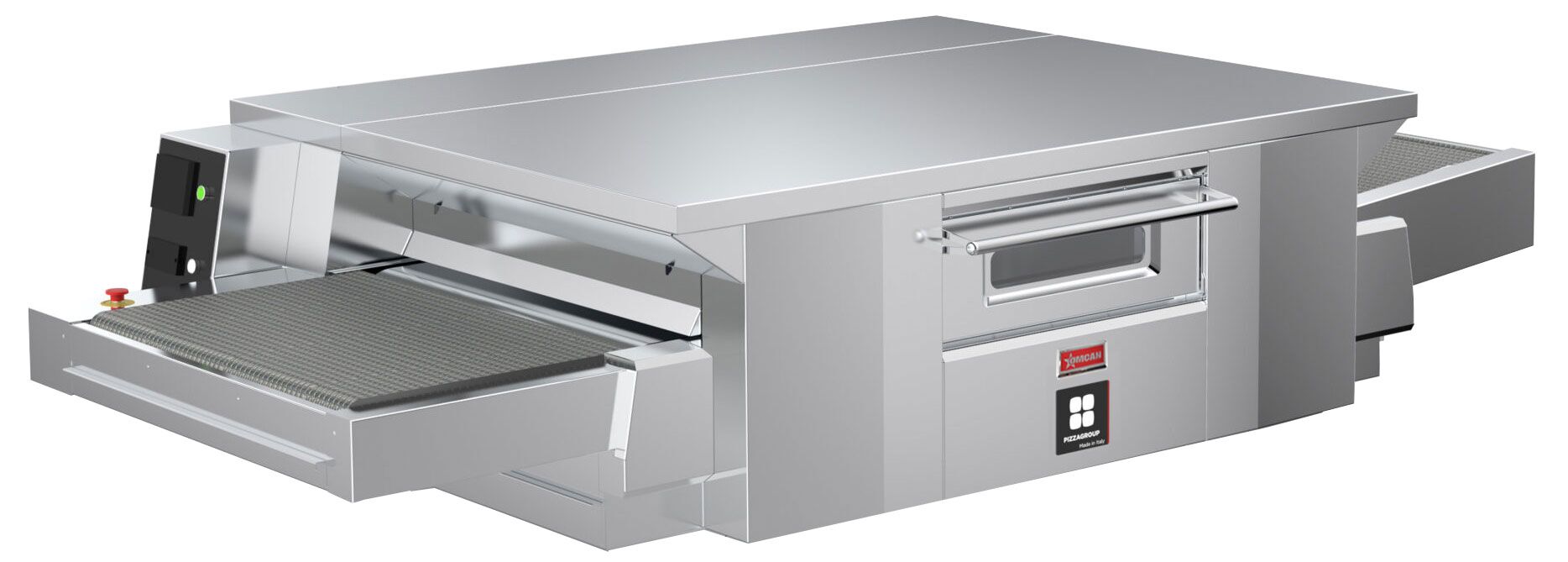

Dragon is the maximum expression of Italian quality and design. The oven is made from stainless steel, including the internal structures, which guarantees long lasting beauty and strength. Ideal for semi-industrial production output, thanks to our ADPV System, it has been engineered to deliver perfect control over pizza baking parameters. It is easy to adjust and energy efficient. The result is continuous production of consistently baked pizza, with all the flavor and distinctive marking of the best hearth baked crust combined with the labor savings and speed of a refractory stone conveyor.
GENERAL FEATURES:
ADPV System:The right amount of power, always at the right time. Dragon continuously senses your level of productivity and automatically sets the correct amount of power needed to guarantee the perfect cooking temperature. Dragon also helps to save energy when it senses it is in low productivity and automatically knows when it’s time to switch into idle mode
3-zone: Possibility to set 2 different temperatures on the top, for perfect results also with products requiring different temperatures at the start and finish
Refractory stone cooking surface: More crispy and long lasting results. Bake any product directly on the stone without the need to use trays or pans
Dual rotation of the belt: Dragon can easily be adjusted to allow loading and unloading according to your needs
840 °F (450 °C) max temperature: Perfect for any type of dough, also high hydration products requiring a very short cook time, like Napoli style pizza
Insulated center double glass door: Easily insert a pizza slice or sandwich and check the cooking chamber at any time

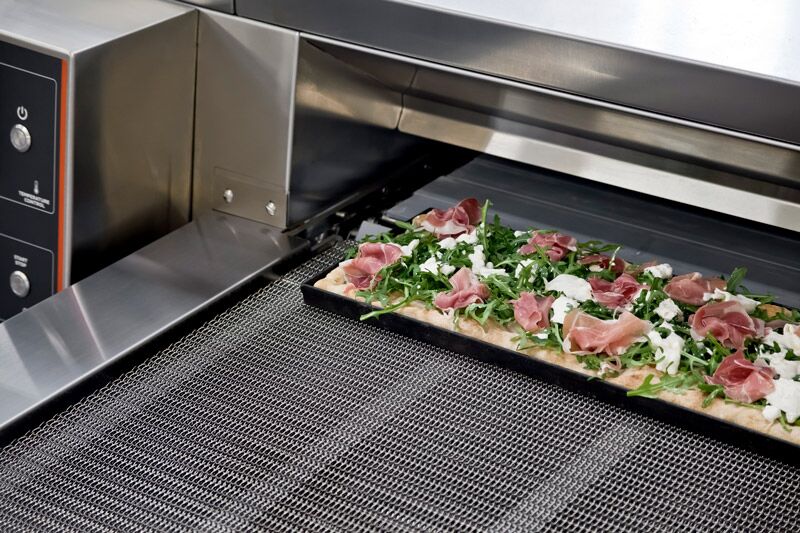

Special mesh infeed and outfeed conveyor belt: Easily interchangeable and adjustable
Detachable control panel: Can be positioned on any side of the Dragon, left, right, top or even on the wall, according to your needs

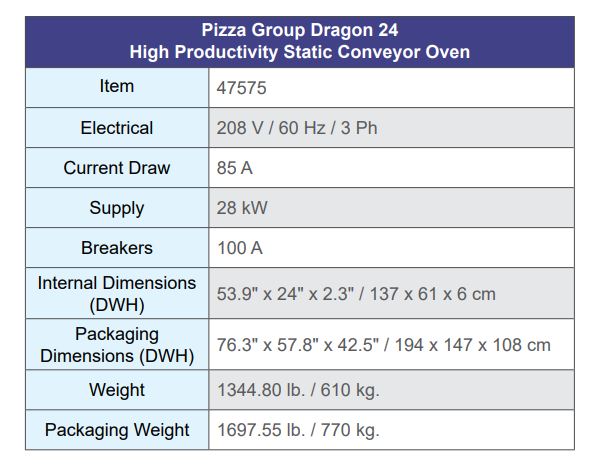

SPECIFICATIONS
ELECTRICAL: 208V / 60Hz / 3Ph
CURRENT DRAW: 85A
SUPPLY: 28kW
BREAKERS: 100A

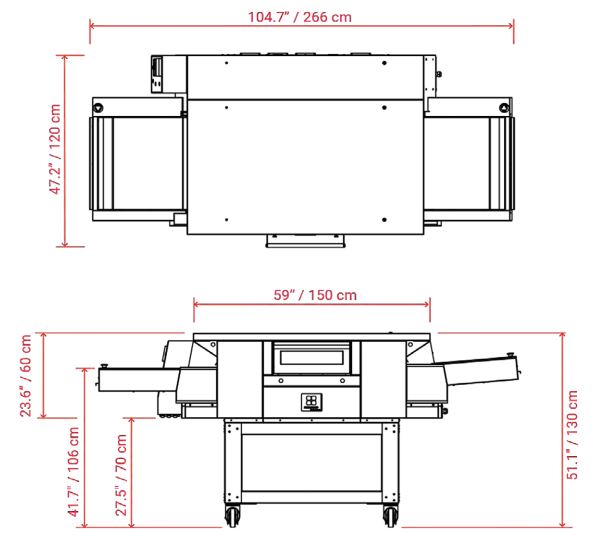

INTERNAL DIMENSIONS (LWH): 53.9″ x 24″ x 2.3″ / 137 x 61 x 6 cm
PACKAGING DIMENSIONS (LWH): 76.3″ x 57.8″ x 42.5″ / 194 x 147 x 108 cm
WEIGHT: 1344.80 lbs / 610 kg.
PACKAGING WEIGHT: 1697.55 lbs. / 770 kg.
