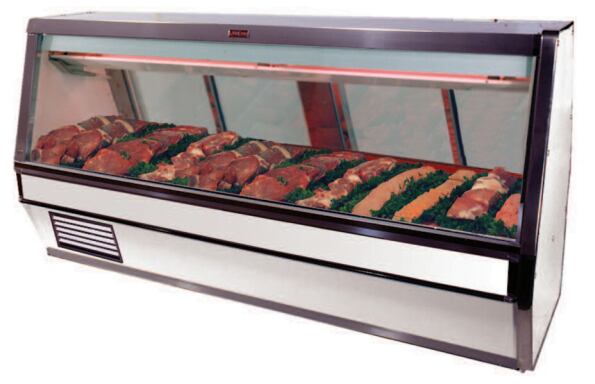

Howard McCray Red Meat Service Case 40″D x 53″ H x 12′ L
CAD $16,868.00 OR $786.17/mo
Howard McCray SC-CMS40E-12-LED
Please Note These are Special Order Units. Contact us for delivery schedule.
Standard Features:
- CONSTRUCTION
• UL Classified to ANSI/NSF 7
• Foamed in place CFC free foam
• Thermal insulated front glass – 28″ H
• Heavy gauge steel super structure
• Single duty display
• Endless design allows for continuous line up
• Drain is included for cleaning
INTERIOR
• White, black, and stainless steel ends
• Air insulated baffle (prevents moisture from
dripping into display area)
EXTERIOR
• Double pane rear removable doors
• Newly designed rear compression door jamb
• Removable front grille allows for cleaning
• Removable rear grille for easy servicing
• 2 – 1/4″ removable end panels
• 1″ Front bumper
FINISHES
• White, black, and stainless steel front and ends
• Stainless steel mirror trim
• Stainless steel heavy gauge top – 20″ W
• Rear of unit is stainless steel brush finish at top
• Bottom rear is designer white or glossy black
LIGHTING
• 2 rows of LED lighting at top of unit - ELECTRICAL REQUIREMENTS
• 12′ Unit must be hard wired
• UL/CUL listed
REFRIGERATION
• Copevap system (eliminates need for
condensate pan)
• R513A expansion valve system (SC)
• R448A expansion valve system (R)
• Humidity coil located at inside top of unit
• Self contained unit
• Automatic defrost electronically controlled
(self contained units only)
• Electronically maintains constant temperatures
• Remotes available
DESCRIPTION
40E Series Straight Glass Red Meat Service Case,
Single duty, Endless design for continuous line ups
Self-contained refrigeration-R513A, automatic condensate pan, temperature and defrost electronically controlled;
(2) rows LED lights at top of unit, full length gravity coil system, extra humidity coil at the main deck,
Bright stainless steel 20″ top, white interior & exterior, 1″ gray boston bumper, double pane removable rear glass doors,
UL listed, UL classified to ANSI/NSF7

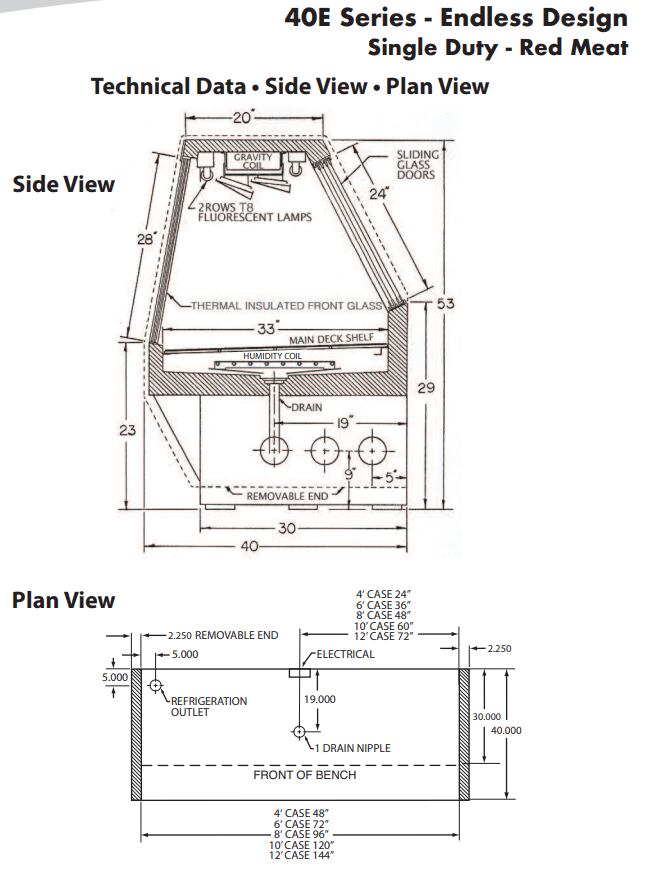

SPECIFICATIONS
