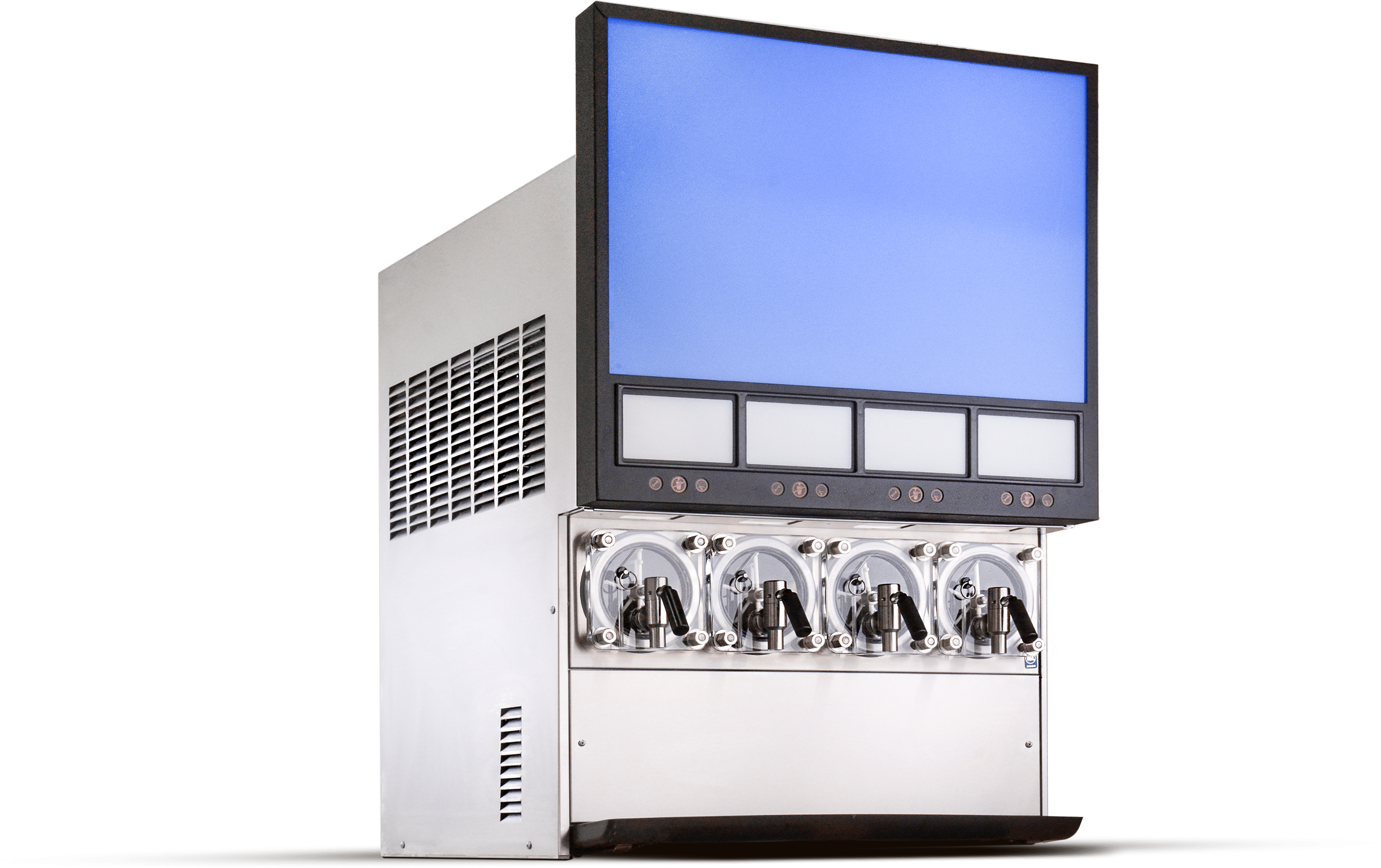

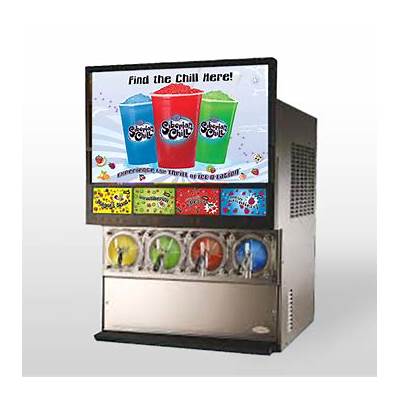

Viper™ Frozen Beverage Dispenser, carbonated, countertop, (4) flavors, self-contained refrigeration, air-cooled, (4) Motorman valves, Intelligent Defrost™, programmable sleep mode, short merchandiser (graphic & flavor cards sold separately), stainless steel side panels, R448A, 230v/60/1-ph, NEMA L6-30P, cULus, NSF, CE, ADA Compliant
Electrical Requirements 230V +/- 15V 60Hz, 30 amp, single phase
Includes 8ft. power NEMA L6-30P molded plug connection. Part Numbers ending in
“EU” SKU’s include 8ft. power cord IEC60309 32Amp molded plug connections
Pressure Requirements CO2 = 75 psig Water = 25 min psig dynamic
Draw Capacity 75-82 oz/min continuous, alternating barrels @ 75° F (24°C)
Refrigeration 19,000 BTU, R404A
Minimum Clearance Requirements: Top: 12” (305mm) Both Sides: 2” (51mm) -or- Back: 2” (51mm)
for temperatures < 90°F (32°C)
Unit Dimensions 29”W x 32.5”D x 37”H (577.85mm x 825.5mm x 939.8mm)
Graphic Card Dimensions 28.75”W x 11.79”H (730.25mm x 299.5mm)
Flavor Card Dimensions 6.5”W x 4”H (165.1mm x 101.6mm)
Unit Weight 470lbs (213.2kg)

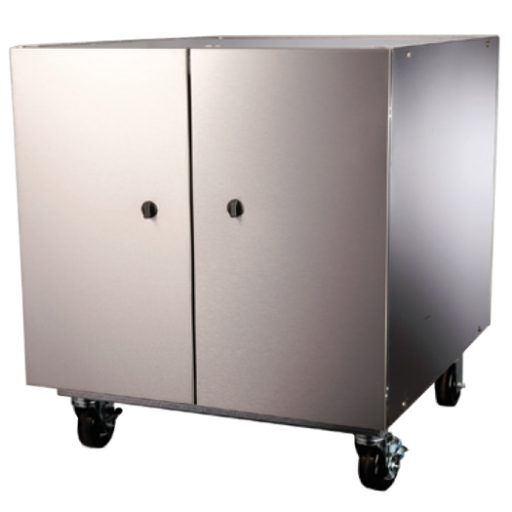

Shipping Weight Unit: 500lbs (226.8kg) Cart: 200lbs (90.72kg)
90 Days Parts & Labour Warranty with 1 Year Compressor Warranty
*Customer must supply Co2, syrup, water supply, drainage, and electrical hook ups. *
