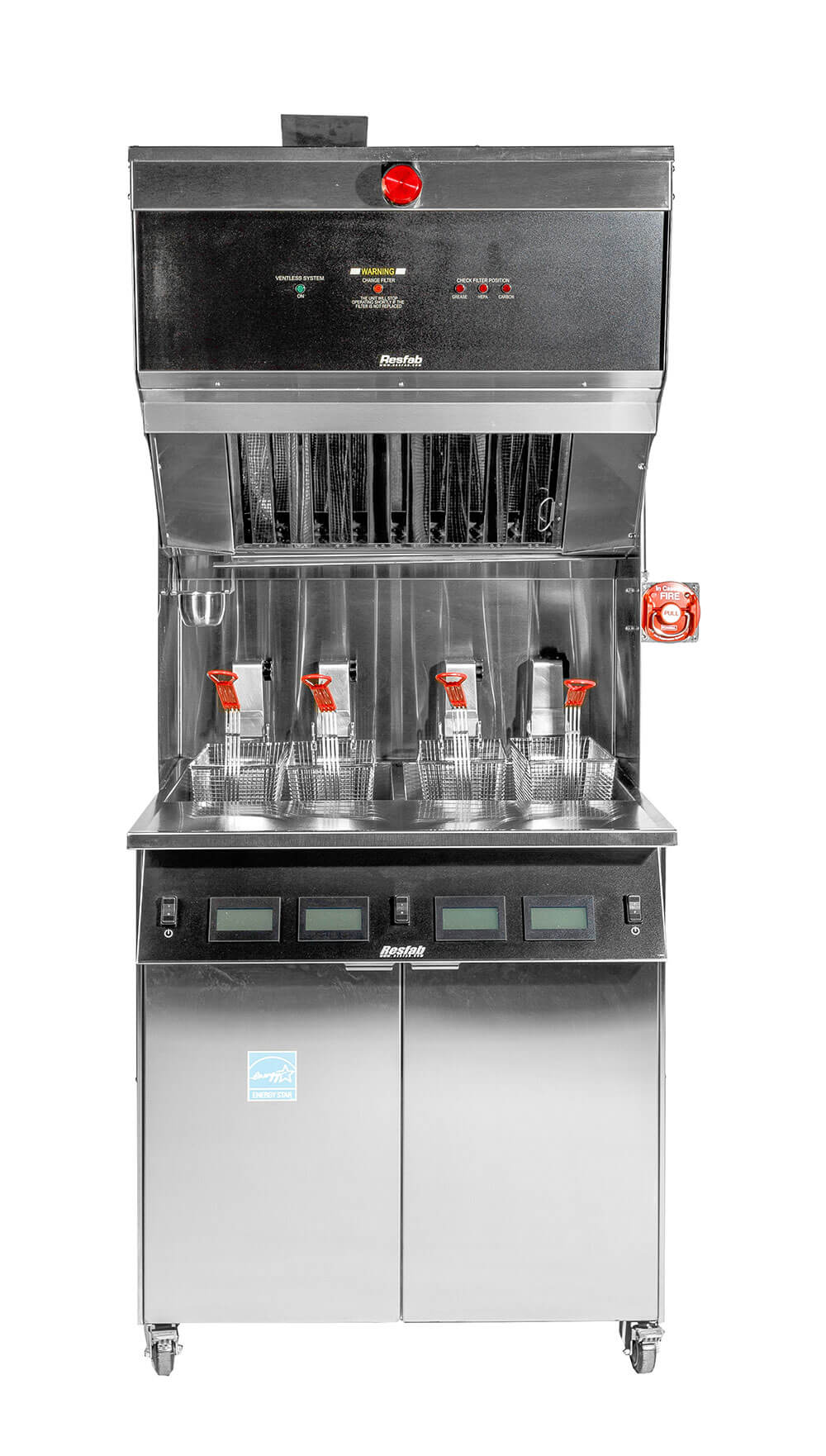

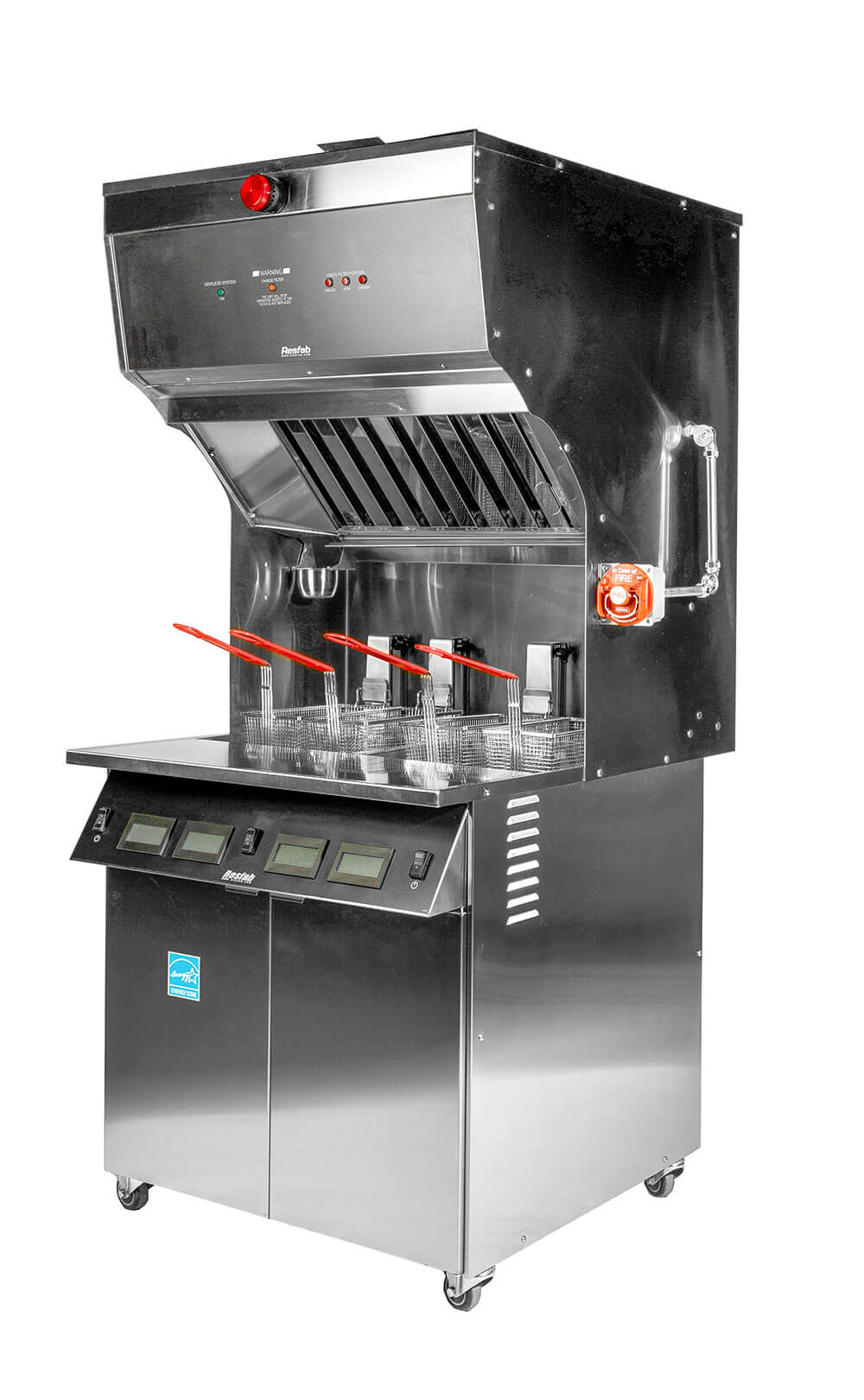

Resfab Electric Floor Deep Fryer Ventless with Auto Lift MB-502ATV-iF

CAD $48,998.00 OR $2487/mo

green and white straight oval with free shipping and *most major Canadian Cities * in white letters

Resfab Electric Floor Fryer Ventless with Auto Lift MB-502ATV-iF Features:

  • Multi-Basket Configurations: The Auto-Lift System allows for the use of one large basket or two independently operating half-size baskets per well.
  • Idle mode
  • “Sleep Mode” Equals Oil Savings: Fryer automatically goes into Sleep Mode at 200oF after 30 minutes of non-use. There are two additional pre-set idles programs.
  • Zero recovery Time: The operator can fry batch after batch without waiting for the fryer temperature to recover.
  • No Manipulation of Hot Parts: The filtration tank slides into the fryer’s self-leveling connection and automatically connects to the pump pipe; reducing risk of injury as no hot parts to touch.
  • Easy and Safe Transportation & Removal of Shortening/Oil: A removable handle attaches to the filtration tank which comes equipped with casters.
  • Independent Power Supply: Each vat has its own power supply. If a problem occurs with one vat, the other vat will continue to operate.

Touch Screen Controller Feature

  • User Friendly: Each screen is easy to navigate and operator friendly, simplifying training and daily operation.
  • 40 Programmable Menus: Including: Product name, cook time, temperature, alarm to “add product”, “stir”, “end alarm“ and more.
  • P.I.N. for the Controller Access: The Personal Identification Number controls the direct access to programs such as “Menu”, “Filtering lock-out”, and more.
  • Oil Filtering Lock-out: The filtering lock-out allows the operator to pre-set the filtering frequency. There is no filter over-ride without the P.I.N., leading to a better quality product and oil, and increased oil savings.
  • Warnings informs the operator of the state of the drain and discharge / rinse mode.
  • No filter override 2 Half Size Baskets Full Size Basket

Ventless Hood System:

  • Integrated Fire Suppression System: The ventless fryer comes equipped with an integrated (Ansul R-102) fire suppression
    system. The unit is ready for the final charging and testing to be performed on site by an authorized Ansul distributor.
  • Integrated Alarm System: Unit has self contained alarm system with interlock ready to connect to the store alarm if required by
    your local fire code.
  • Ventless Hood System: Exceeds EPA Standard 202 for the release of particulate matters and meets NFPA 96 standards.

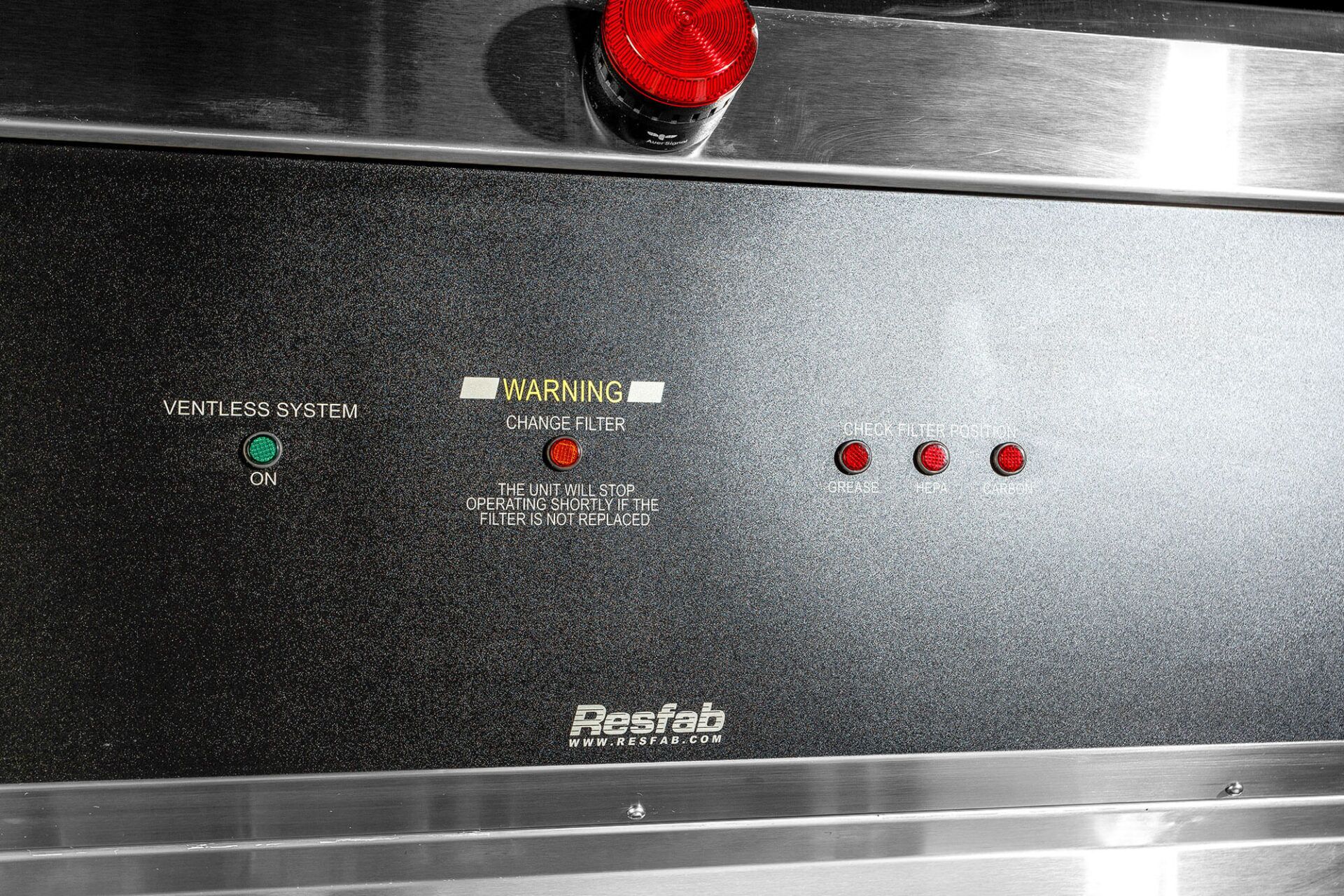

  • Indicator Light: An indicator light will go on to provide advanced warning that the filter needs to be replaced.
  • Air-Flow Sensor: A built-in sensor will automatically shut off the fryer if the HEPA filter is not replaced when required.
  • Guaranteed Performance: If the filters are not installed or secured properly, an “interlock” system will not allow the fryer to

SHIPPING: Requires 7 to 10 Business Days


The MB-502ATV is a Multi-Basket, High-Volume Auto-Lift Fryer with Touch Screen Controls, Built-in Filtration, and numerous features. Resfab’s fryers help streamline and simplify operations while ensuring product consistency and safety.


Thank you for viewing our quality commercial restaurant equipment online at The Foodservice Equipment Depot. We are your trusted food equipment supply store in Canada based out of Calgary, AB. The FED has answers for your how-to’s, product guides, specifications, drawings, discount pricing and shipping questions. If you are wanting to buy used or new food equipment in stock at our warehouse, please contact us today for a quote.

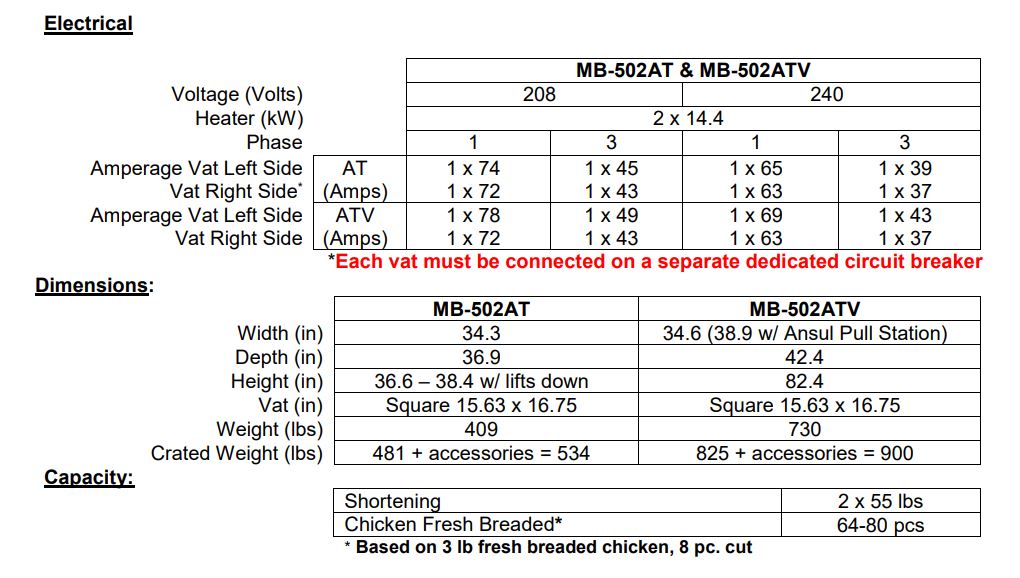

Download Spec Document


Voltage (Volts) 240
Heater (kW) 2 x 14.4

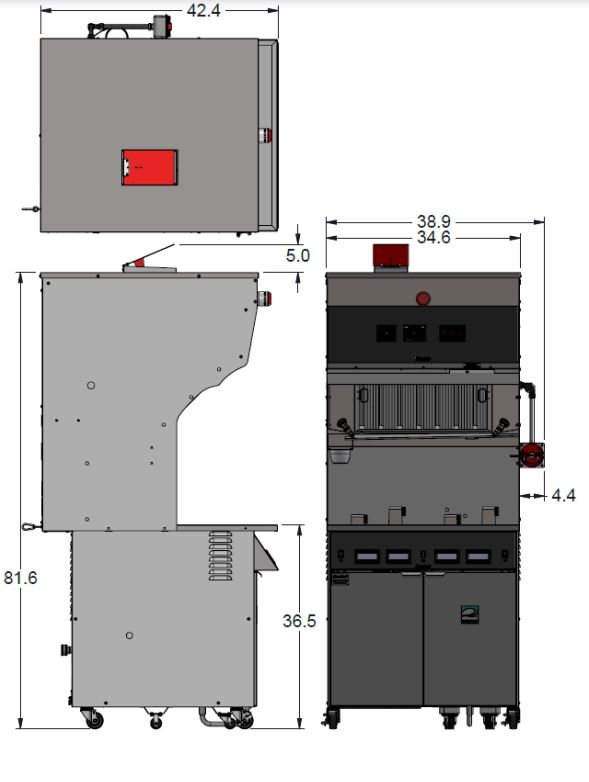

Width (in) 34.6 (38.9 w/ Ansul Pull Station)
Depth (in) 42.4
Height (in) 82.4
Vat (in) Square 15.63 x 16.75
Weight (lbs) 730
Crated Weight (lbs) 825 + accessories = 900
