With rotating features to dispersed evenly throughout with controlled heat
The main advantages compared to the competition are:
– Baking floor made of REFRACTORY COTTO, not of concrete.
– SPITFIRE GAS BURNER is tailor-made to satisfy the baking requirements of the oven.
– R.H.S.® System (Recycling Heating System) that allows heat recovery and use, by making it circulate at very high temperatures under the baking floor.
– Use of the best insulation materials available on the market.
These features allow a remarkable consumption saving and an easy achievement of temperature suitable also for Neapolitan pizza. Moreover, the easy and reliable control panel allows easy control of all the oven functions such as the baking temperature, the floor rotation speed, the baking time, and the temperature of the RHS System.
FEATURES:
• Choice of Pre-Cast Modular or pre-assembled pizza ovens.
• Presents a spectacular cooking display, adding ambiance.
• Low maintenance cooking.
• Cost-effective operation with a choice of wood-only, gas-only, or gas/wood combination.
• Fast cooking times – a pizza will cook perfectly in 2-3 minutes.
• Ability to cook an array of different foods – from pizzas to your complete menu.
• Enhanced flavors – your customers will love the Versatility – ability to utilize different cooking methods; baking, braising, stewing, sautéing, grilling, smoking, roasting, searing in juices, maintaining moisture & flavor, and preventing food from drying.
• Extremely durable and – built to last.
• Made in and fully imported from Italy.
• Easy to install.
Thank you for viewing our quality commercial restaurant equipment online at The Foodservice Equipment Depot. We are your trusted food equipment supply store in Canada based out of Calgary, AB. The FED has answers for your how-to’s, product guides, specifications, drawings, discount pricing and shipping questions. If you are wanting to buy used or new food equipment in stock at our warehouse, please contact us today for a quote.

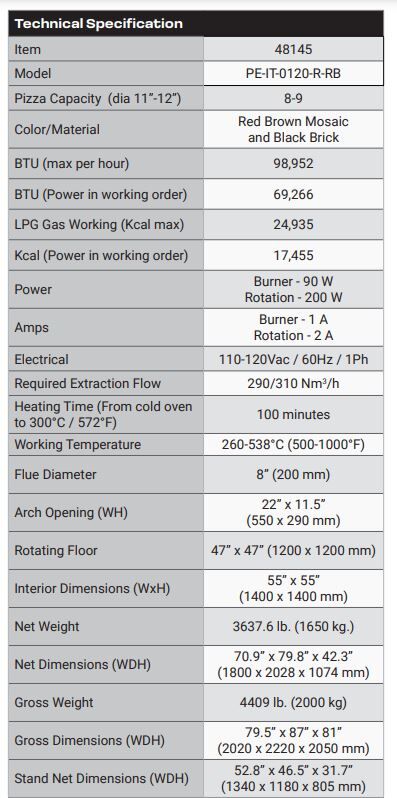

Pizza Capacity (dia 11”-12”): 8-9
Color/Material: Red Brown Mosaic and Black Brick
BTU (max per hour): 98,952
BTU (Power in working order): 69,266
LPG Gas Working (Kcal max): 24,935
Kcal (Power in working order): 17,455
Power: Burner – 90 W | Rotation – 200 W
Amps: Burner – 1 A | Rotation – 2 A
Electrical: 110-120Vac / 60Hz / 1Ph
Required Extraction Flow: 290/310 Nm3/h
Heating Time (From cold oven to 300°C / 572°F): 100 minutes
Working Temperature: 260-538°C (500-1000°F)
Flue Diameter: 8” (200 mm)
Arch Opening (WH): 22” x 11.5” (550 x 290 mm)
Rotating Floor: 47” x 47” (1200 x 1200 mm)
Interior Dimensions (WxH): 55” x 55” (1400 x 1400 mm)
Net Weight: 3637.6 lb. (1650 kg.)
Net Dimensions (WDH): 70.9” x 79.8” x 42.3” (1800 x 2028 x 1074 mm)
Gross Weight: 4409 lb. (2000 kg)
Gross Dimensions (WDH): 79.5” x 87” x 81” (2020 x 2220 x 2050 mm)
Stand Net Dimensions (WDH): 52.8” x 46.5” x 31.7” (1340 x 1180 x 805 mm)
