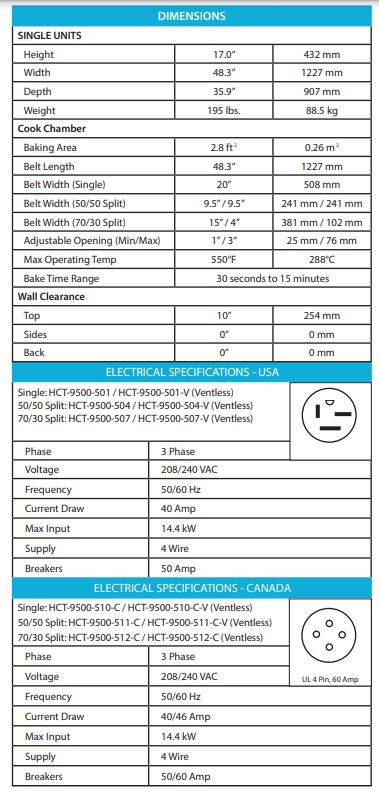

SPECIFICATIONS
Exterior Construction: Stainless Steel
Interior Construction: Stainless Steel

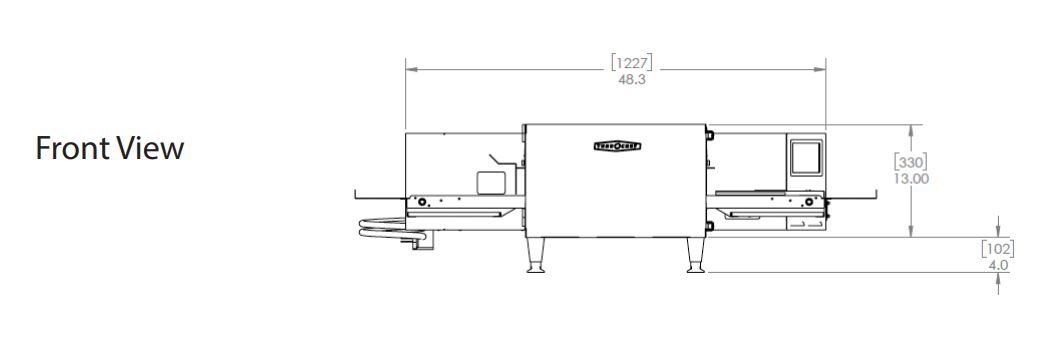

Oven Height: 17 in | 432 mm
Oven Width: 48.3 in | 1227 mm

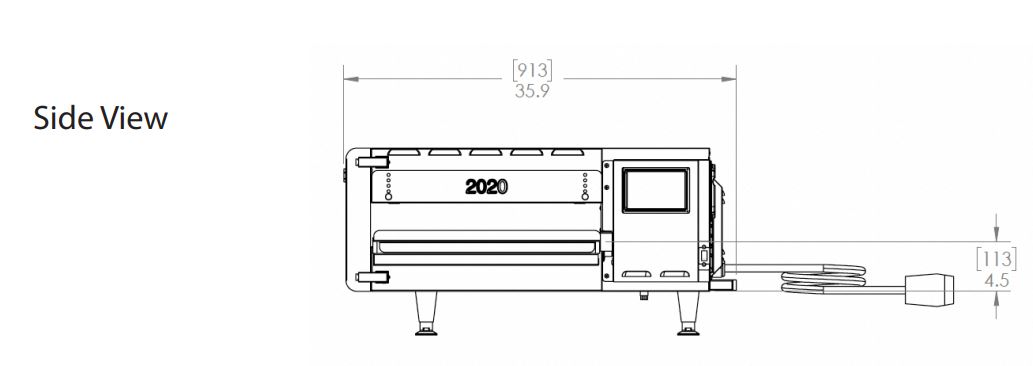

Oven Depth: 35.7 in | 907 mm
Oven Weight: 195 lb. | 88.5 kg
Baking Area: 2.8 sq.ft. | 0.26 sq.m.
Belt Length: 48.3 in | 1227 mm
Single Belt Length: 20 in | 508 mm
50/50 Belt Width: 9.5/9.5 in | 241/241 mm
70/30 Belt Width: 15/4 in | 381/102 mm
Adjustable Opening (Min/Max): 1 to 3 in | 25 to 76 mm
Max Operating Temperature: 600 ?F | 316 ?C
Bake Time Range: 31 seconds to 15 minutes
Wall Clearance Top: 10 in | 254 mm
Wall Clearance Sides: 0 in | 0 mm
