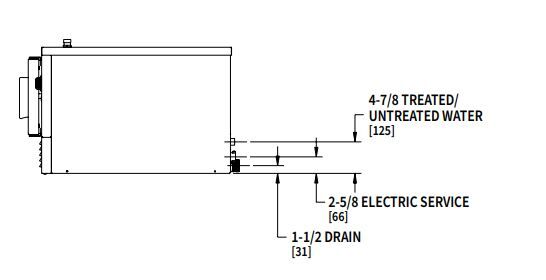

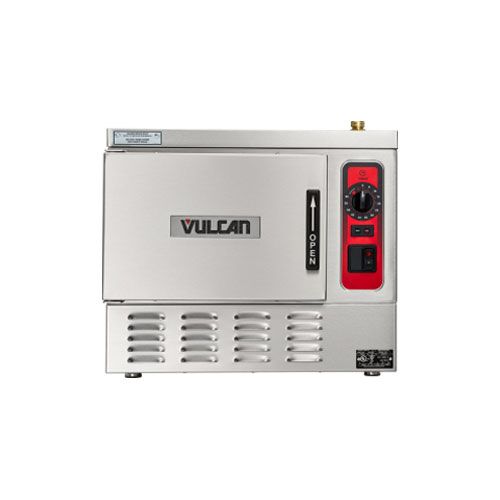

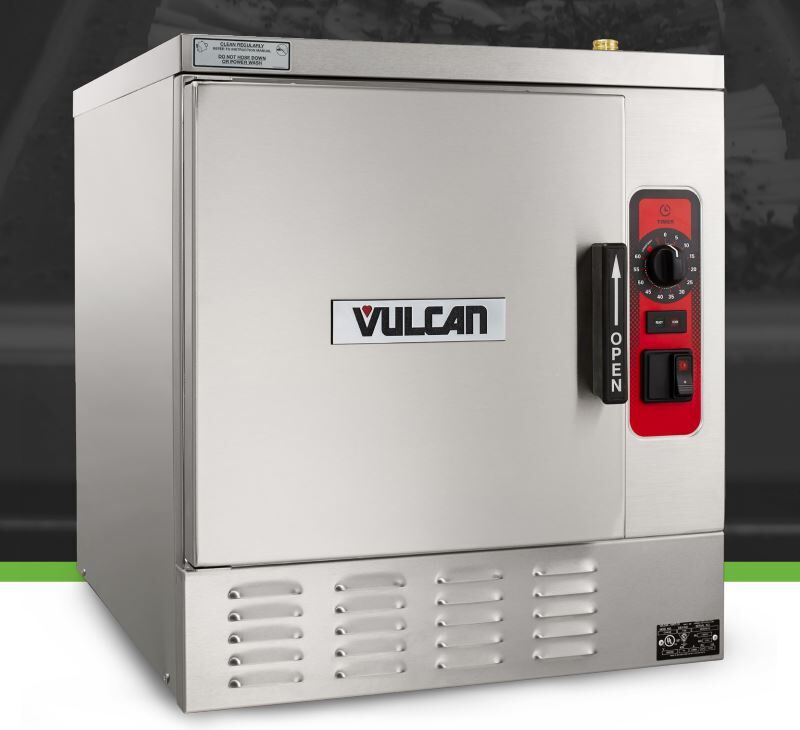

Single compartment electric convection steamer. Professional Controls with 60-minute timer, buzzer and constant steam feature, cook/ready lights and power switch. High output stainless steel generator with SmartDrain and Powerflush along with 2-speed staged water fill for superior heat-up and steam quality. Stainless steel exterior and cooking compartment with coved interior corners. Heavy duty door and door latch mechanism with door gasket guard. Shipped for 208/60-50/3 electrical service. Can be field converted to 208/60-50/1, 240/60-50/3 and 240/60-50/1. Split water line connection. 11 ⁄2″ NPT drain connection.
Thank you for viewing our quality commercial restaurant equipment online at The Foodservice Equipment Depot. We are your trusted food equipment supply store in Canada based out of Calgary, AB. The FED has answers for your how-to’s, product guides, specifications, drawings, discount pricing and shipping questions. If you are wanting to buy used or new food equipment in stock at our warehouse, please contact us today for a quote.

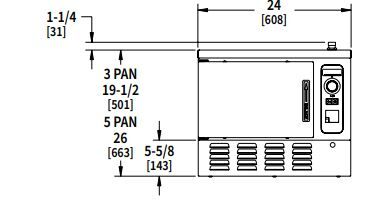

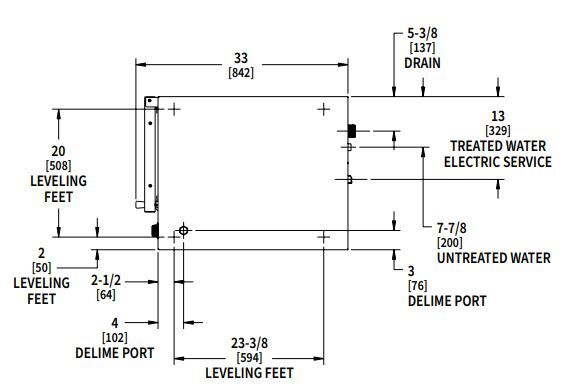

Vulcan-C24EA5-PLUS-3PH-208V Specs
Width 24.00 Inches
Depth 33.00 Inches
Height 26.00 Inches
Weight 165 Lbs

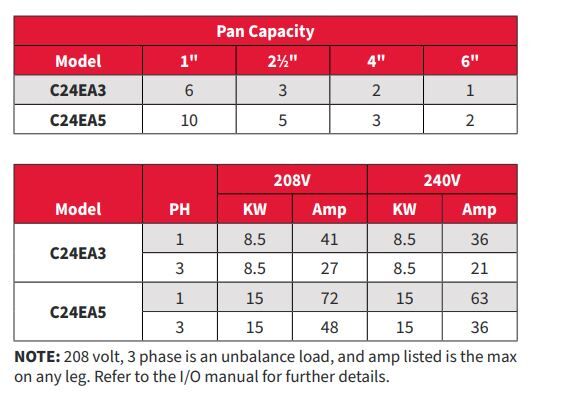

Capacity 5 Pans
Number of Compartments 1
Steam Source Steam Generator
Voltage 208 Volts
Amperage 48 Amps
Wattage 15 KW
Hertz 60 Hertz
Phase 3 Phase
Connection Hard Wire
