24″ x 18″ x 10″ Corner Drain Single Compartment Bar Sink With left Drain Board S1B-1L-V

Name: 24″ x 18″ x 10″ Corner Drain Single Compartment Bar Sink With left Drain Board S1B-1L-V
Brand: FED
SKU: S1B-1L-V
Price: 732.9 CAD
Availability: InStock
Rating: 5 (1 reviews)

CAD $698.00 OR $35/mo

green and white straight oval with free shipping and *most major Canadian Cities * in white letters

24″ x 18″ x 10″ Corner Drain Single Compartment Bar Sink With left Drain Board S1B-1L Features:

18 gauge, Type 304 stainless steel construction for lasting durability.
Coved corners for safety and easy cleaning.
Die-stamped drain boards and sink bottoms for positive drainage.
Wall clips are provided for neat and easy installation.
All sinks come with 4” center pre-cut holes for standard wall mount faucets (faucet not included).
Corner drain sink with a 1½” diameter drain hole and come with 3.5” drain basket.
Sink wells are 10” deep.
All TIG welded.
Welded areas are blended to match adjacent surface and blended to a satin finish.

SHIPPING: Requires 3 to 5 Business Days

Compare

Description

The EFI Standard Bar Sink SIB-1L is a single-compartment stainless steel sink designed for commercial use. It features 18 gauge, Type 304 stainless steel construction with coved corners for safety and easy cleaning125. The sink measures 24″ x 18″ x 10″ and includes a left-side drainboard that is 11 3/4″ wide24. It comes with a corner drain featuring a 1½” diameter drain hole and a 3.5″ drain basket4. The sink is TIG welded with welded areas blended to match the adjacent surface, and it includes galvanized legs with adjustable plastic bullet feet

Thank you for viewing our quality commercial restaurant equipment online at The Foodservice Equipment Depot. We are your trusted food equipment supply store in Canada based out of Calgary, AB. The FED has answers for your how-to’s, product guides, specifications, drawings, discount pricing and shipping questions. If you are wanting to buy used or new food equipment in stock at our warehouse, please contact us today for a quote.

Download Spec Document

EFI-SIB-1L
Width 24.00 Inches
Depth 18.75 Inches
Height 37.00 Inches
Weight 67 Lbs
Sink Width 10.00 Inches
Sink Depth 14.00 Inches
Sink Height 12.00 Inches
Drain Location Corner
Drain Size 1-7/8 Inches
Drain Board 1
Gauge 18 Gauge
Material Stainless Steel
Number of Sinks 1

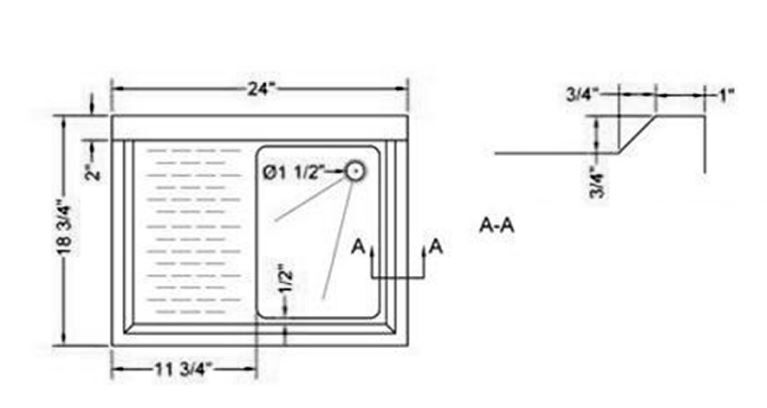

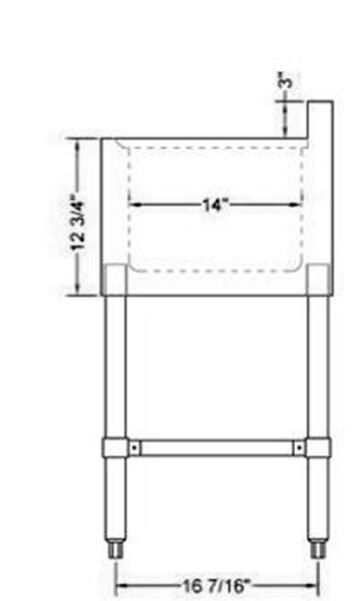

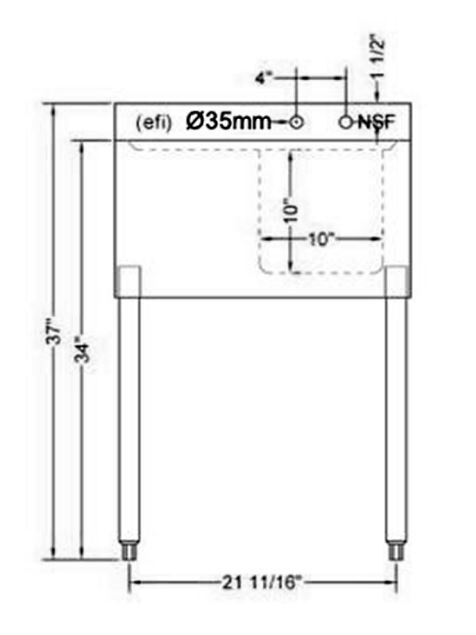

DOWNLOAD DRAWINGS
