SPECIFICATIONS
Open Display Case, 72-1/16″W, 41.0 cu. ft. capacity, bottom mount self-contained refrigeration, open front, solid side panels, (4) adjustable shelves, LED interior lighting, rear air guard, night curtain, pre-coated steel exterior, non-peel powder-coated steel interior, 1HP, 115-230v/60/1-ph, NEMA L14-20P, cUL, UL, ETL-Sanitation

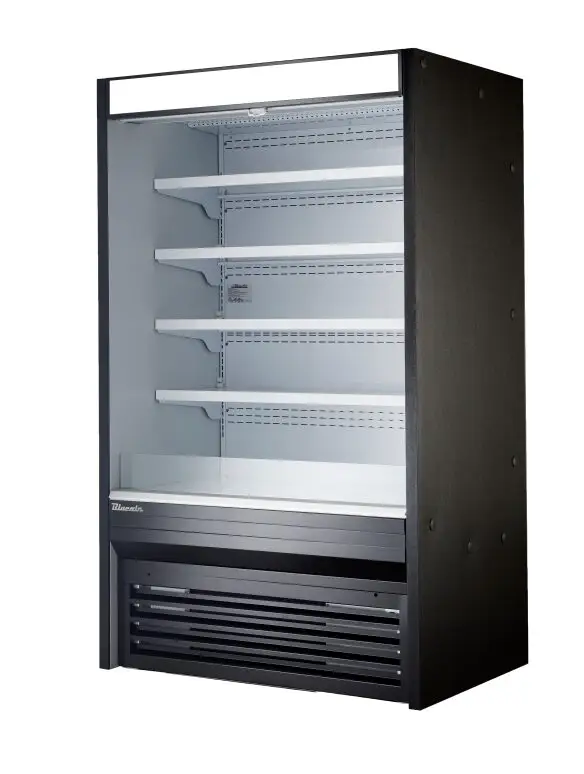

The BOD-72S Open Display Case by Blue Air is designed to provide the most excellent display and storage of your merchandise for easy access and viewing!
A stainless steel interior and exterior construction reinforced with high-density polyurethane insulation give this unit strong structural integrity that ensures not only maximum freshness and product quality but also cost-effective cooling performance.
The versatile 72 1/16″ long merchandiser has solid side panels with a spacious 41 cubic ft. interior that can house a wide variety of items such as beverages, prepackaged meals, and sodas. Four (4) shelves can be adjusted in one-inch increments to give you the flexibility you need for content variety. LED lighting illuminates the interior beautifully to instantly grab your customer’s attention.
Operating at a temperature of 38 to 44ºF, the Blue Air BOD-72S Open Display Case has immediate access to colder air via the bottom-mount compressor with 1 HP. This convenient location along with a sliding condensing unit allows for easy access during cleaning and service. The standard night curtains should an extra layer of protection from spoilage while a standard rear air guard ensures there’s plenty of air circulation inside.
With a commitment to maintaining environment-friendly commercial refrigeration, Blue Air uses an R404A refrigerant with zero depletion level to cool the contents without a negative impact on the environment.
With a perforated interior back wall and top vents paired with a front air intake and a rear vent, this model can be placed against a wall without decreased functionality and power. And thanks to the self-contained refrigeration system, this unit is ready to use with no setup needed.
The Blue Air BOD-72S Open Display Case is an Energy Star unit with cETLus, UL, and ETL-Sanitation certification. This model is rated at 15 amps and uses a 115v/60/1-ph electrical connection with NEMA 5-20P plugging.
Thank you for viewing our quality commercial restaurant equipment online at The Foodservice Equipment Depot. We are your trusted food equipment supply store in Canada based out of Calgary, AB. The FED has answers for your how-to’s, product guides, specifications, drawings, discount pricing and shipping questions. If you are wanting to buy used or new food equipment in stock at our warehouse, please contact us today for a quote.

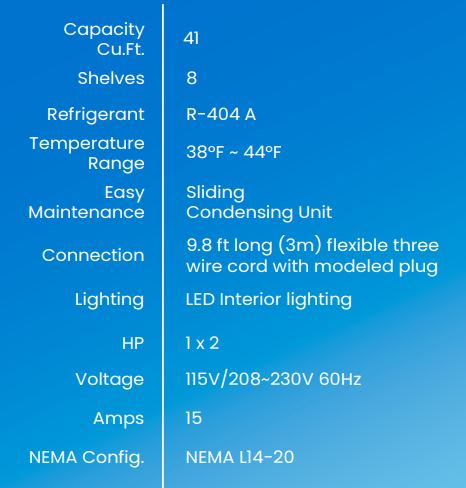

Capacity: 41 cu. ft.

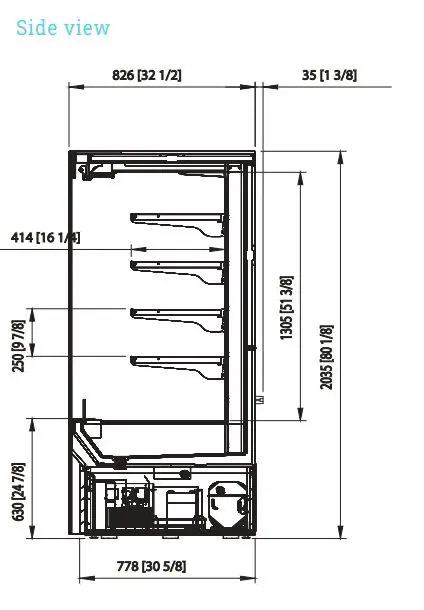

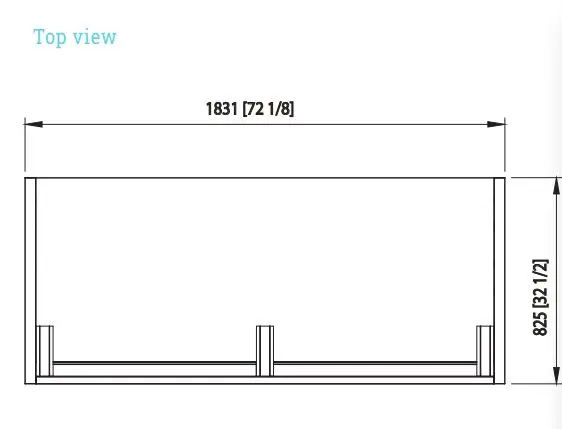

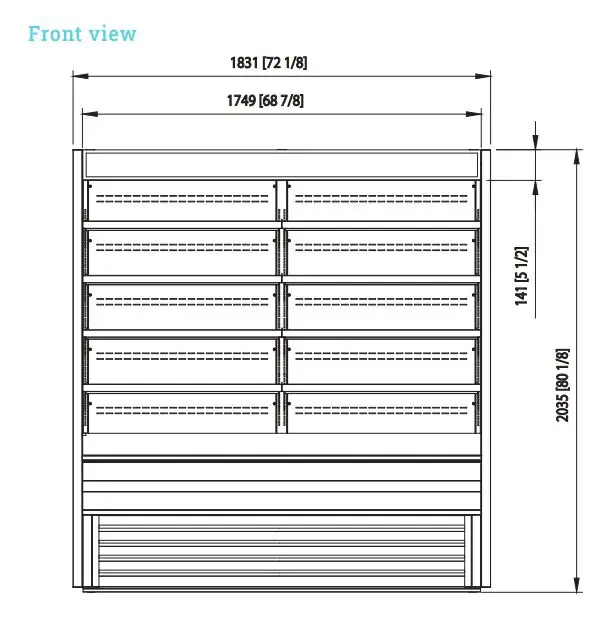

Exterior Dimensions ( L x D x H ): 72 1/8 x 32 1/2 x 80 inch
Net Weight: 743 lb
Shelves: 8
Compressor: 1 *2 HP
Refrigerant: R-404A
Temperature Range: 38℉ ~ 44℉
Input (Voltage / Hz / Phase): 115V/208~230V/60Hz
Amps: 15
