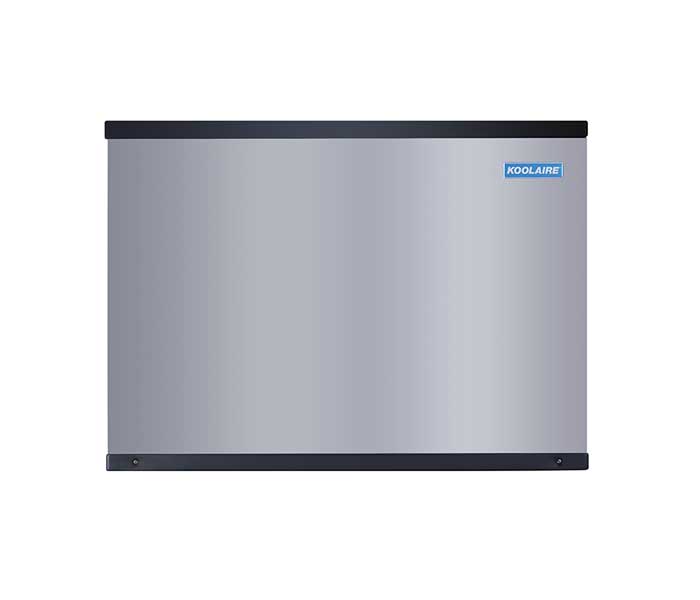

The Koolaire KDT-0300A ice maker head usually produces 230 pounds of ice in 24 hours. It makes full-cube ice, which is ideal for almost any application. Full cubes melt slowly but do not take up as much space in glasses as other ice types. Bins and dispensers for this head must be bought separately. An ice deflector is required when the machine is paired with a bin but not when paired with a dispenser. The exterior has a finish that resists smudges, and the white plastic components in the food zone—the area that houses the components in contact with ice and water—can be cleaned quickly. An air-cooled baffle prevents air from recirculating from the condenser.
To produce ice, the toggle switch on the Koolaire KDT-0300A ice machine head must be turned to its “ice” setting. Old water is purged from the trough, and cold air is blown over the refrigerant lines to cool them down. This design cools the evaporator so that the plate is chilled. Fresh water runs over the evaporator plate, and water freezes in the individual cells to form cubes. Once the cubes are frozen, refrigerant warms the evaporator plate enough to release them.
Note: This unit must be paired with an ice maker bin or ice dispenser.
Manufacturer Koolaire

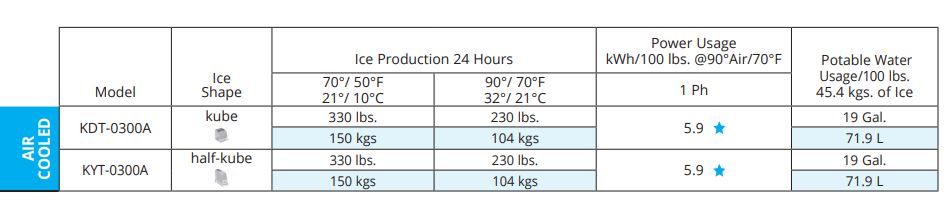

24 Hr. Production (lb) 330
Access Lift Up Door
Bin Capacity (lb) 365
Compressor Type Air Cooled

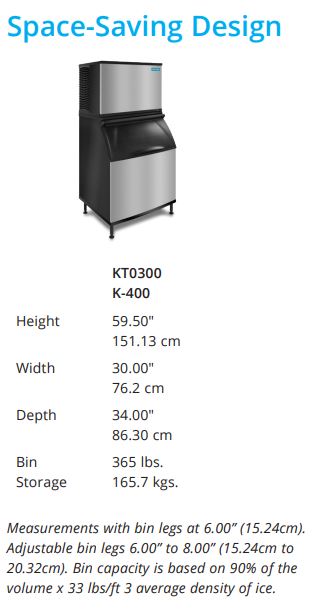

Depth (in) 34
Height (in) 59.5
Hertz 60
Ice Type Full Cube
Voltage 115
Warranty 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor
Width (in) 30
Series KDT Series
Phase 1
Rating Better
Product Ice Machines with Bins
Product Type Ice Makers & Bins
Weight 228.00
