SPECIFICATIONS
High Performance and Quality Commercial Freezer

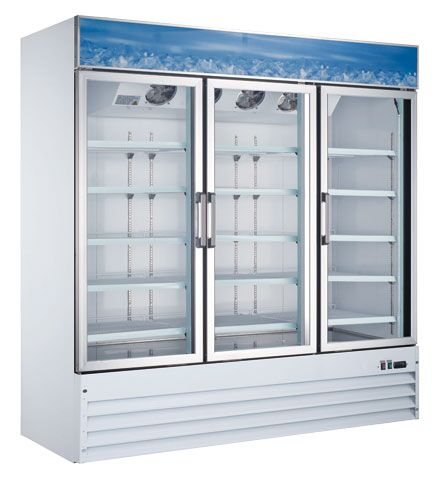

Spacious glass door freezer crafted with enduring quality. Sleek design features innovative technology, high-efficiency components, and the most attractive product display in its category.
Thank you for viewing our quality commercial restaurant equipment online at The Foodservice Equipment Depot. We are your trusted food equipment supply store in Canada based out of Calgary, AB. The FED has answers for your how-to’s, product guides, specifications, drawings, discount pricing and shipping questions. If you are wanting to buy used or new food equipment in stock at our warehouse, please contact us today for a quote.
https://omcan.com/wp-content/uploads/assets/SPEC%20SHEETS/50087_3_Glass_Door_Display_Freezer.pdf

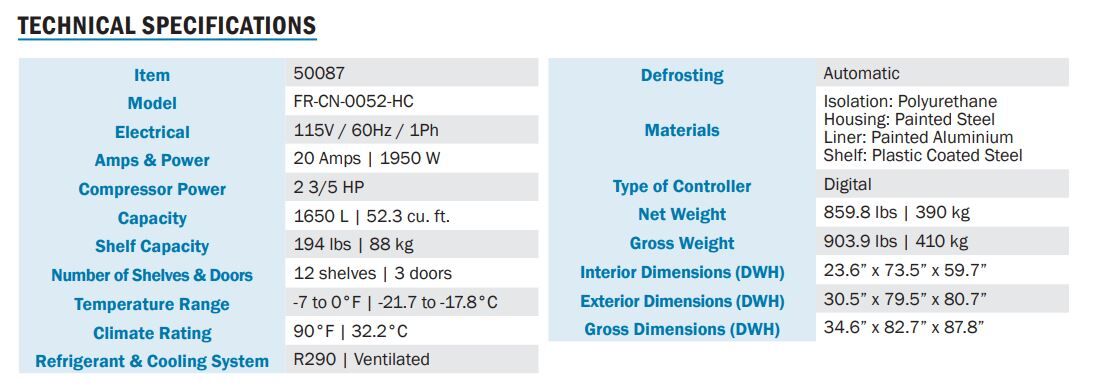

ELECTRICAL: 115V / 60Hz / 1Ph
AMPS: 20 Amps
POWER: 1950 W
COMPRESSOR POWER: 2 3/5 HP
CAPACITY: 1650 L / 52.3 cu. ft.
SHELF CAPACITY: 194 lbs / 88 kg
NUMBER OF SHELVES & DOORS: 12 shelves / 3 doors
TEMPERATURE RANGE: -7 to 0°F / -21.7 to -17.8°C
REFRIGERANT: R290
COOLING SYSTEM: Ventilated
DEFROSTING: Automatic
ISOLATION MATERIAL: Polyurethane
HOUSING MATERIAL: Painted Steel
LINER HOUSING: Painted Aluminum
SHELF HOUSING: Plastic Coated Steel
TYPE OF CONTROLLER: Digital
NET WEIGHT: 859.8 lbs / 390 kg
GROSS WEIGHT: 903.9 lbs / 410 kg

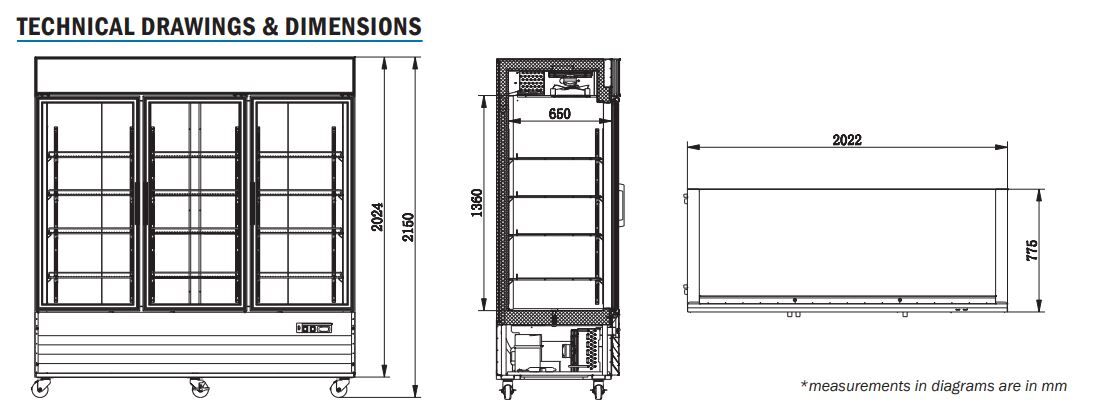

INTERIOR DIMENSIONS (DWH): 23.6″ x 73.5″ x 59.7″ / 600 x 1868 x 1517 mm
EXTERIOR DIMENSIONS (DWH): 30.5″ x 79.5″ x 80.7″ / 775 x 2020 x 2050 mm
GROSS DIMENSIONS (DWH): 34.6″ x 82.7″ x 87.8″ / 880 x 2100 x 2230 mm
>>This equipment is intended for use in an indoor environment where ambient temperature and humidity do not exceed 24°C / 75°F and 55% relative humidity.
INSTRUCTION MANUAL
https://omcan.com/wp-content/uploads/assets/INSTRUCTION%20MANUALS/50032-51032-52032-53032-50033-51033-50035-51035-50036-50037-50052-51052-50029-50030-50031-50075-50087_refrigeration.pdf
