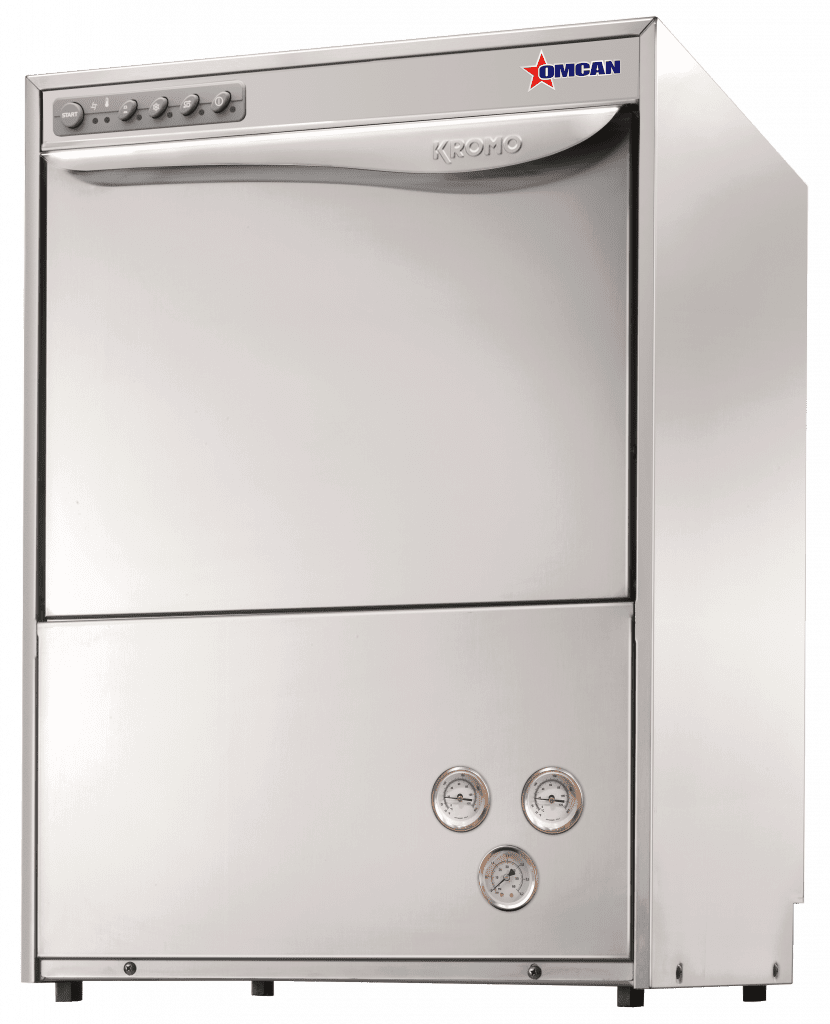

Introducing the Omcan Kromo Dupla-50-USA High-Temperature Undercounter Dishwasher, the ultimate solution for your commercial dishwashing needs. This powerful machine combines cutting-edge technology with a compact design to bring you exceptional efficiency and sparkling results, all while fitting snugly beneath your counter.
Features That Redefine Efficiency:
Robust Construction: Built to withstand the rigors of a demanding commercial kitchen, the Omcan Kromo Dupla-50-USA features a double-walled AISI 304 stainless steel structure. This not only ensures durability but also enhances insulation for quieter operation and energy efficiency.
Dual Wash Cycles: With the flexibility of two wash cycles, this dishwasher adapts to your specific needs. Whether it’s lightly soiled glassware or heavily soiled pots and pans, you can count on this machine to deliver spotless results every time.
Triple Protection System: Safety and reliability are paramount. The integrated overflow and drain pipes provide a triple layer of protection for the wash pump, minimizing the risk of damage and maximizing the longevity of your investment.
Anti-Drop Roof Panel: The anti-drop roof panel ensures that water and detergent are contained within the machine, preventing any unwanted drips or spills outside the unit and maintaining a clean and organized workspace.
Enhanced Security: Your staff’s safety is of utmost importance. With the door security microswitch, the dishwasher will only operate when the door is securely closed, preventing accidents and ensuring smooth, incident-free operation.
Optimized Basket Support: Pressed basket supports guarantee secure placement of your dishware, preventing slipping during the wash cycle. This not only ensures thorough cleaning but also helps protect your valuable glassware and dinnerware.
Efficient Wash and Rinse: Split wash and rinse arms provide comprehensive coverage for all your dishes, ensuring that every nook and cranny is thoroughly cleaned, leaving no room for stubborn residue.
Built-in Rinse-Aid Dispenser: For that extra sparkle, this dishwasher comes equipped with a built-in rinse-aid dispenser. Say goodbye to streaks and water spots on your glassware.
Fully Automatic Process: Simplify your dishwashing routine. This unit offers a fully automatic process, from washing to rinsing, guaranteeing consistently high-quality results with minimal manual intervention.
Standard Drain Pump: The inclusion of a standard drain pump ensures efficient wastewater removal, allowing for versatile installation options and further enhancing the convenience of this undercounter dishwasher.
The Omcan Kromo Dupla-50-USA High-Temperature Undercounter Dishwasher is a game-changer in commercial dishwashing. Its superior design, advanced features, and focus on safety and efficiency make it an invaluable addition to any restaurant, bar, or commercial kitchen. Embrace the future of dishwashing technology with this exceptional undercounter dishwasher.

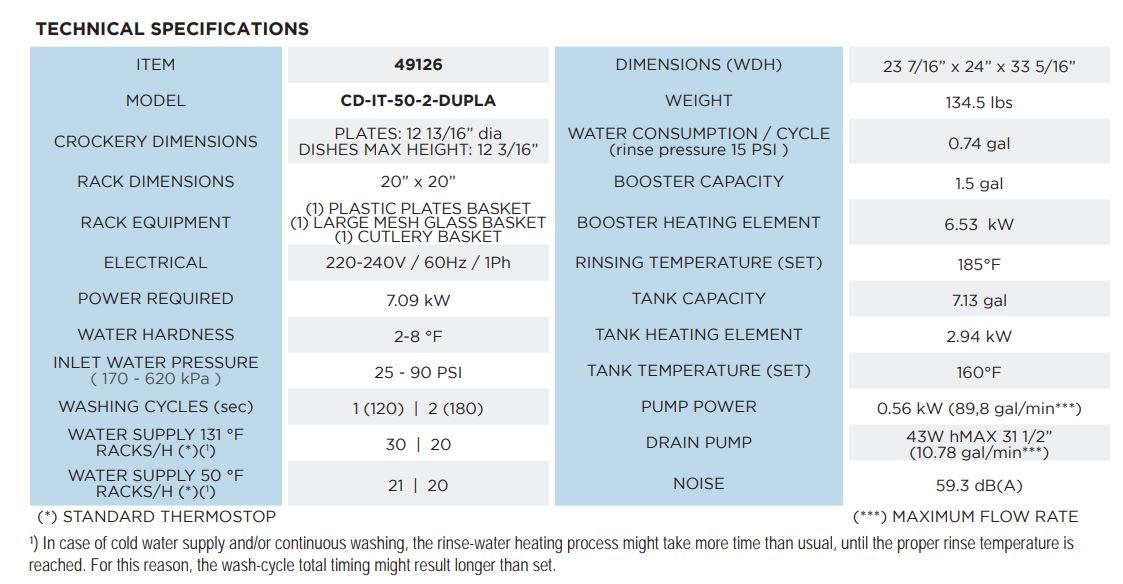

SPECIFICATIONS
ITEM: 49126
MODEL: DUPLA 50 USA
CROCKERY DIMENSIONS: PLATES: 12 13/16” dia
DISHES MAX HEIGHT: 12 3/16”
RACK DIMENSIONS: 20” x 20”
RACK EQUIPMENT: (1) PLASTIC PLATES BASKET
(1) LARGE MESH GLASS BASKET
(1) CUTLERY BASKET
ELECTRICAL: 220-240V / 60Hz / 1Ph
POWER REQUIRED: 7.09 kW
WATER HARDNESS: 2-8 °F
INLET WATER PRESSURE (170 – 620 kPa): 25 – 90 PSI
WASHING CYCLES (sec): 1 (120) | 2 (180)
WATER SUPPLY 131 °F (RACKS/H (*)(1)): 30 | 20
WATER SUPPLY 50 °F (RACKS/H (*)(1)): 21 | 20
WATER CONSUMPTION / CYCLE (rinse pressure 15 PSI ): 0.74 gal
BOOSTER CAPACITY: 1.5 gal
BOOSTER HEATING ELEMENT: 6.53 kW
RINSING TEMPERATURE (SET): 185°F
TANK CAPACITY: 7.13 gal
TANK HEATING ELEMENT: 2.94 kW
TANK TEMPERATURE (SET): 160°F
PUMP POWER: 0.56 kW (89,8 gal/min***)
DRAIN PUMP: 43W hMAX 31 1/2” (10,78 gal/min***)
NOISE: 59.3 dB(A)

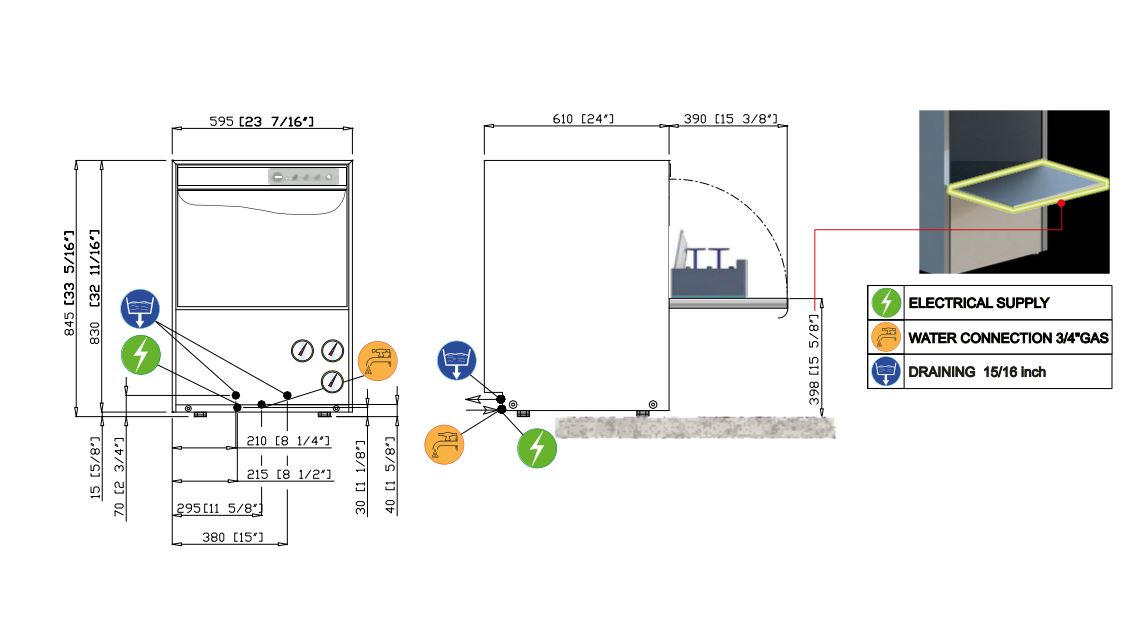

DIMENSIONS (WDH): 23 7/16” x 24” x 33 5/16”
WEIGHT: 134.5 lbs
(*) STANDARD THERMOSTOP
(***) MAXIMUM FLOW RATE
Please Note:
In case of cold water supply and/or continuous washing, the rinse-water heating process might take more time than usual, until the proper rinse temperature is reached. For this reason, the wash-cycle total timing might result longer than set.
