SS Fryer Resfab Electric Floor Deep Fryer MB-85B-iF CAD $10,998.00 OR $558/mo
deep fryer Resfab Electric Ventless Floor Deep Fryer with Auto-Lift MB-85ATV-iF CAD $35,998.00 OR $1827/mo

Resfab Double Vat Electric Floor Deep Fryer with Autolift MB-502AT-iF

CAD $33,998.00 OR $1726/mo

green and white straight oval with free shipping and *most major Canadian Cities * in white letters

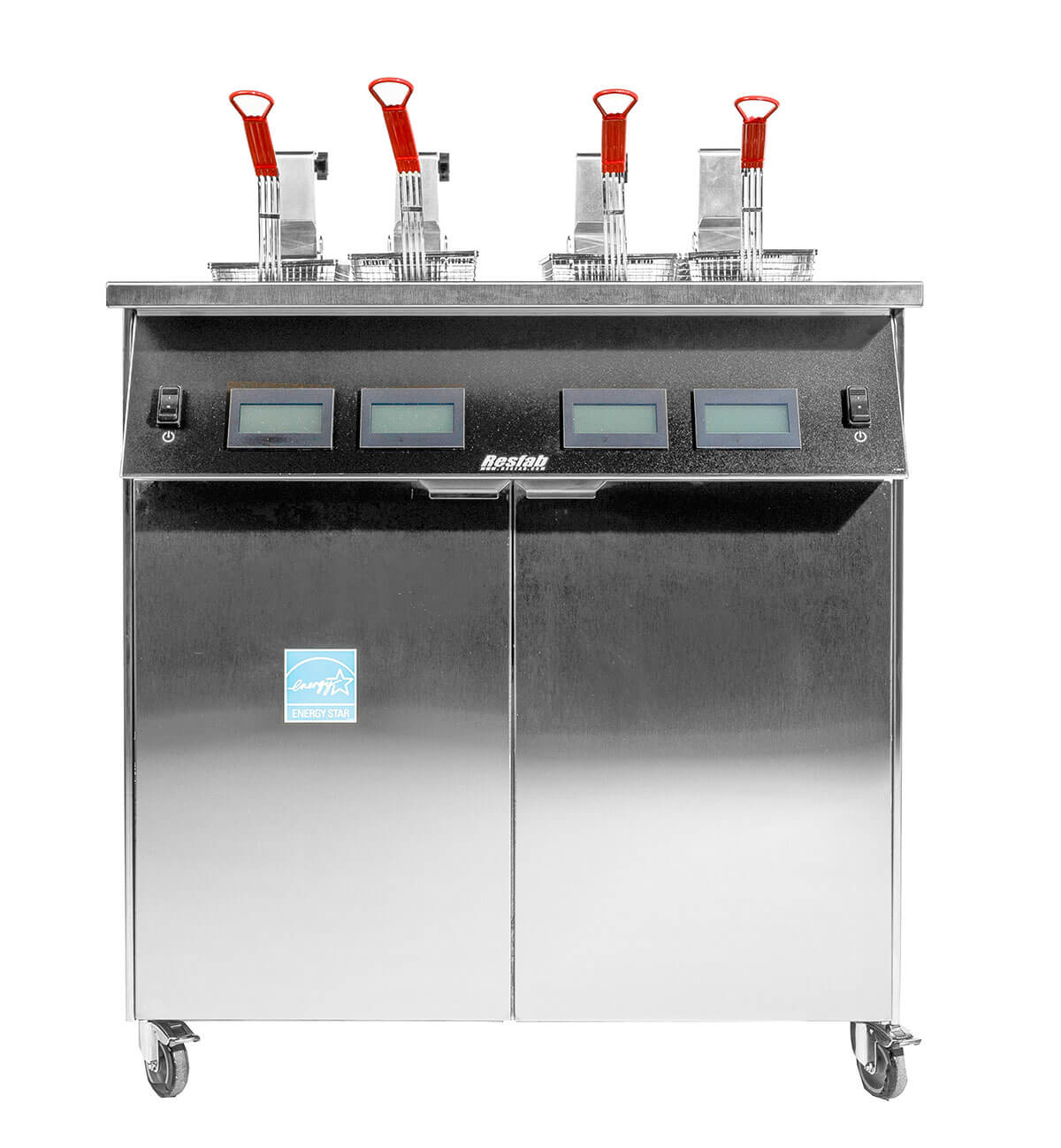

Resfab Double Vat Electric Floor Fryer with Autolift MB-502AT-iF Features:

Multi-Basket Configurations:

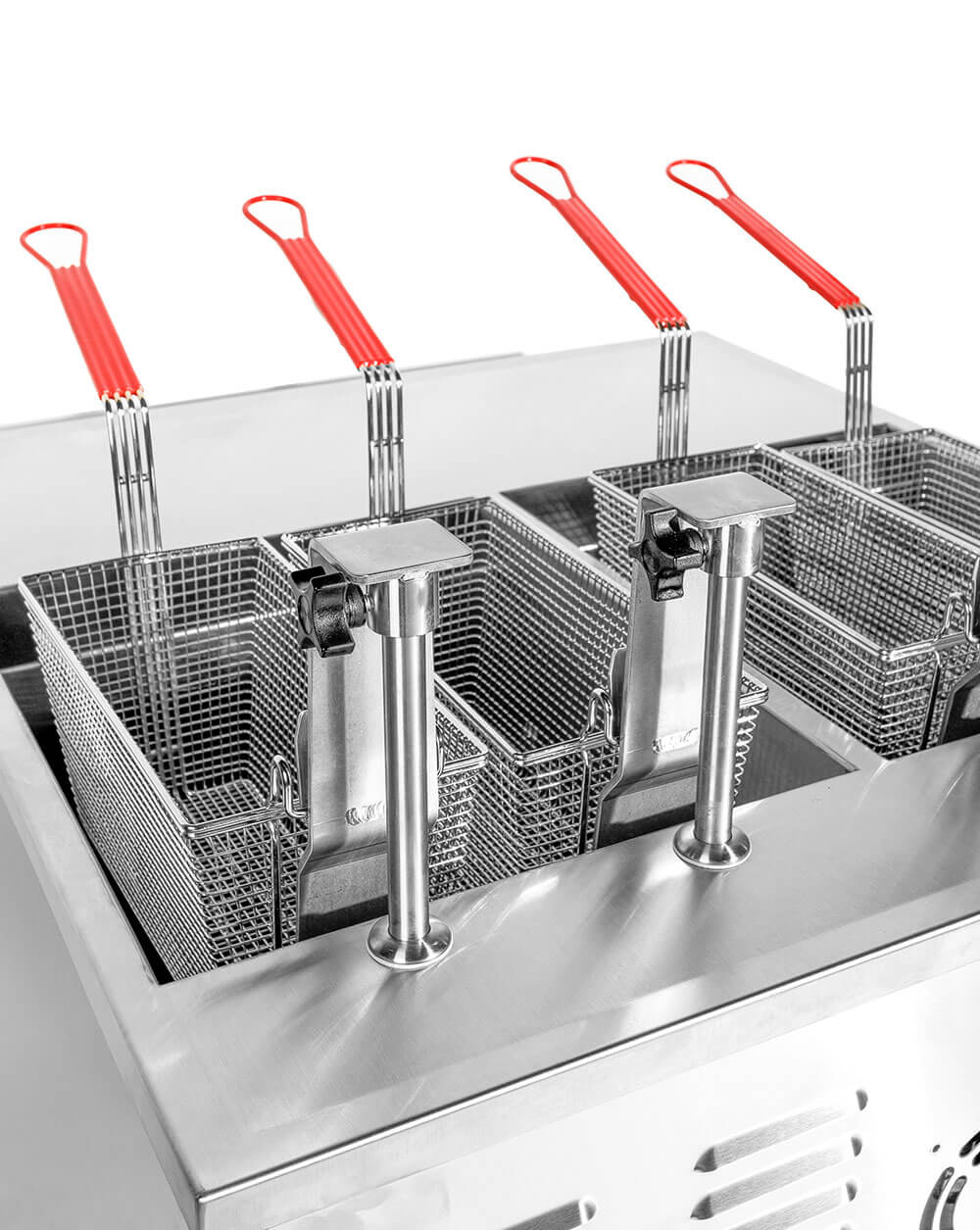

  • The Auto-Lift Systems allows for the use of one large basket or two independently operating half-size baskets.

Idle Mode Saves Energy & Increases Oil Life Span:

  • Between loads and or busy periods, an idle mode allows the operator to be in a “stand-by” position leading to significant savings in energy consumption, preserves oil quality and extends oil life.

Energy Savings “Sleep Mode”:

  • Fryer automatically goes into Sleep Mode at 200º after 30 minutes of non-use.

Zero recovery Time:

  • The operator can fry batch after batch without waiting for the fryer temperature to recover.

No Manipulation of Hot Parts:

  • The filtration tank slides into the fryer and automatically connects to the pump pipe, and the pump reset is accessible since there are no panels to remove.
    The risk of injury is greatly reduced.

Easy and Safe Transportation and Removal of Shortening/Oil:

  • A removable carrying handle attaches to the filter pan allowing for safe removal and transport of oil (which comes equipped with casters).

SHIPPING: Requires 7 to 10 Business Days



QUOTE THIS PRODUCT
SS Floor Fryer
Resfab Double Vat Electric Floor Deep Fryer with Autolift MB-502AT-iF
CAD $33,998.00 OR $1726/mo

    The MB-502AT is a Multi-Basket, High-Volume Auto-Lift Fryer with Touch Screen Controls, Built-in Filtration, and numerous features. Resfab’s fryers help streamline and simplify operations while ensuring product consistency and safety.

    Thank you for viewing our quality commercial restaurant equipment online at The Foodservice Equipment Depot. We are your trusted food equipment supply store in Canada based out of Calgary, AB. The FED has answers for your how-to’s, product guides, specifications, drawings, discount pricing and shipping questions. If you are wanting to buy used or new food equipment in stock at our warehouse, please contact us today for a quote.[/vc_column_text][/vc_column][/vc_row]

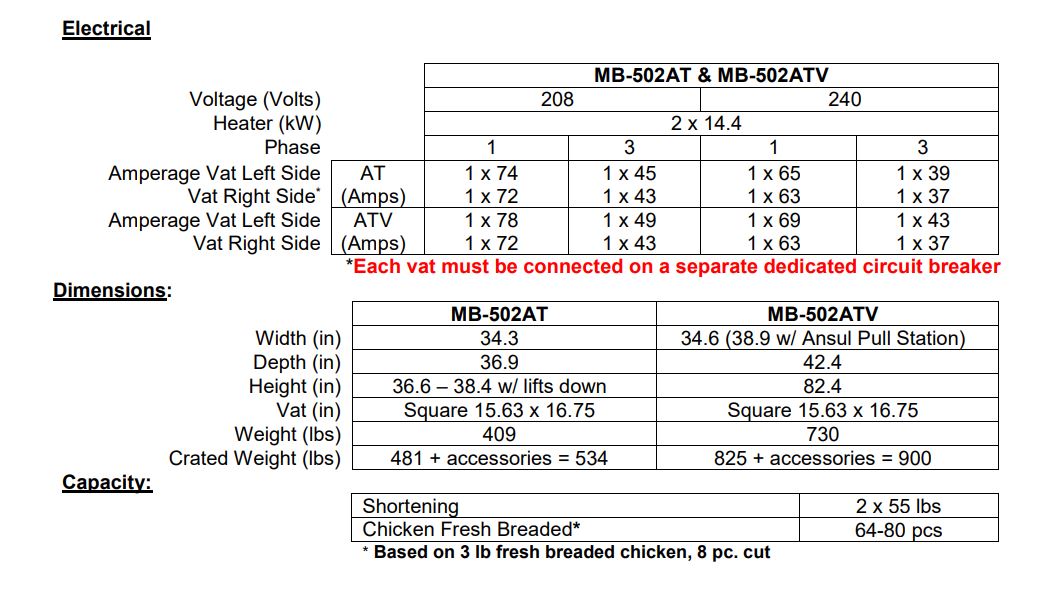

    Download Spec Document

    Electrical
    Voltage 208 240
    Heater KW 2 x 14.4
    Phase 1 3 1 3
    Amperage* 1 x 74 Amps
    1 x 72 Amps 1 x 45 Amps
    1 x 43 Amps 1 x 65 Amps
    1 x 63 Amps 1 x 39 Amps
    1 x 37 Amps
    *Each vat must be connected on a separate dedicated circuit breaker

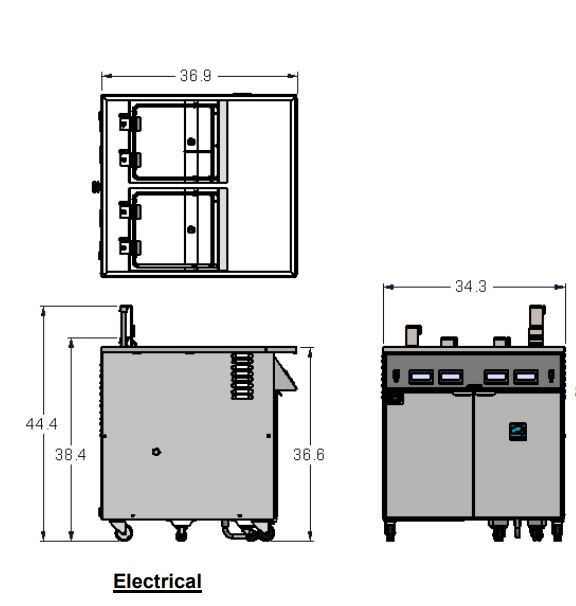

    Dimensions
    Width (in) 34.3
    Depth (in) 36.9
    Height (in) 36.6 – 38.4 w/ elevators down
    Vat (in) Square 15.63 x 16.75
    Weight (lbs) 409 lbs
    Crated Weight (lbs) 481 + accessories = 534 lbs

    Capacity
    Shortening 2 x 55 lbs
    Chicken Fresh Breaded* 64-80 pcs
    * Based on 3 lb fresh breaded chicken, 8 pc. cut

    DOWNLOAD INSTRUCTION MANUAL
