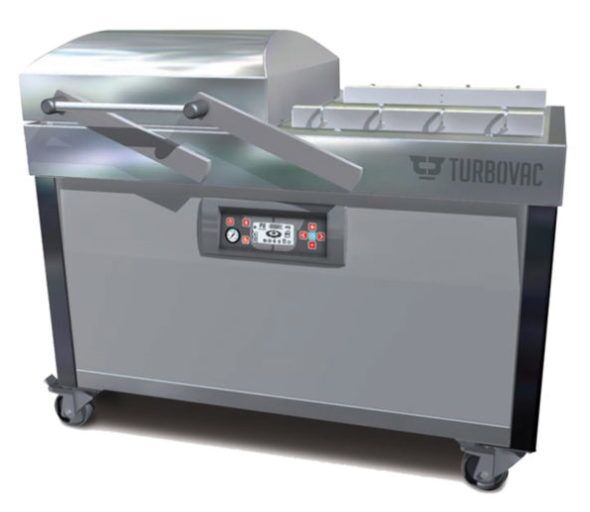

Our new range of double chambers are reliable, durable and offer flexibility in volume production. Our machines can be equipped with semi-automatic or automatic cover movement for an even more efficient production. The double chambers can also be equipped with an external pump.

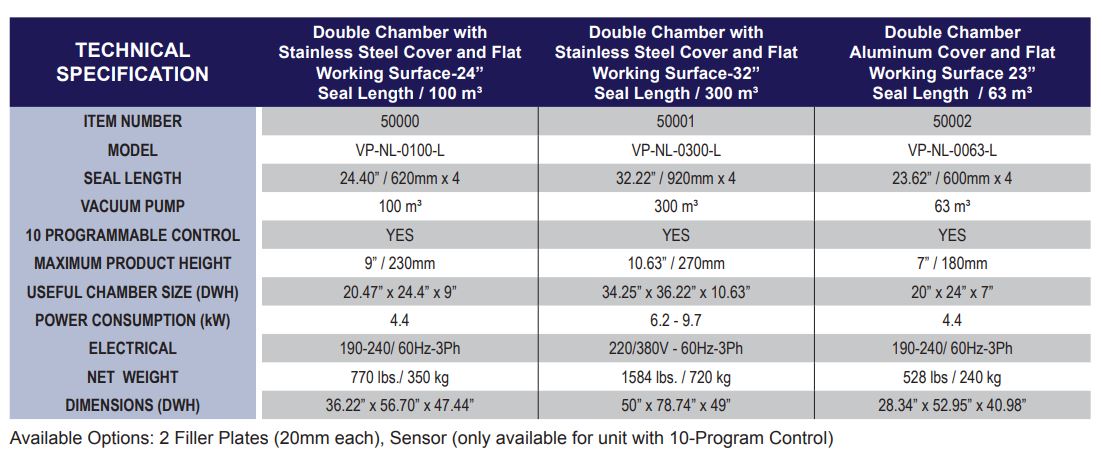

SPECIFICATIONS
SEAL LENGTH: 32.22″ / 920mmx 4
BUSCH VACUUM PUMP: 300 m³
10 PROGRAMMABLE CONTROL: Yes
MAXIMUM PRODUCT HEIGHT: 10.63″ / 270mm
USEFUL CHAMBER SIZE (DWH): 34.25″ x 36.22″ x 10.63″
POWER: 8.3-13 HP / 6.2 – 9.7 kW
ELECTRICAL: 220/380V – 60Hz-3Ph
DIMENSIONS (DWH): 50″ x 78.74″ x 49″
WEIGHT: 1584 lbs.
BUSCH VACUUM PUMP: 300 m³
10 PROGRAMMABLE CONTROL: Yes
MAXIMUM PRODUCT HEIGHT: 10.63″ / 270mm
USEFUL CHAMBER SIZE (DWH): 34.25″ x 36.22″ x 10.63″
POWER: 8.3-13 HP / 6.2 – 9.7 kW
ELECTRICAL: 220/380V – 60Hz-3Ph
DIMENSIONS (DWH): 50″ x 78.74″ x 49″
WEIGHT: 1584 lbs.
Optional Parts & Accessories
FILTER PLATES
ITEM: 41512
25mm (8pcs.)
SENSOR
ITEM: 41513
INSTRUCTION MANUAL
