3 Product ranges:
1. Transparent cover, visual control, for example packaging moist and liquid products.
2. All stainless steel heavy duty industrial range, easy to clean flat working surface.
3. Aluminum range, an excellent price/quality value.

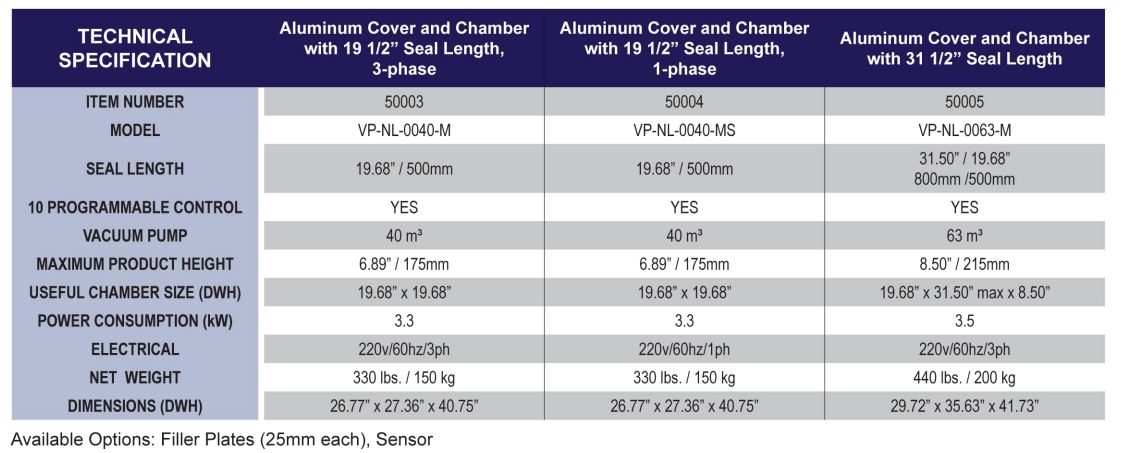

SPECIFICATIONS
SEAL LENGTH: 19.68″ / (500mm)
10 PROGRAMMABLE CONTROL: Yes
BUSCH VACUUM PUMP: 40 m³
MAXIMUM PRODUCT HEIGHT: 6.89″ / 175mm
USEFUL CHAMBER SIZE (DWH): 19.68″ x 19.68″
POWER: 4.43 HP / 3.3 kW
ELECTRICAL: 220/60Hz/3Ph
DIMENSIONS (DWH): 26.77″ x 27.36″ x 40.75″
WEIGHT: 330 lbs.
10 PROGRAMMABLE CONTROL: Yes
BUSCH VACUUM PUMP: 40 m³
MAXIMUM PRODUCT HEIGHT: 6.89″ / 175mm
USEFUL CHAMBER SIZE (DWH): 19.68″ x 19.68″
POWER: 4.43 HP / 3.3 kW
ELECTRICAL: 220/60Hz/3Ph
DIMENSIONS (DWH): 26.77″ x 27.36″ x 40.75″
WEIGHT: 330 lbs.
Optional Parts & Accessories
FILTER PLATES
ITEM: 41481
25mm (3pcs.)
SENSOR
ITEM: 41513
INSTRUCTION MANUAL
