Characteristics and Advantages:
- 63 racks per hour
- 0.5gal (2L) of water per rack
- Hot water sanitation
- Included atmospheric booster to raise incoming cold water to a constant temperature of min 187°F (86°C) and pressure throughout the rinsing cycle. No external booster is needed.
- Energy Star 2.0 certified

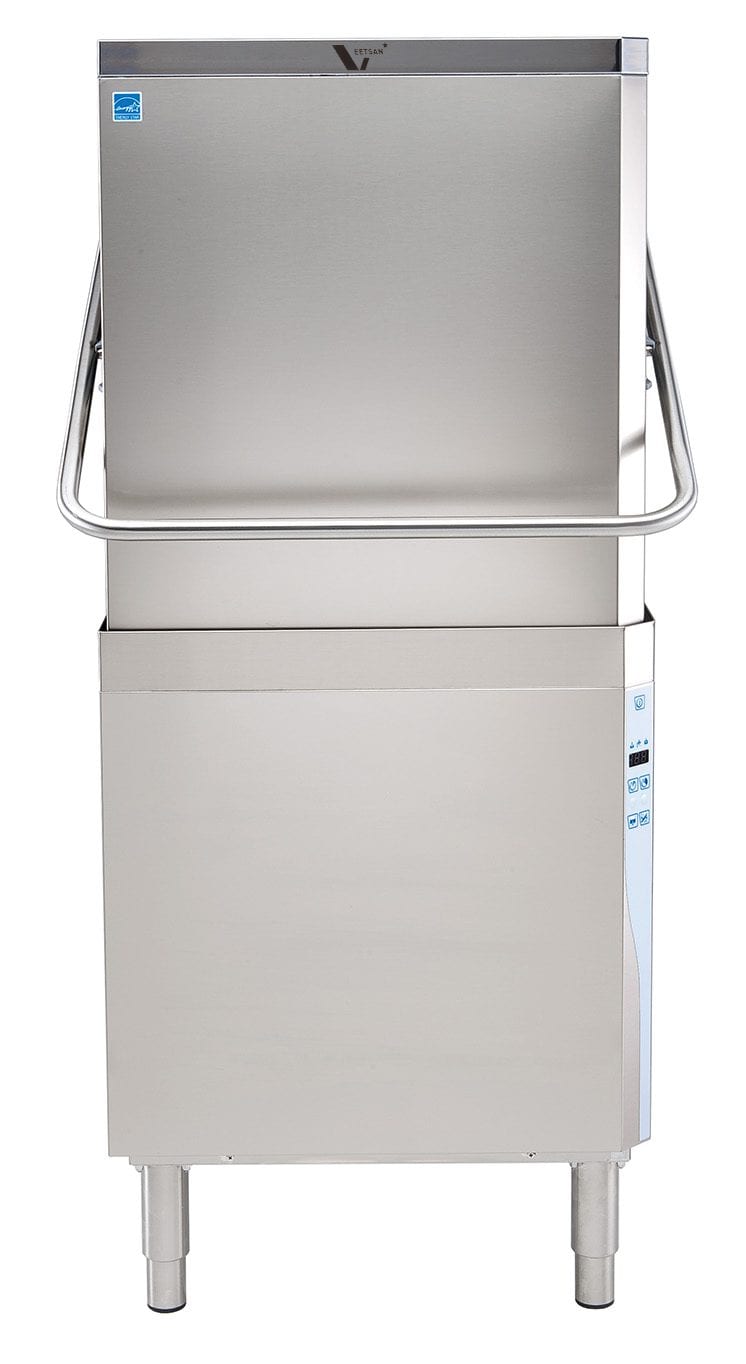

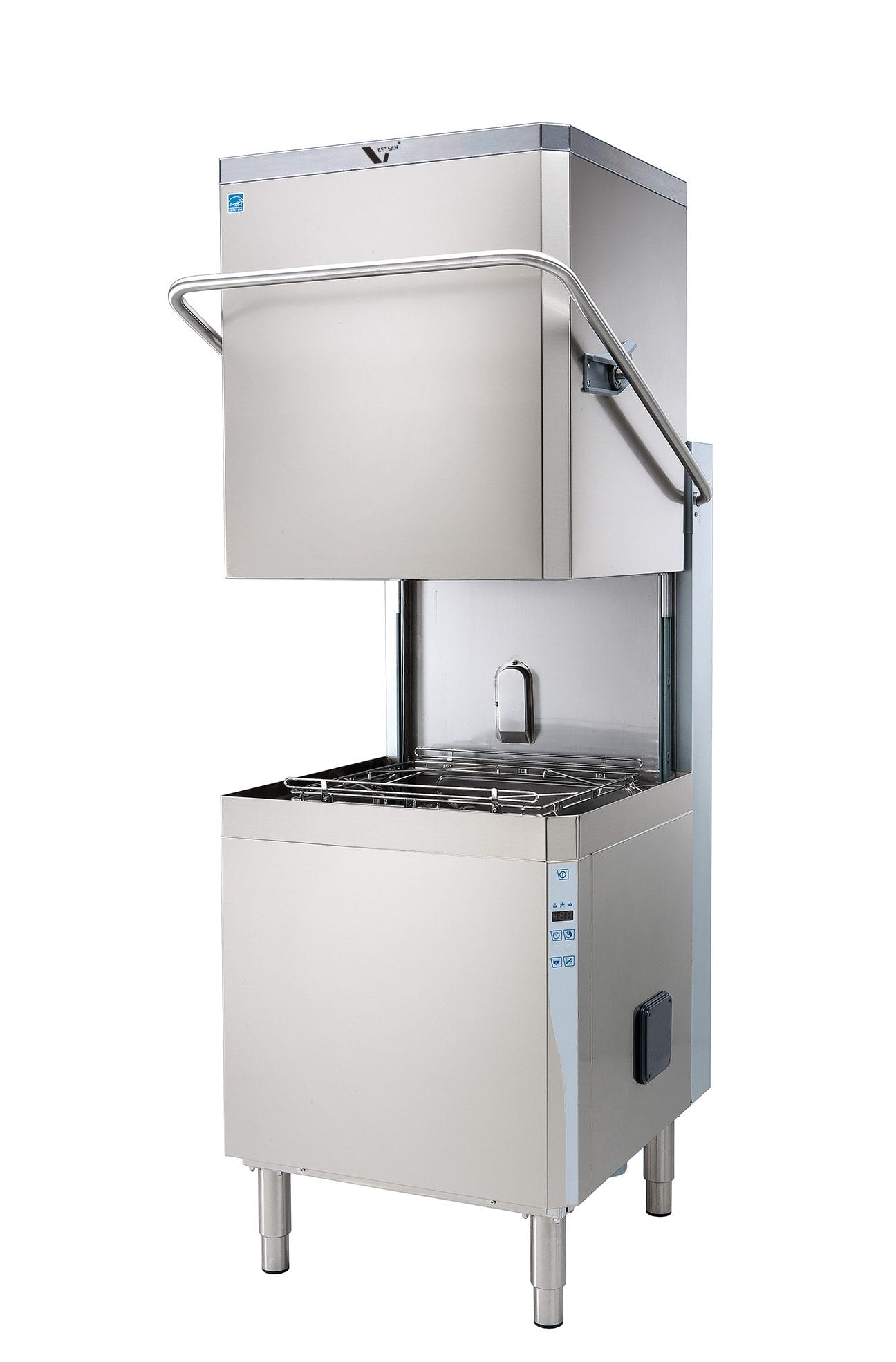

- Full stainless steel AISI304 construction with double skin insulated hood
- Electronic control with temperature display, self-diagnostics for serviceability

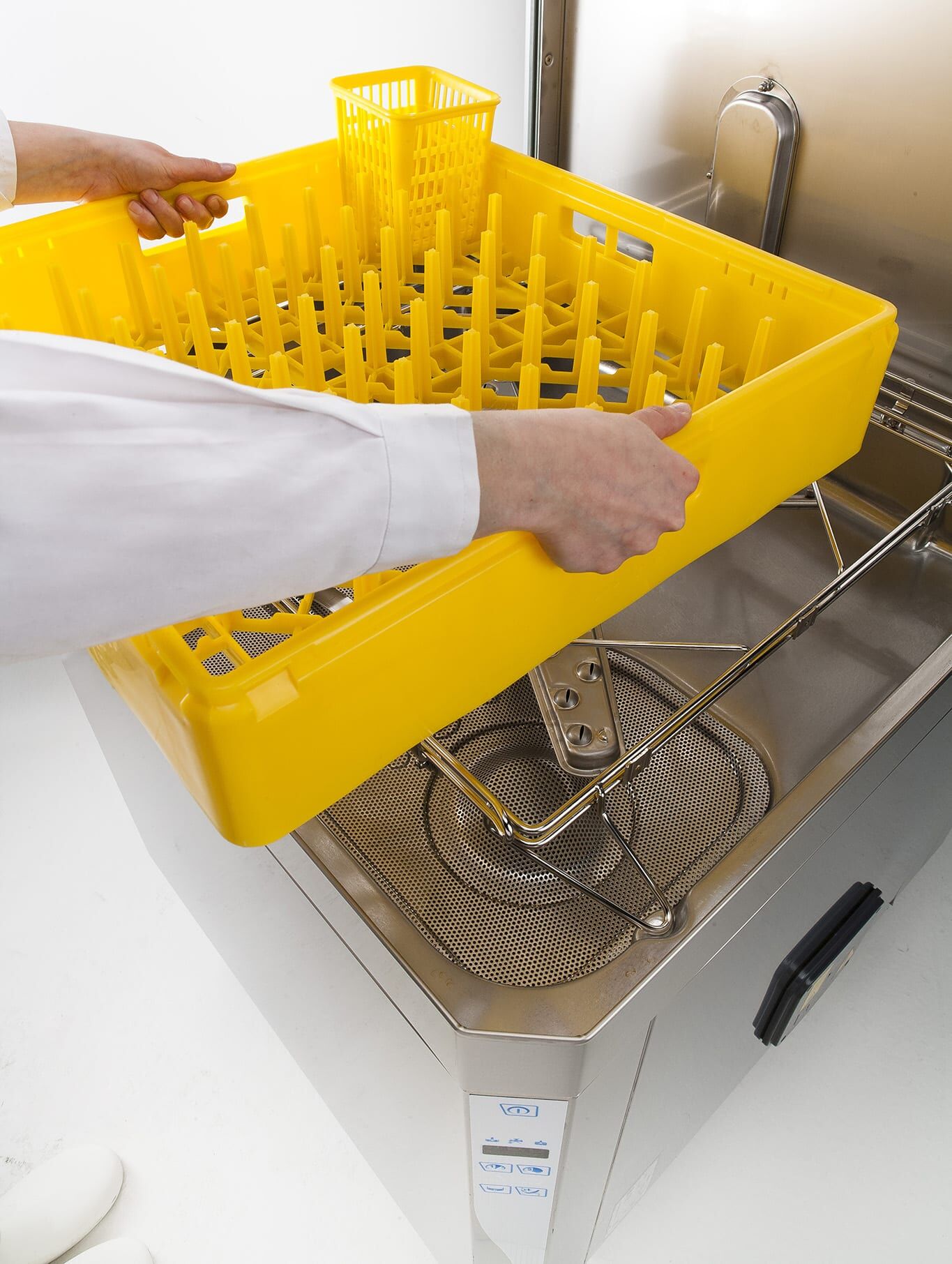

- Deep drawn stainless steel tank with round corners for easy to clean

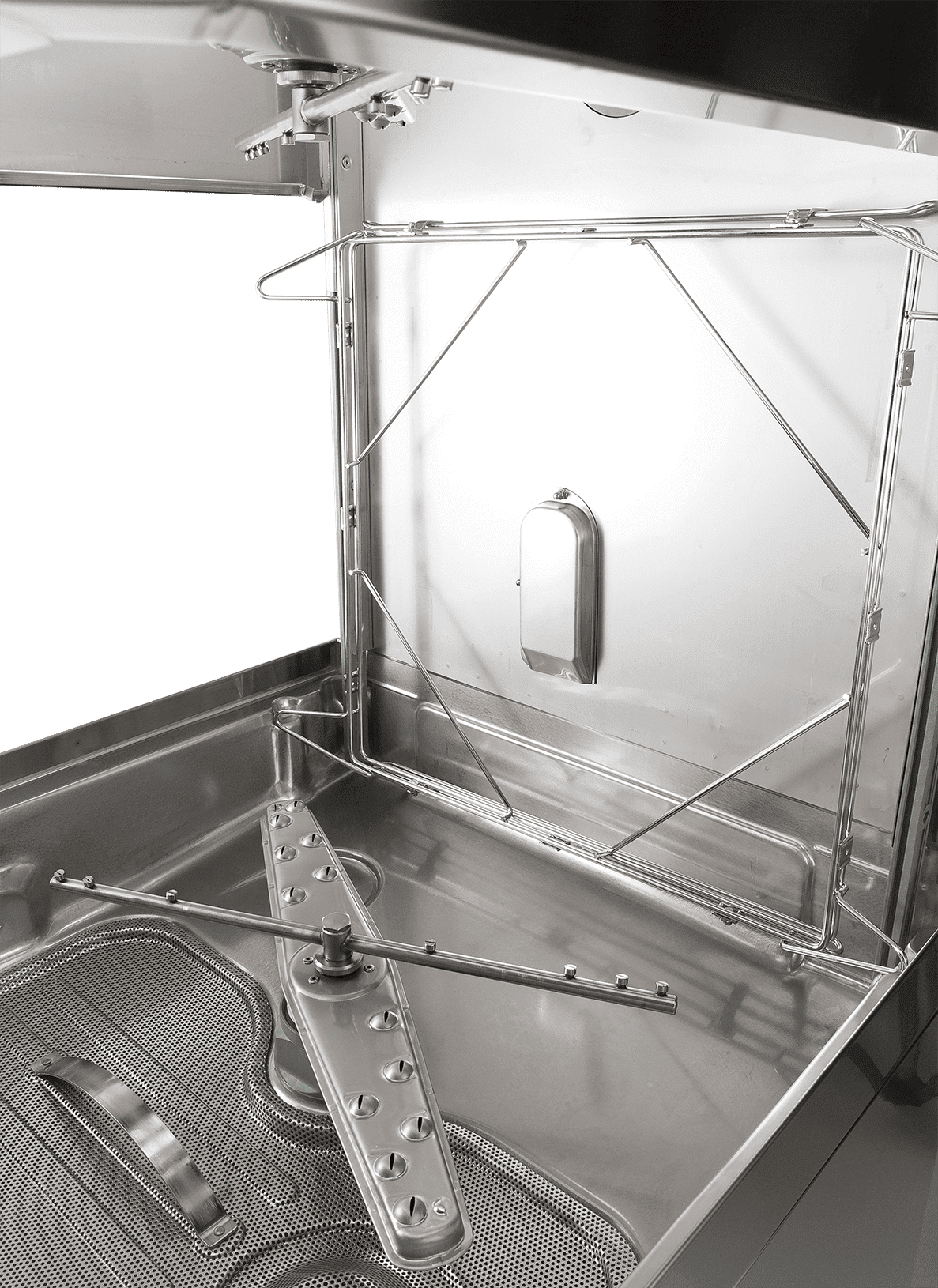

- Inclined wash arms and ceiling to avoid washed water drops containing detergent on clean wares after the rinsing phase
- Included detergent and rinse aid pumps for automatic initial and continuous cycle loading ensure perfect results
- Revolving interchangeble stainless steel upper and lower wash/ rinse arms
- Stainless steel tank filter easy removable for cleaning
- Automatic fill of wash tank
- Automatic self-cleaning cycle
- Vertical self-draining wash pump
- 17-5⁄16” door opening
- Single phase electrical connection
TECHNICAL SHEET
Racks per hour: 63*
Dishes per hour: 1134*
Wash temperature (MIN): 167°F (75°C)
Rinse temperature (MIN): 187°F (86°C)
N° of cycles: 2
Duration cycle – NSF: 57/150 sec.

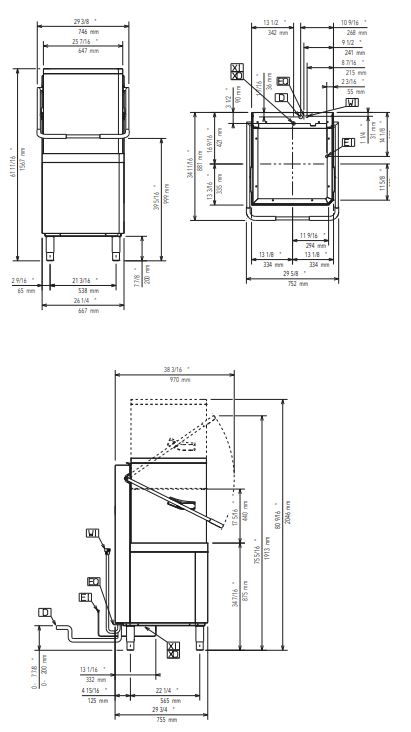

External dimensions, Width: 29 5
⁄8” (752 mm)
External dimensions, Depth: 29 3
⁄4” (755 mm)
External dimensions, Height: 61 11⁄16” (1567 mm)
Net weight: 280 lbs (127 kg)
Shipping width: 28 13⁄16” (732 mm)
Shipping depth: 32 1
⁄4” (819 mm)
Shipping height: 68 1
⁄8” (1730 mm)
Shipping weight: 317 lbs (144 kg)
Shipping volume: 36.62 ft³ (1.04 m³)
Noise level: <63 dBA
* According to market standard, the productivity is declared at an inlet water supply
temperature of 122°F (50°C) and does not include loading/unloading time.
Dishes per hour: 1134*
Wash temperature (MIN): 167°F (75°C)
Rinse temperature (MIN): 187°F (86°C)
N° of cycles: 2
Duration cycle – NSF: 57/150 sec.
External dimensions, Width: 29 5
⁄8” (752 mm)
External dimensions, Depth: 29 3
⁄4” (755 mm)
External dimensions, Height: 61 11⁄16” (1567 mm)
Net weight: 280 lbs (127 kg)
Shipping width: 28 13⁄16” (732 mm)
Shipping depth: 32 1
⁄4” (819 mm)
Shipping height: 68 1
⁄8” (1730 mm)
Shipping weight: 317 lbs (144 kg)
Shipping volume: 36.62 ft³ (1.04 m³)
Noise level: <63 dBA
* According to market standard, the productivity is declared at an inlet water supply
temperature of 122°F (50°C) and does not include loading/unloading time.
