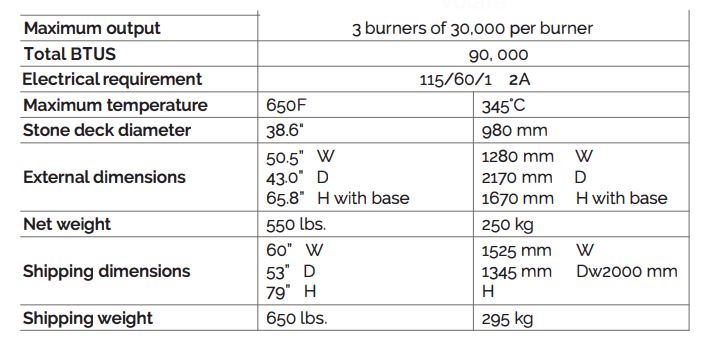

SPECIFICATIONS
Maximum output: 3 burners of 30,000 per burner
Total BTUS: 90, 000
Electrical requirement: 115/60/1 2A
Maximum temperature: 650F / 345·c
Stone deck diameter: 38.6′ / 980mm

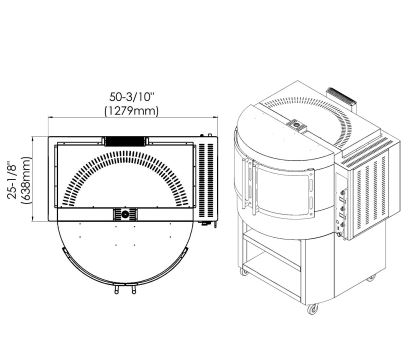

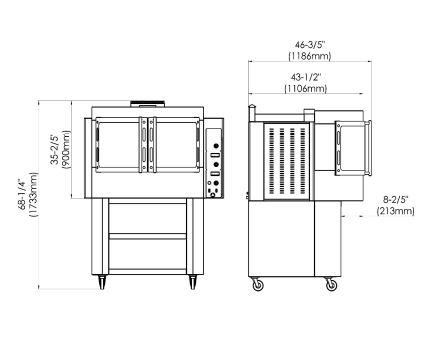

External dimensions: 50.5″ w x 43.0″ D x 65.8″ H with base / 1280 mm w x 2170 mm D x 1670mm H with base
Net weight: 550 lbs. / 250 kg
Shipping dimensions: 60″ w x 53″ D x 79″ H / 1525 mm w x 1345mm D 2000 mm H
Shipping weight: 650 lbs. / 295 kg
Warranty: 12 months parts & labor.
Gas Connection: 3/4″ NPT on the right hand rear of the appliance. The pressure regulator (supplied) is to be connected here by the installer.
Electrical Requirement: 120 Volts AC, 2 amps
Gas pressure: 4″W.C.- Natural Gas I 10″W.C.- Propane
INSTRUCTION MANUAL
