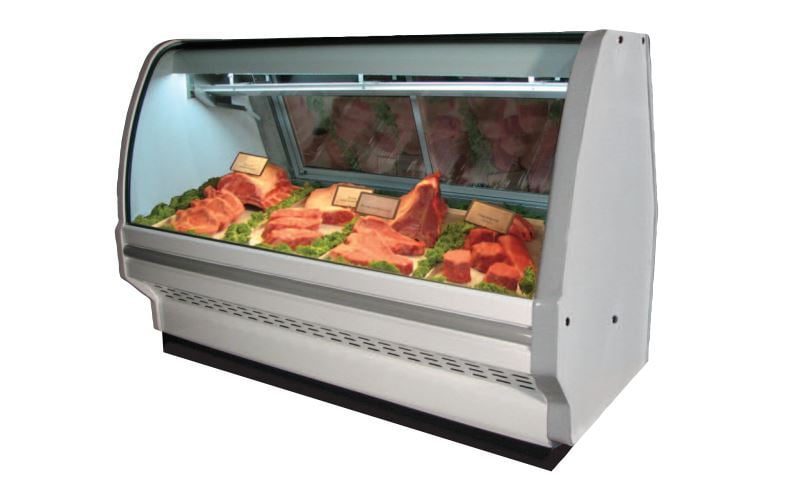

Howard McCray Red Meat Service Case 40″D x 53″ H x 8′ L
CAD $16,868.00 OR $810.74/mo
Howard McCray SC-CMS40E-8C-LED
Please Note These are Special Order Units. Contact us for delivery schedule.
Standard Features:
- CONSTRUCTION
• UL Classified to ANSI/NSF 7
• Foamed in place CFC free foam
• Heavy gauge steel super structure
• Single duty display
• Endless design allows for continuous line up
• Drain is included for cleaning
• Extra wide double bend curved glass
(enhances product display)
INTERIOR
• White, black or stainless steel interior ends
• White interior
• White or stainless steel aluminum floor
(main deck area)
• Epoxy coated main deck shelves
• Air insulated baffle (prevents moisture from
dripping into display area)
EXTERIOR
• Double pane rear removable doors
• Rear door uses the McGlide door system**
(for easy access)
• Removable front grille allows for cleaning
• Removable rear grille for easy servicing
• 1 – 1/2″ removable end panels
• 2″ Gray front bumper
FINISHES
• Grey finish extrusion on doors and door tracks
• White, black, and stainless steel front and ends
• Stainless steel mirror trim
• Stainless steel heavy gauge top – 13-3/4″ W
• Rear of unit is stainless steel brush finish at top
• Bottom rear is white, black or stainless steel aluminum
LIGHTING
• 1 row of LED lighting at top of unit
ELECTRICAL REQUIREMENTS
• 115V with powercord
• Remote models must be hard wired
• UL/CUL listed
• 115V-5AMP general purpose receptacle
(wired separately) – Remote models only
REFRIGERATION
• Copevap system (eliminates need for condensate pan)
• Self-contained – R513A expansion valve system
• Remote – R448A expansion valve system
• Gravity coil located at inside top of unit
• Humidity coil located at inside bottom of unit
• Automatic defrost electronically controlled
(Self-contained units only)
• Electronically control maintains constant temperatures
• Remotes available
DESCRIPTION
40E Series Curved Glass Red Meat Service Case,
Single duty, Endless design for continuous line ups
Self-contained refrigeration-R513A, automatic condensate pan, temperature and defrost electronically controlled;
(2) rows LED lights at top of unit, full length gravity coil system, extra humidity coil at the main deck,
Bright stainless steel 15″ top, white interior & exterior, 2″ gray boston bumper, double pane removable rear glass doors,
UL listed, UL classified to ANSI/NSF7

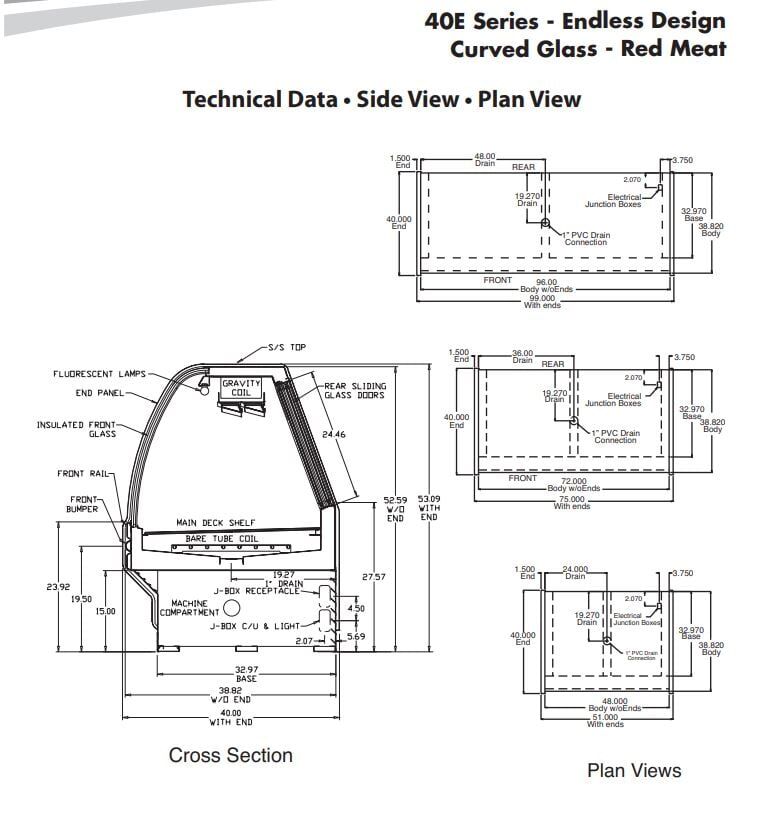

SPECIFICATIONS
